In this review, we will be comparing EVO5.1 and Motion MP10, two Passive Bookshelf speakers from Wharfedale and MartinLogan.
Let's have a brief look at the main features
of Wharfedale EVO5.1 and MartinLogan Motion MP10 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale EVO5.1 | MartinLogan Motion MP10 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1.375" AMT (Ribbon) | 1.0 x 1.4" Folded Motion Ribbon |
|---|
| Woofer | 5" woven Kevlar | 5.5" Woven Fiberglass |
|---|
| Frequency response | 56-24k Hz | 81-25k Hz |
|---|
| Sensitivity | 87 dB | 92 dB |
|---|
| Impedance | 4 ohms | 5 ohms |
|---|
| Power range | 25-100 watts | 20-200 watts |
|---|
| Weight | 8.00kg / 17.6lbs | 4.40kg / 9.7lbs |
|---|
| Dimensions (H x W x D) | 13.4" x 8.7" x 12.8"
340.0 x 220.0 x 285.0mm | 14" x 8" x 5"
356 x 203 x 127mm |
|---|
What size room are the Wharfedale EVO5.1 and MartinLogan Motion MP10 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.1 |
MartinLogan Motion MP10 |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both EVO5.1 and Motion MP10 are 2-way speakers.
Wharfedale EVO5.1MartinLogan Motion MP10
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale EVO5.1 |
MartinLogan Motion MP10 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.375-inch
|
1.0 x 1.4-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5-inch
|
1 x 5.5-inch
|
EVO5.1 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter and 1 x 5" woven Kevlar Woofer with a Crossover frequency at 2700Hz. On the other hand, the Motion MP10 features a 1.0 x 1.4" Folded Motion Ribbon Tweeter and 1 x 5.5" Woven Fiberglass Woofer with a Crossover frequency at 2100Hz.
Frequency Response
EVO5.1 has a frequency range of 56-24k Hz whereas Motion MP10 has a frequency range of 81-25k Hz. With a minimum frequency of 56Hz, the EVO5.1 can go significantly deeper on the low side and provide stronger bass compared to the Motion MP10's min frequency of 81Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.1 is a 4 ohms speaker compared to the Motion MP10 which has a nominal impedance of 5 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.1 can provide this impedance level.
These two speakers also have different sensitivity levels. EVO5.1 sensitivity is rated at 87 dB and the Motion MP10's is rated at 92 dB. This 5 dB difference makes the MartinLogan Motion MP10 a more sensitive speaker compared to Wharfedale EVO5.1, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Motion MP10 can handle a max power of 200 watts RMS, whereas EVO5.1 has a max power handling value of 100 watts RMS, 100 watts less than the Motion MP10.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier — change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
EVO5.1 features Custom 5-way binding posts type posts and Motion MP10 has a Custom 5-way binding posts type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.1's Binding post terminals
MartinLogan Motion MP10's Custom 5-way binding posts terminals
Cabinet Type and Port Position
EVO5.1 has a bottom firing port whereas Motion MP10 has a rear firing ports. Wharfedale EVO5.1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to MartinLogan Motion MP10 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.1's and MartinLogan Motion MP10's external dimensions. Wharfedale EVO5.1 has external dimensions of 340.0 x 220.0 x 285.0mm (13.4" × 8.7" × 12.8") whereas MartinLogan Motion MP10 has external dimensions of 356 x 203 x 127mm (14inch x 8inch x 5inch).
MartinLogan Motion MP10 is 17mm narrower and 158mm less deeper than Wharfedale EVO5.1 but it is also 16mm taller.

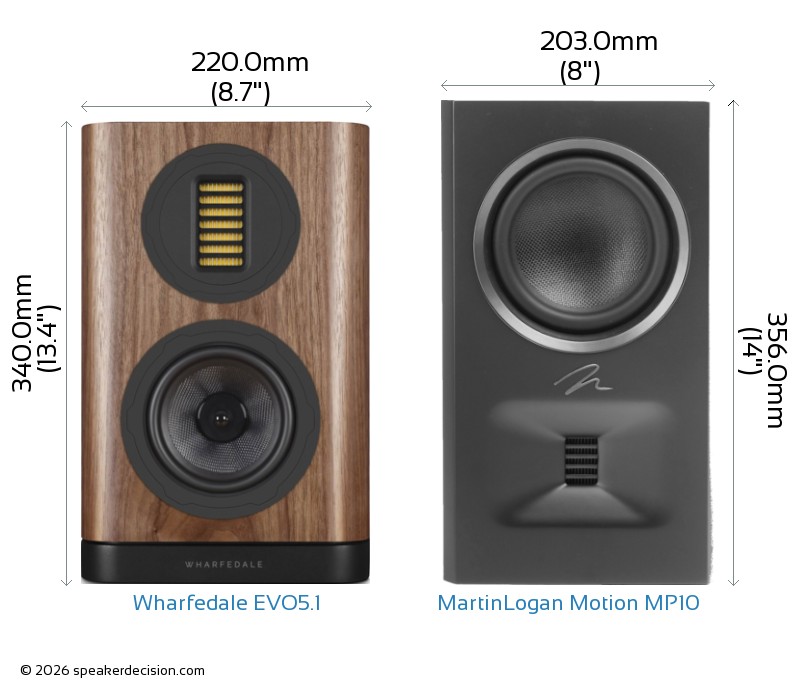

Below you can see the front view size comparison of Wharfedale EVO5.1 and MartinLogan Motion MP10 in scale.
Comparison image of Wharfedale EVO5.1 and MartinLogan Motion MP10 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.1 is approximately 627.0cm2 / 97.2inch2 and base area of the MartinLogan Motion MP10 is approximately 257.8cm2 / 40.0inch2. The EVO5.1 requires 143% more surface area than the Motion MP10 which gives it a small disadvantage on placement in tight spaces.
Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale EVO5.1 and MartinLogan Motion MP10 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO5.1 weighs 8.00kg / 17.6lbs and the MartinLogan Motion MP10 weighs 4.40kg / 9.7lbs. This makes the EVO5.1 82% heavier than the Motion MP10.
Here is a comparison of how EVO5.1 and Motion MP10's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO5.1?
Here are the items that are included inside the box of EVO5.1:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
 Low Frequency Response |
56 Hz
vs
81 Hz
|
Generates deeper bass |
 Height |
340mm
vs
356mm
|
Easier to fit in smaller spaces |
 Max Input Power |
200 watts
vs
100 watts
|
Handle more power from your amplifier |
 Sensitivity |
92 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
5 ohms
vs
4 ohms
|
Less selective with amplifiers |
|
Woofer Size |
5.5 inches
vs
5 inches
|
Larger woofer |
 High Frequency Response |
25k Hz
vs
24k Hz
|
Generates higher frequency |
 Mounting Bracket |
Yes
vs
No
|
Allows mounting on walls |
 Base Surface Area |
257cm2
vs
627cm2
|
Takes less floor space |
 Price per pair* |
998USD
vs
999USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale EVO5.1 |
MartinLogan Motion® MP10 |
| Brand |
Wharfedale |
MartinLogan |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-100 watts |
20-200 watts |
| Sensitivity |
87 dB |
92 dB |
| Impedance |
4 ohms |
5 ohms |
| Impedance |
3.4 ohms |
n/a |
| Frequency Response |
56-24k Hz |
81-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5" |
5.5" |
| Woofer Composition |
woven Kevlar |
Woven Fiberglass |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.375" |
1.0 x 1.4" |
| Tweeter Type |
AMT (Ribbon) |
Folded Motion Ribbon |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2700Hz |
2100Hz |
| Firing Direction |
bottom |
rear |
| Suggested Break-in Period |
n/a |
Allow 72 hours of break-in |
Physical Specs |
|
|
| Height |
340.0mm (13.4") |
356.0mm (14") |
| Width |
220.0mm (8.7") |
203.0mm (8") |
| Depth |
285.0mm (11.2") |
127.0mm (5") |
| Weight |
8.00kg (17.6lbs) |
4.40kg (9.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
n/a |
| Available Colors |
Walnut, Grey. Black, White |
Gloss Black, Walnut, and Satin White |
| Mounting Bracket |
No |
Yes |
| Recommended Stand Height |
24-26" |
n/a |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass |
A |
Wharfedale EVO5.1 digs deeper - 56Hz against 81Hz. |
| Amplifier needs |
B |
MartinLogan Motion MP10 is more sensitive (92dB vs 87dB), so it goes louder on the same amplifier. |
| Amplifier match |
B |
MartinLogan Motion MP10 is the easier load at 5 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom |
B |
MartinLogan Motion MP10 takes more power (200W vs 100W) - more in hand in a big room. |
| Size |
depends |
MartinLogan Motion MP10 is easier to place; Wharfedale EVO5.1 is bigger, which usually goes with fuller bass. Your room decides. |
| Price |
evenly matched |
Much the same money ($999 vs $998 a pair). |
A Wharfedale EVO5.1
B MartinLogan Motion MP10
depends neither is better in the abstract - it turns on your room, placement or how you will use them.
Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
MartinLogan Motion MP10 has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 81Hz anyway, so judge these on the other rows instead. Match it to your room: we rate Wharfedale EVO5.1 the better fit for near-field listening and a small room, and MartinLogan Motion MP10 for a mid-size room and a large room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
