In this review, we will be comparing EVO4.2 and M16, two Passive Bookshelf speakers from Wharfedale and Revel.
Let's have a brief look at the main features
of Wharfedale EVO4.2 and Revel M16 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale EVO4.2 | Revel M16 |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Revel
United States · founded 1996 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1.18x2.36" AMT (Ribbon) | 1" Dome |
|---|
| Midrange | 2" | — |
|---|
| Woofer | 6.5" Kevlar | 6.5" Anodized aluminum |
|---|
| Frequency response | 54-22k Hz | 55- Hz |
|---|
| Sensitivity | 88 dB | 86 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | 25-120 watts | 50-120 watts |
|---|
| Weight | 13.40kg / 29.5lbs | 7.27kg / 16lbs |
|---|
| Dimensions (H x W x D) | 17.9" x 9.8" x 13.7"
455.0 x 250.0 x 350.0mm | 14-7/8" x 8-11/16" x 11"
378.0 x 221.0 x 280.0mm |
|---|
What size room are the Wharfedale EVO4.2 and Revel M16 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO4.2 |
Revel M16 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that EVO4.2 is a 3-way design whereas the M16 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Wharfedale EVO4.2Revel M16
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale EVO4.2 |
Revel M16 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1.18x2.36-inch
|
1-inch
|
|
Midrange
|
1 x 2-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
EVO4.2 features a 1.18x2.36" AMT (Ribbon) Tweeter, a 2" Midrange and 1 x 6.5" Kevlar Woofer. On the other hand, the M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer.
Frequency Response
EVO4.2 has a frequency range of 54-22k Hz whereas M16 has a frequency range of 55- Hz. With a minimum frequency of 54Hz, the EVO4.2 can go slightly deeper then the M16's min frequency of 55Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO4.2 is a 8 ohms speaker compared to the M16 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. EVO4.2 sensitivity is rated at 88 dB and the M16's is rated at 86 dB. This 2 dB difference makes the Wharfedale EVO4.2 a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 120 watts RMS, though EVO4.2 is rated 25-120 watts and M16 50-120 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
EVO4.2 features Binding post posts which make bi-amping or bi-wiring possible. M16 has a 5-way post which doesn't feature bi-amping/bi-wiring.
Cabinet Type and Port Position
EVO4.2 has a bottom firing port whereas M16 has a rear firing ports. Wharfedale EVO4.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M16 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO4.2's and Revel M16's external dimensions. Wharfedale EVO4.2 has external dimensions of 455.0 x 250.0 x 350.0mm (17.9 x 9.8 x 13.7inch) whereas Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm (14-7/8 x 8-11/16 x 11inch).
Wharfedale EVO4.2 is clearly the larger of the two speakers. Its body is 29mm wider, 77mm taller and 70mm deeper than Revel M16.

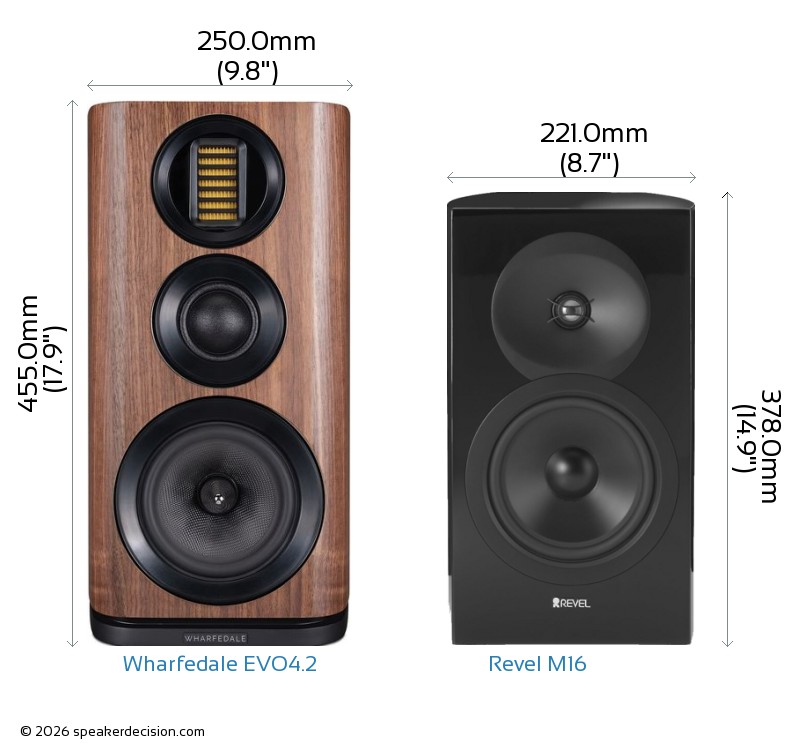

Below you can see the front view size comparison of Wharfedale EVO4.2 and Revel M16 in scale.
Comparison image of Wharfedale EVO4.2 and Revel M16 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO4.2 is approximately 875.0cm2 / 135.6inch2 and base area of the Revel M16 is approximately 618.8cm2 / 95.9inch2. The EVO4.2 requires 41% more surface area than the M16 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO4.2 weighs 13.40kg / 29.5lbs and the Revel M16 weighs 7.27kg / 16lbs. This makes the EVO4.2 84% heavier than the M16.
Here is a comparison of how EVO4.2 and M16's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO4.2?
Here are the items that are included inside the box of EVO4.2:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
What's in the Box of Revel M16?
Here are the items that come with the M16:
- Bookshelf loudspeaker
- Grille
- Owners Manual
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
88 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 Low Frequency Response |
54 Hz
vs
55 Hz
|
Generates deeper bass |
 High Frequency Response |
22k Hz
vs
20k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
378mm
vs
455mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
618cm2
vs
875cm2
|
Takes less floor space |
 Price per pair* |
990USD
vs
1199USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale EVO4.2 |
Revel Concerta2 M16 |
| Brand |
Wharfedale |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-120 watts |
50-120 watts |
| Sensitivity |
88 dB |
86 dB |
| Impedance |
8 ohms |
6 ohms |
| Impedance |
4 ohms |
n/a |
| Frequency Response |
54-22k Hz |
55- Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Kevlar |
Anodized aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.18x2.36" |
1" |
| Tweeter Type |
AMT (Ribbon) |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
2" |
No |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
455.0mm (17.9") |
378.0mm (14.9") |
| Width |
250.0mm (9.8") |
221.0mm (8.7") |
| Depth |
350.0mm (13.8") |
280.0mm (11") |
| Weight |
13.40kg (29.5lbs) |
7.27kg (16lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
Wood/Lacquer |
| Available Colors |
Walnut,Black,White |
Gloss Black,Gloss White |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
18-22" |
24-28" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Wharfedale EVO4.2 is the newer design, against a 2015 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | evenly matched | Much the same reach (54Hz vs 55Hz). |
| Amplifier needs | A | Wharfedale EVO4.2 is more sensitive (88dB vs 86dB), so it goes louder on the same amplifier. |
| Amplifier match | A | Wharfedale EVO4.2 is the easier load at 8 ohms. |
| Headroom | evenly matched | Similar power handling (120W vs 120W). |
| Size | depends | Revel M16 is easier to place; Wharfedale EVO4.2 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | A | Wharfedale EVO4.2: bi-amping. |
| Price | B | Revel M16 is cheaper - $990 against $1,199, about 17% less. |
A Wharfedale EVO4.2 B Revel M16
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Wharfedale EVO4.2 leads across most of the measured areas for a fairly modest premium, which makes it the easier pick if the budget stretches. Revel M16 is the one to take if it does not. In a large or open-plan room, Wharfedale EVO4.2 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Revel M16 is the easier speaker to get right. If your amplifier is modest, vintage or valve-based, Wharfedale EVO4.2 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
