In this review, we will be comparing Diamond 12.3 and ES50, two Passive Floor-standing speakers from Wharfedale and Polk Audio.
Let's have a brief look at the main features
of Wharfedale Diamond 12.3 and Polk ES50 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Diamond 12.3 | Polk ES50 |
|---|
| Brand | Wharfedale United Kingdom · founded 1932 | Polk Audio United States · founded 1972 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Soft-Dome |
|---|
| Woofer | 2 x 5" Mica-infused polypropylene | 2 x 5.25" Mica-reinforced polypropylene |
|---|
| Frequency response | 45-20k Hz | 38-40k Hz |
|---|
| Sensitivity | 88 dB | 88 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 30-150 watts | 40-200 watts |
|---|
| Weight | 19.50kg / 42.9lbs | 14.50kg / 31.9lbs |
|---|
| Dimensions (H x W x D) | 38-3/4" x 7-1/8" x 14-1/4" 985.0 x 180.0 x 362.0mm | 37-7/16" x 7-1/2" x 11-1/16" 951.0 x 191.0 x 281.0mm |
|---|
What size room are the Wharfedale Diamond 12.3 and Polk ES50 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale Diamond 12.3 |
Polk ES50 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Diamond 12.3 and ES50 are 2-way speakers.
Wharfedale Diamond 12.3Polk ES50
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Diamond 12.3 |
Polk ES50 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5-inch
|
2 x 5.25-inch
|
Diamond 12.3 features a 1" Textile Soft-Dome Tweeter and 2 x 5" Mica-infused polypropylene Woofer with a Crossover frequency at 2200Hz. On the other hand, the ES50 features a 1" Terylene High-Res Soft-Dome Tweeter and 2 x 5.25" Mica-reinforced polypropylene Woofer with a Crossover frequency at 2500Hz.
Frequency Response
Diamond 12.3 has a frequency range of 45-20k Hz whereas ES50 has a frequency range of 38-40k Hz. With a minimum frequency of 38Hz, the ES50 can go significantly deeper on the low side and provide stronger bass compared to the Diamond 12.3's min frequency of 45Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Diamond 12.3 and ES50 have the same Impedance of 8 ohms and their sensitivity is also same at 88 dB.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
ES50 can handle a max power of 200 watts RMS, whereas Diamond 12.3 has a max power handling value of 150 watts RMS, 50 watts less than the ES50.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Diamond 12.3 and ES50 features dual binding post speaker terminals for bi-amping or bi-wiring.
Wharfedale Diamond 12.3's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Diamond 12.3 has a rear firing port whereas ES50 has a bottom firing ports. Polk ES50's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Wharfedale Diamond 12.3 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Diamond 12.3's and Polk ES50's external dimensions. Wharfedale Diamond 12.3 has external dimensions of 985.0 x 180.0 x 362.0mm (38-3/4 x 7-1/8 x 14-1/4inch) whereas Polk ES50 has external dimensions of 951.0 x 191.0 x 281.0mm (37-7/16 x 7-1/2 x 11-1/16inch).
Polk ES50 is 34mm shorter and 81mm less deeper than Wharfedale Diamond 12.3 but it is also 11mm wider.

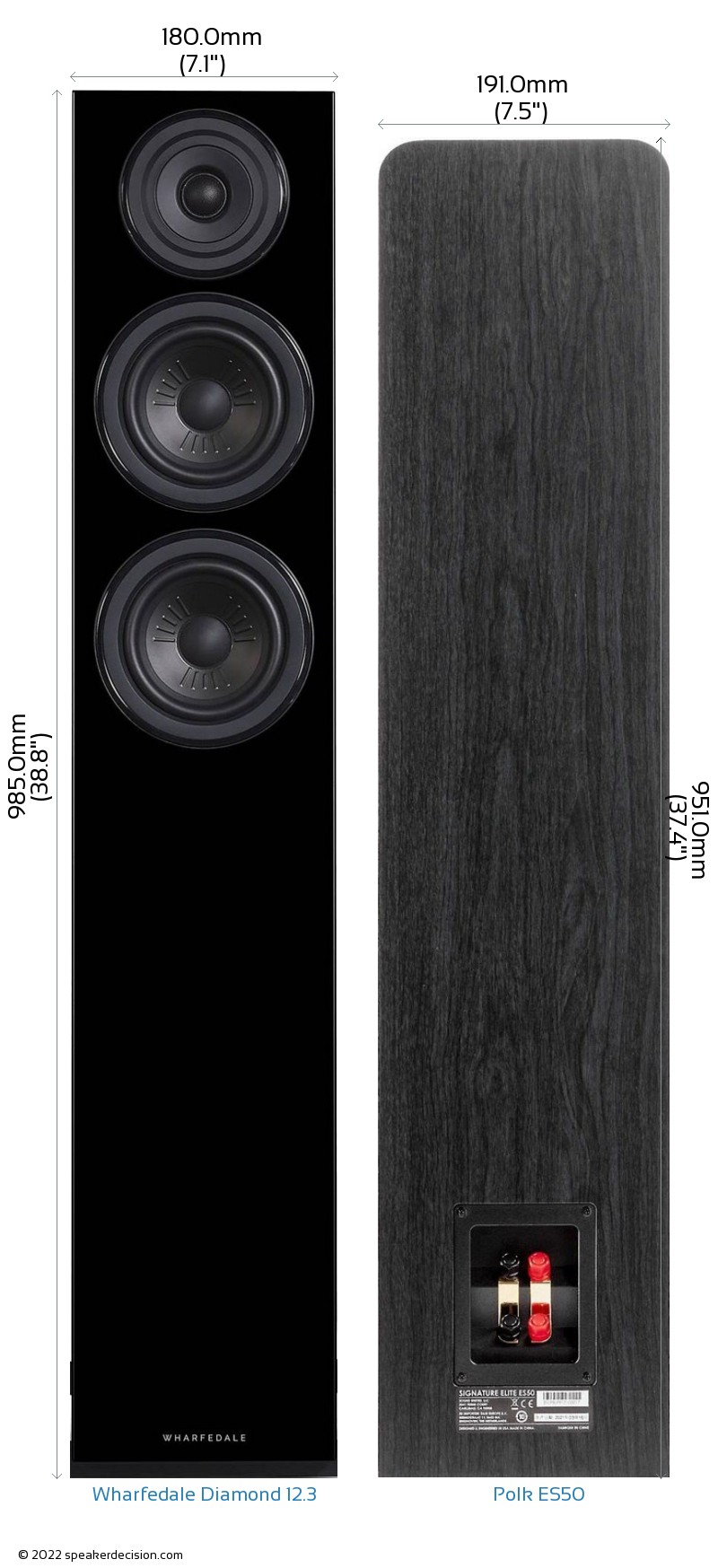

Below you can see the front view size comparison of Wharfedale Diamond 12.3 and Polk ES50 in scale.
Comparison image of Wharfedale Diamond 12.3 and Polk ES50 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Diamond 12.3 is approximately 651.6cm2 / 101.0inch2 and base area of the Polk ES50 is approximately 536.7cm2 / 83.2inch2. The Diamond 12.3 requires 21% more surface area than the ES50 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Diamond 12.3 weighs 19.50kg / 42.9lbs and the Polk ES50 weighs 14.50kg / 31.9lbs. This makes the Diamond 12.3 34% heavier than the ES50.
Here is a comparison of how Diamond 12.3 and ES50's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Wharfedale Diamond 12.3?
Here are the items that are included inside the box of Diamond 12.3:
- Floorstanding loudspeaker
- Grille
- 4 Spike feet (w/ locking collars)
- 2 Jumper-bars (pre-installed)
- 4 Isolation pucks
- Users Manual
What's in the Box of Polk ES50?
Here are the items that come with the ES50:
- Floorstanding loudspeaker
- Grille (attached)
- 4 Feet (pre-installed)
- Owners Manual
- Online Product Registration
Max Input Power |
200 watts
vs
150 watts
|
Handle more power from your amplifier |
Woofer Size |
5.25 inches
vs
5 inches
|
Larger woofer |
Low Frequency Response |
38 Hz
vs
45 Hz
|
Generates deeper bass |
High Frequency Response |
40k Hz
vs
20k Hz
|
Generates higher frequency |
Height |
951mm
vs
985mm
|
Easier to fit in smaller spaces |
Base Surface Area |
536cm2
vs
651cm2
|
Takes less floor space |
Price per pair* |
698USD
vs
1198USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale Diamond 12.3 |
Polk Audio Signature Elite ES50 |
| Brand |
Wharfedale |
Polk Audio |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
30-150 watts |
40-200 watts |
| Sensitivity |
88 dB |
88 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
5 ohms |
n/a |
| Frequency Response |
45-20k Hz |
38-40k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5" |
5.25" |
| Woofer Composition |
Mica-infused polypropylene |
Mica-reinforced polypropylene |
| Woofer Surround Material |
Rubber |
Butyl rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Soft-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2200Hz |
2500Hz |
| Firing Direction |
rear |
bottom |
Physical Specs |
|
|
| Height |
985.0mm (38.8") |
951.0mm (37.4") |
| Width |
180.0mm (7.1") |
191.0mm (7.5") |
| Depth |
362.0mm (14.3") |
281.0mm (11.1") |
| Weight |
19.50kg (42.9lbs) |
14.50kg (31.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
MDF, Wood-grain vinyl |
| Available Colors |
Black, Oak, Walnut |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Wharfedale Diamond 12.3 costs roughly 1.7x what Polk ES50 does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | Polk ES50 digs deeper - 38Hz against 45Hz. A subwoofer would even that out. |
| Amplifier needs | evenly matched | Similar sensitivity (88dB vs 88dB) - both want much the same power. |
| Headroom | B | Polk ES50 takes more power (200W vs 150W) - more in hand in a big room. |
| Size | depends | Polk ES50 is easier to place; Wharfedale Diamond 12.3 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Wharfedale Diamond 12.3: bi-amping; Polk ES50: bi-amping. |
| Price | B | Polk ES50 is cheaper - $698 against $1,198, about 42% less; arguably a different class. |
A Wharfedale Diamond 12.3 B Polk ES50
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Polk ES50 is the easier recommendation: it leads on most of the measured areas and costs less. Take Wharfedale Diamond 12.3 if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 45Hz anyway, so judge these on the other rows instead. Think about the whole system, not just the speakers: the roughly $500 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
