In this review, we will be comparing AURA 1 and LINTON Heritage, two Passive Bookshelf speakers by Wharfedale Let's have a brief look at the main features
of Wharfedale AURA 1 and Wharfedale LINTON first before getting into our more
detailed comparison.
What size room are the Wharfedale AURA 1 and Wharfedale LINTON speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Wharfedale AURA 1 and Wharfedale LINTON compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that AURA 1 is a 2-way design whereas the LINTON Heritage is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale AURA 1 |
Wharfedale LINTON |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1.0625 x 3.5-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5-inch |
|
Woofer
|
1 x 5-inch
|
1 x 8-inch
|
AURA 1 features a 1.0625 x 3.5" AMT (Ribbon) Tweeter and 1 x 5" Glass Fiber Matrix Woofer with a Crossover frequency at 2.9kHz. On the other hand, the LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz.
Frequency Response
AURA 1 has a frequency range of 48-22k Hz whereas LINTON Heritage has a frequency range of 40-20k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the AURA 1's min frequency of 48Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
AURA 1 and LINTON Heritage have the same Impedance of 6 ohms but where they differ is the sensitivity levels. AURA 1 sensitivity is rated at 86 dB and the LINTON Heritage's is at 90 dB. This 4 dB difference makes the Wharfedale LINTON a more sensitive speaker compared to Wharfedale AURA 1, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
AURA 1 can handle a max power of 200 watts RMS from the amp the whereas AURA 1 has a max power handling value of 100 watts RMS , 100 watts less than the LINTON Heritage.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
AURA 1 features Binding post posts which make bi-amping or bi-wiring possible. LINTON Heritage has a Post which doesn't feature bi-amping/bi-wiring.
Wharfedale AURA 1's Binding post terminals allows Bi-amping or bi-wiring
Wharfedale LINTON's Post terminals
Cabinet Type and Port Position
AURA 1 has a bottom firing port whereas LINTON Heritage has a rear firing ports. Wharfedale AURA 1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Wharfedale LINTON with its rear-firing port.
Physical Specs

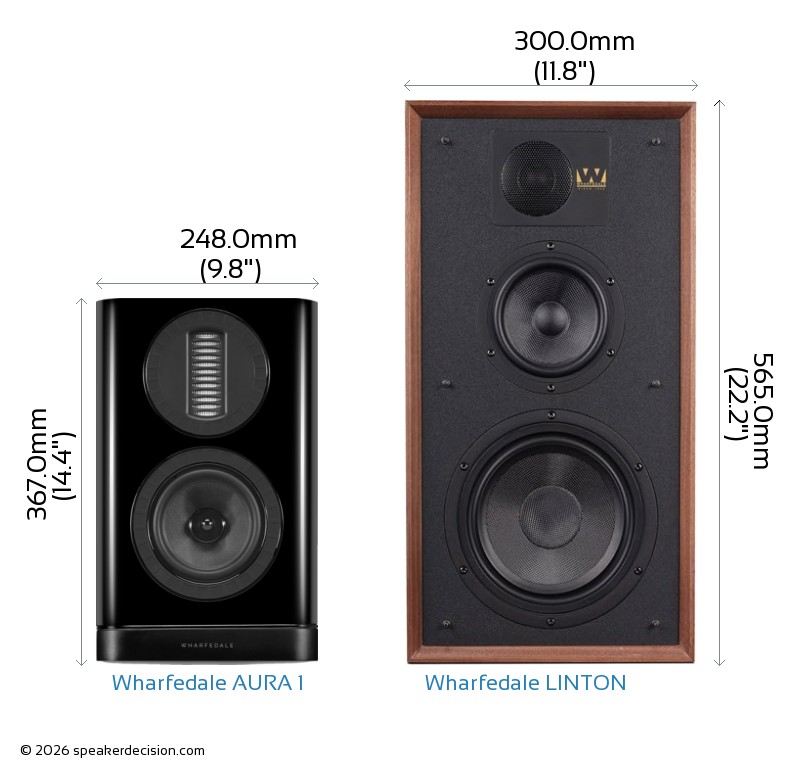

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale AURA 1's and Wharfedale LINTON's external dimensions. Wharfedale AURA 1 has external dimensions of 367.0 x 248.0 x 350.0mm ( 14-7/16inch x 9-3/4inch x 13-3/4inch ) whereas Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) .
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 52mm wider, 198mm taller and 10mm deeper than Wharfedale AURA 1.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale AURA 1 is approximately 868.0cm2 / 134.5inch2 and base area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2. The AURA 1 requires 12% less surface area than the LINTON Heritage which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale AURA 1 weighs 12.50kg / 27.5lbs and the Wharfedale LINTON weighs 18.40kg / 40.5lbs. This makes the LINTON Heritage 47% heavier than the AURA 1.
Here is a comparison of how AURA 1 and LINTON Heritage's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale AURA 1?
Here are the items that are included inside the box of AURA 1:
2 Bookshelf loudspeakers2 Grilles4 Jumper wires8 Rubber feetPair of white glovesUser Manual
What's in the Box of Wharfedale LINTON?
Here are the items that come with the LINTON Heritage:
Bookshelf loudspeaker Grille (pre-installed) 4 Self-adhesive rubber feet Pair of white gloves User's Manual
 Minimum Impedance |
4.1 ohms
vs
3.5 ohms
|
Very low impedance levels puts more pressure on amplifier |
 High Frequency Response |
22k Hz
vs
20k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
367mm
vs
565mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
868cm2 (248x350mm)
vs
990cm2 (300x360mm)
|
Takes less floor space |
 Max Input Power |
200 watts
vs
100 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
90 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
8 inches
vs
5 inches
|
Larger woofer |
| Low Frequency Response |
40 Hz
vs
48 Hz
|
Generates deeper bass |
 Price per pair* |
1500USD
vs
1999USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale AURA 1 |
Wharfedale LINTON Heritage |
| Brand |
Wharfedale |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-100 watts |
25-200 watts |
| Sensitivity |
86 dB |
90 dB |
| Impedance |
6 ohms |
6 ohms |
| Impedance |
4.1 ohms |
3.5 ohms |
| Frequency Response |
48-22k Hz |
40-20k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5" |
8" |
| Woofer Composition |
Glass Fiber Matrix |
Woven Kevlar |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.0625 x 3.5" |
1" |
| Tweeter Type |
AMT (Ribbon) |
Soft-dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
5" |
| Crossover Frequency |
2.9kHz |
630Hz and 2400Hz |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
367.0mm (14.4") |
565.0mm (22.2") |
| Width |
248.0mm (9.8") |
300.0mm (11.8") |
| Depth |
350.0mm (13.8") |
360.0mm (14.2") |
| Weight |
12.50kg (27.5lbs) |
18.40kg (40.5lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
Multi-layer wood |
MDF/Wood Veneer |
| Available Colors |
Piano Black,Piano Walnut,White Gloss |
Walnut, Red Mahogany, Black |
| Mounting Bracket |
|
No |
| Recommended Stand Height |
22-24" |
18-22" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
