In this review, we will be comparing M126Be and RP-600M, two Passive Bookshelf speakers from Revel and Klipsch.
Let's have a brief look at the main features
of Revel M126Be and Klipsch RP-600M first before getting into our more
detailed comparison.
| Key Specs | Revel M126Be | Klipsch RP-600M |
|---|
| Brand | Revel
United States · founded 1996 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" Tractrix Horn |
|---|
| Woofer | 6.5" DCC Aluminum | 6.5" Cerametallic |
|---|
| Frequency response | 54-44k Hz | 45-25k Hz |
|---|
| Sensitivity | 86 dB | 96 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 50-150 watts | up to 100 watts |
|---|
| Weight | 10.00kg / 22lbs | 7.30kg / 16.1lbs |
|---|
| Dimensions (H x W x D) | 15-1/4" x 8-5/16" x 10-5/16"
388.0 x 212.0 x 262.0mm | 15.7" x 7.9" x 11.8"
399.0 x 202.0 x 301.0mm |
|---|
What size room are the Revel M126Be and Klipsch RP-600M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Revel M126Be |
Klipsch RP-600M |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both M126Be and RP-600M are 2-way speakers.
Revel M126BeKlipsch RP-600M
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Revel M126Be |
Klipsch RP-600M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer. On the other hand, the RP-600M features a 1" Tractrix Horn Tweeter and 1 x 6.5" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
M126Be has a frequency range of 54-44k Hz whereas RP-600M has a frequency range of 45-25k Hz. With a minimum frequency of 45Hz, the RP-600M can go significantly deeper on the low side and provide stronger bass compared to the M126Be's min frequency of 54Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
M126Be and RP-600M have the same Impedance of 8 ohms but where they differ is the sensitivity levels. M126Be sensitivity is rated at 86 dB and the RP-600M's is at 96 dB. This 10 dB difference makes the Klipsch RP-600M a more sensitive speaker compared to Revel M126Be, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
M126Be can handle a max power of 150 watts RMS, whereas RP-600M has a max power handling value of 100 watts RMS, 50 watts less than the M126Be.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
RP-600M features Dual binding posts/bi-wire/bi-amp posts which make bi-amping or bi-wiring possible. M126Be has a Binding post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-600M's Dual binding posts/bi-wire/bi-amp terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both M126Be and RP-600M have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Klipsch RP-600M Tractrix horn-shaped Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel M126Be's and Klipsch RP-600M's external dimensions. Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm (15-1/4 x 8-5/16 x 10-5/16inch) whereas Klipsch RP-600M has external dimensions of 399.0 x 202.0 x 301.0mm (15.7 x 7.9 x 11.8inch).
Revel M126Be is 11mm shorter and 39mm less deeper than Klipsch RP-600M but it is also 10mm wider.

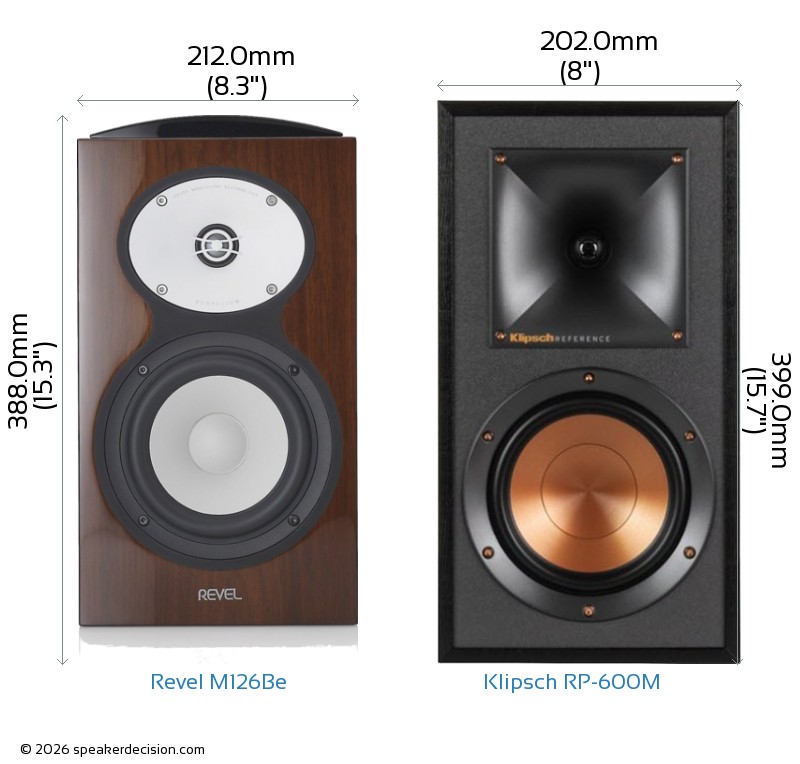

Below you can see the front view size comparison of Revel M126Be and Klipsch RP-600M in scale.
Comparison image of Revel M126Be and Klipsch RP-600M Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2 and base area of the Klipsch RP-600M is approximately 608.0cm2 / 94.2inch2. The M126Be requires 9% less surface area than the RP-600M which gives it a small advantage on placement in tight spaces.
Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Revel M126Be and Klipsch RP-600M on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel M126Be weighs 10.00kg / 22lbs and the Klipsch RP-600M weighs 7.30kg / 16.1lbs. This makes the M126Be 37% heavier than the RP-600M.
Here is a comparison of how M126Be and RP-600M's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Revel M126Be?
Here are the items that are included inside the box of M126Be:
- Bookshelf loudspeaker
- Grille
- Foam port plug
- Owners Manual
What's in the Box of Klipsch RP-600M?
Here are the items that come with the RP-600M:
- 2 Bookshelf loudspeakers
- 2 Grilles (installed)
- 8 Self-adhesive rubber feet
- 4 Terminal jumpers (installed)
- User Manual
- Important Safety Instructions
- Warranty Information
 Max Input Power |
150 watts
vs
100 watts
|
Handle more power from your amplifier |
 High Frequency Response |
44k Hz
vs
25k Hz
|
Generates higher frequency |
 Height |
388mm
vs
399mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
555cm2
vs
608cm2
|
Takes less floor space |
 Sensitivity |
96 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
45 Hz
vs
54 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Price per pair* |
459USD
vs
4400USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Revel PerformaBe M126Be |
Klipsch Reference Premiere RP-600M |
| Brand |
Revel |
Klipsch |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
50-150 watts |
up to 100 watts |
| Sensitivity |
86 dB |
96 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
54-44k Hz |
45-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
DCC Aluminum |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1500Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
388.0mm (15.3") |
399.0mm (15.7") |
| Width |
212.0mm (8.3") |
202.0mm (8") |
| Depth |
262.0mm (10.3") |
301.0mm (11.9") |
| Weight |
10.00kg (22lbs) |
7.30kg (16.1lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Finish |
Wood/Lacquer |
MDF/Wood-grain vinyl |
| Available Colors |
Walnut,Black,White,Silver |
Ebony, Walnut, Piano Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
22-26" |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Revel M126Be costs roughly 9.6x what Klipsch RP-600M does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | Klipsch RP-600M digs deeper - 45Hz against 54Hz. A subwoofer would even that out. |
| Amplifier needs | B | Klipsch RP-600M is more sensitive (96dB vs 86dB), so it goes louder on the same amplifier. |
| Headroom | A | Revel M126Be takes more power (150W vs 100W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | B | Klipsch RP-600M: bi-amping. Klipsch RP-600M sits in a wider range (17 models), so a matched surround system is easier later. |
| Price | B | Klipsch RP-600M is cheaper - $459 against $4,400, about 90% less; arguably a different class. |
A Revel M126Be B Klipsch RP-600M
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch RP-600M is the easier recommendation: it leads on most of the measured areas and costs less. Take Revel M126Be if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 54Hz anyway, so judge these on the other rows instead. Match it to your room: we rate Revel M126Be the better fit for a mid-size room and a large room, and Klipsch RP-600M for near-field listening and a small room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
