In this review, we will be comparing Revel Performa4 F345 and Silver 500 7G, two Passive Floor-standing speakers from Revel and Monitor Audio.
Let's have a brief look at the main features
of Revel Performa4 F345 and Monitor Audio Silver 500 7G first before getting into our more
detailed comparison.
Revel Performa4 F345 Key Specs
- 1" Hard-Dome Tweeter
- 3 x 5.25" Micro Ceramic Composite (MCC) Woofer
- 36-40k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-225watts
- Weight:29.09kg
- Dimensions (H x W x D): 1042.0" x 11-15/16" x 13-15/16"( 1042.0 x 304.0 x 355.0mm )
Monitor Audio Silver 500 7G Key Specs
- 3-way Design
- 1" gold dome C-CAM with Uniform Dispersion (UD) Waveguide II Tweeter
- 3" Midrange
- 2 x 8" C-CAM RST II Woofer
- 3" Midrange
- 27-35k Hz Frequency Response
- 90.5 dB Sensitivity
- Impedance: 8ohms
- Power Range:80-250watts
- Weight:22.53kg
- Dimensions (H x W x D): 1085.0" x 12-11/16" x 15-7/16"( 1085.0 x 323.0 x 393.0mm )
In the following sections, we will get into more detail in order to better understand how the Revel Performa4 F345 and Monitor Audio Silver 500 7G compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Revel Performa4 F345 is a -way design whereas the Silver 500 7G is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel Performa4 F345 |
Monitor Audio Silver 500 7G |
|
Driver Setup
|
-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 3-inch |
|
Woofer
|
3 x 5.25-inch
|
2 x 8-inch
|
Revel Performa4 F345 features a 1" Hard-Dome Tweeter and 3 x 5.25" Micro Ceramic Composite (MCC) Woofer . On the other hand, the Silver 500 7G features a 1" gold dome C-CAM with Uniform Dispersion (UD) Waveguide II Tweeter , a 3" Midrange and 2 x 8" C-CAM RST II Woofer .
Frequency Response
Revel Performa4 F345 has a frequency range of 36-40k Hz whereas Silver 500 7G has a frequency range of 27-35k Hz. With a minimum frequency of 27Hz, the Silver 500 7G can go significantly deeper on the low side and provide stronger bass compared to the Revel Performa4 F345's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
Monitor Audio Silver 500 7G
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Revel Performa4 F345 is a 6 ohms speaker compared to the Silver 500 7G which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. Revel Performa4 F345 sensitivity is rated at 87 dB and the Silver 500 7G's is rated at 90.5 dB. This 4 dB difference makes the Monitor Audio Silver 500 7G a more sensitive speaker compared to Revel Performa4 F345, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Revel Performa4 F345 can handle a max power of 250 watts RMS from the amp the whereas Revel Performa4 F345 has a max power handling value of 225 watts RMS , 25 watts less than the Silver 500 7G.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Revel Performa4 F345 and Silver 500 7G features dual binding post speaker terminals for bi-amping or bi-wiring.
Physical Specs

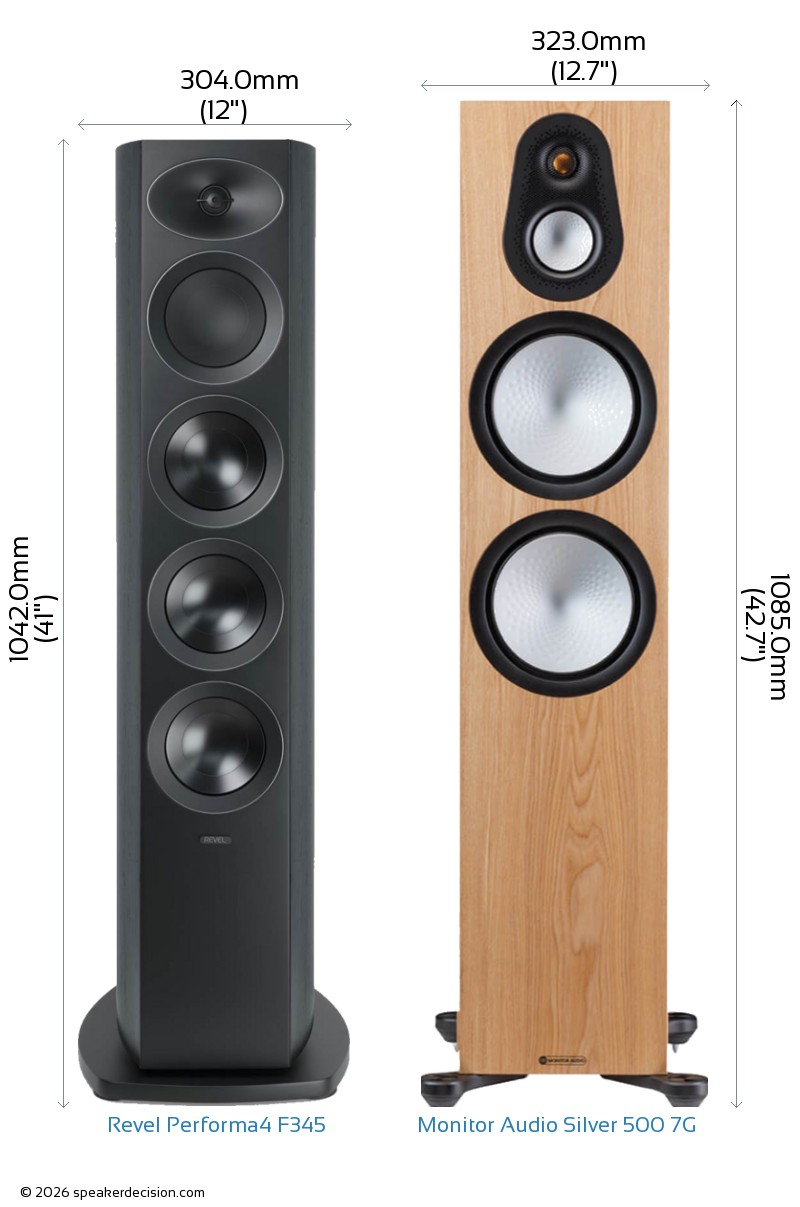

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa4 F345's and Monitor Audio Silver 500 7G's external dimensions. Revel Performa4 F345 has external dimensions of 1042.0 x 304.0 x 355.0mm ( 41inch x 11-15/16inch x 13-15/16inch ) whereas Monitor Audio Silver 500 7G has external dimensions of 1085.0 x 323.0 x 393.0mm ( 42-11/16 x 12-11/16 x 15-7/16inch) .
Monitor Audio Silver 500 7G is clearly the larger of the two speakers. Its body is 19mm wider, 43mm taller and 38mm deeper than Revel Performa4 F345.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Performa4 F345 is approximately 1079.2cm2 / 167.3inch2 and base area of the Monitor Audio Silver 500 7G is approximately 1269.4cm2 / 196.8inch2. The Revel Performa4 F345 requires 15% less surface area than the Silver 500 7G which gives it a small advantage on placement in tight spaces.
