In this review, we will be comparing Performa3 F206 and Kendall, two Passive Floor-standing speakers from Revel and KLH. Let's have a brief look at the main features
of Revel Performa3 F206 and KLH Kendall first before getting into our more
detailed comparison.
In the following sections, we will get into more detail in order to better understand how the Revel Performa3 F206 and KLH Kendall compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Performa3 F206 and Kendall are 3-way speakers.
| Driver |
Revel Performa3 F206 |
KLH Kendall |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
1 x 5.25-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 6.5-inch
|
Performa3 F206 features a 1" Aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter , a 5.25" Midrange and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 275Hz and 2150Hz. On the other hand, the Kendall features a 1" anodized aluminum Tweeter , a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer .
Frequency Response
Performa3 F206 has a frequency range of 42Hz- 20kHz whereas Kendall has a frequency range of 25-23k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the Performa3 F206's min frequency of 42Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Performa3 F206 and Kendall have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Performa3 F206 sensitivity is rated at 88 dB and the Kendall's is at 96 dB. This 8 dB difference makes the KLH Kendall a more sensitive speaker compared to Revel Performa3 F206, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Performa3 F206 can handle a max power of 200 watts RMS from the amp the whereas Kendall has a max power handling value of watts RMS, 200 watts less than the Performa3 F206.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Kendall features Binding post posts which make bi-amping or bi-wiring possible. Performa3 F206 has a Binding post which doesn't feature bi-amping/bi-wiring.
Revel Performa3 F206's Binding post terminals
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs

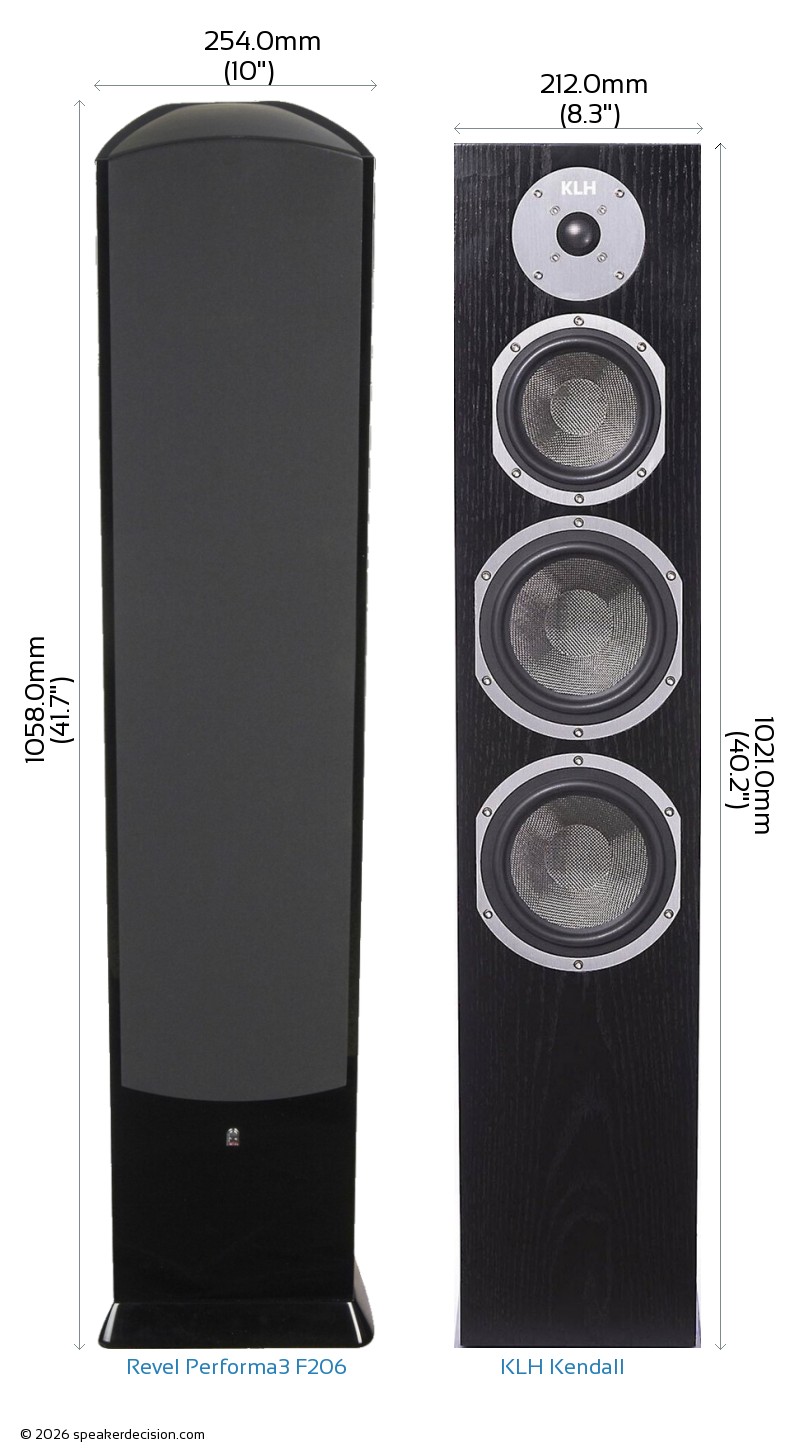

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa3 F206's and KLH Kendall's external dimensions. Revel Performa3 F206 has external dimensions of 1058.0 x 254.0 x 353.0mm ( 41-5/8 x 10 x 13-7/8inch) whereas KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm ( 40-3/16 x 8-5/16 x 14-15/16inch) .
KLH Kendall is 42mm narrower and 37mm shorter than Revel Performa3 F206 but it is also 27mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Performa3 F206 is approximately 896.6cm2 / 139.0inch2 and base area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2. The Performa3 F206 requires 11% more surface area than the Kendall which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel Performa3 F206 weighs 26.41kg / 58.1lbs and the KLH Kendall weighs 22.14kg / 48.7lbs. This makes the Performa3 F206 19% heavier than the Kendall.
Here is a comparison of how Performa3 F206 and Kendall's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Revel Performa3 F206?
Here are the items that are included inside the box of Performa3 F206:
Floorstanding loudspeakerGrille4 Spike feet4 Locking rings4 WashersFoam port plugOwners Manual
What's in the Box of KLH Kendall?
Here are the items that come with the Kendall:
Floorstanding loudspeakerGrilleFoam port4 Rubber feet4 Spike feet (with nuts)4 Protective discsManual
 Sensitivity |
96 dB
vs
88 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
25 Hz
vs
42 Hz
|
Generates deeper bass |
 High Frequency Response |
23k Hz
vs
20k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
1021mm
vs
1058mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
805cm2 (212x380mm)
vs
896cm2 (254x353mm)
|
Takes less floor space |
 Price per pair* |
1500USD
vs
3850USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Revel Performa3 F206 |
KLH Kendall |
| Brand |
Revel |
KLH |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
50-200 watts |
up to 250 watts |
| Sensitivity |
88 dB |
96 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
42Hz- 20kHz |
25-23k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Aluminum |
Woven Kevlar |
| Woofer Surround Material |
Rubber |
Butyl Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome with Acoustic Lens Waveguide |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
5.25" |
| Crossover Frequency |
275Hz and 2150Hz |
n/a |
| Firing Direction |
rear |
n/a |
Physical Specs |
|
|
| Height |
1058.0mm (41.7") |
1021.0mm (40.2") |
| Width |
254.0mm (10") |
212.0mm (8.3") |
| Depth |
353.0mm (13.9") |
380.0mm (15") |
| Weight |
26.41kg (58.1lbs) |
22.14kg (48.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
Wood/Lacquer |
MDF/Wood Veneer |
| Available Colors |
Gloss Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
10 Years |
| Labor Warranty |
5 Years |
10 Years |
