In this review, we will be comparing Alpha AM5 and A5+ Wireless, two Powered Bookshelf speakers from PSB and Audioengine. Being Powered speakers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features
of PSB Alpha AM5 and Audioengine A5+ Wireless first before getting into our more
detailed comparison.
PSB Alpha AM5 Key Specs
- 2-way Design
- 100-watt RMS Integrated Amplifier
- 0.75" Hard-Dome Tweeter
- 5.25" Polypropylene Woofer
- 55-20k Hz Frequency Response
- 24-bit Max Depth / 48 kHz Max Sample Rate
- Built-in 5.0 Bluetooth
- Weight:9.75kg
- Dimensions (H x W x D): 292.1" x 6.75" x 11"( 292.1 x 171.5 x 279.4mm )
Audioengine A5+ Wireless Key Specs
- 2-way Design
- 100-watt RMS Integrated Amplifier
- 0.75" Soft-Dome Tweeter
- 5" Kevlar Woofer
- 50-22k Hz Frequency Response
- 24-bit Max Depth / 44.1 kHz Max Sample Rate
- Built-in 4.0 Bluetooth
- Weight:4.40kg
- Dimensions (H x W x D): 276.2" x 7.1875" x 9.75"( 276.2 x 182.6 x 247.6mm )
In the following sections, we will get into more detail in order to better understand how the PSB Alpha AM5 and Audioengine A5+ Wireless compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Alpha AM5 and A5+ Wireless are 2-way speakers.
| Driver |
PSB Alpha AM5 |
Audioengine A5+ Wireless |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
0.75-inch
|
0.75-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5-inch
|
Alpha AM5 features a 0.75" Aluminum Hard-Dome Tweeter and 1 x 5.25" Polypropylene Woofer . On the other hand, the A5+ Wireless features a 0.75" Silk Soft-Dome Tweeter and 1 x 5" Kevlar Woofer .
Frequency Response
Alpha AM5 has a frequency range of 55-20k Hz whereas A5+ Wireless has a frequency range of 50-22k Hz. With a minimum frequency of 50Hz, the A5+ Wireless can go significantly deeper on the low side and provide stronger bass compared to the Alpha AM5's min frequency of 55Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Cabinet Type and Port Position
Both Alpha AM5 and A5+ Wireless have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

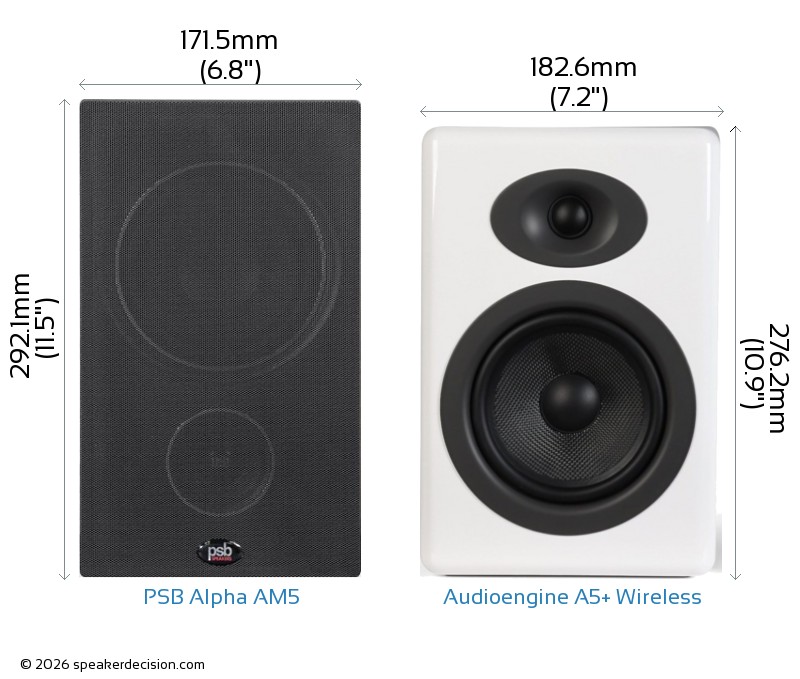

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Alpha AM5's and Audioengine A5+ Wireless's external dimensions. PSB Alpha AM5 has external dimensions of 292.1 x 171.5 x 279.4mm ( 11.5 x 6.75 x 11inch) whereas Audioengine A5+ Wireless has external dimensions of 276.2 x 182.6 x 247.6mm ( 10.875 x 7.1875 x 9.75inch) .
Audioengine A5+ Wireless is 15.9mm shorter and 31.8mm less deeper than PSB Alpha AM5 but it is also 11.1mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Alpha AM5 is approximately 479.2cm2 / 74.3inch2 and base area of the Audioengine A5+ Wireless is approximately 452.1cm2 / 70.1inch2. The Alpha AM5 requires 6% more surface area than the A5+ Wireless which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The PSB Alpha AM5 weighs 9.75kg / 21.5lbs and the Audioengine A5+ Wireless weighs 4.40kg / 9.7lbs. This makes the Alpha AM5 122% heavier than the A5+ Wireless.
Here is a comparison of how Alpha AM5 and A5+ Wireless's weights compare with the average, max and min weights in Powered Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of PSB Alpha AM5?
Here are the items that are included inside the box of Alpha AM5:
Powered speaker Passive speaker 2 Grilles AC power adapter (attached 45-inch DC cord) 4-feet AC power cord Remote control (PSR-1) 2 AAA batteries 8-feet Speaker cable 58-inch Stereo minijack cable 8 Self-adhesive rubber feet Connection Diagram Warranty Card
What's in the Box of Audioengine A5+ Wireless?
Here are the items that come with the A5+ Wireless:
Powered left speakerPassive right speaker6-feet AC power cordRemote control (with installed CR2025 battery)Antenna12.5-feet Length of 16 gauge speaker wire6.5-feet Stereo minijack cable6-feet Stereo RCA cableCloth drawstring cable bag2 Cloth drawstring speaker bagsSetup guideAudioengine product brochure
