In this review, we will be comparing Nero MB5 and LINTON Heritage, two Passive Bookshelf speakers from OSD and Wharfedale.
Let's have a brief look at the main features
of OSD Nero MB5 and Wharfedale LINTON first before getting into our more
detailed comparison.
| Key Specs | OSD Nero MB5 | Wharfedale LINTON |
|---|
| Brand | OSD
United States · founded 2003 | Wharfedale
United Kingdom · founded 1932 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Soft-dome |
|---|
| Midrange | — | 5" |
|---|
| Woofer | 5.25" Fiberglass | 8" Woven Kevlar |
|---|
| Frequency response | 50-30k Hz | 40-20k Hz |
|---|
| Sensitivity | 90 dB | 90 dB |
|---|
| Impedance | 4 ohms | 6 ohms |
|---|
| Power range | 100 watts | 25-200 watts |
|---|
| Weight | 5.45kg / 12lbs | 18.40kg / 40.5lbs |
|---|
| Dimensions (H x W x D) | 11-15/16" x 7-5/16" x 9-5/8"
304.0 x 177.8 x 245.0mm | 22.2" x 11.8" x 14.2"
565.0 x 300.0 x 360.0mm |
|---|
What size room are the OSD Nero MB5 and Wharfedale LINTON speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
OSD Nero MB5 |
Wharfedale LINTON |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Nero MB5 is a 2-way design whereas the LINTON Heritage is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
OSD Nero MB5Wharfedale LINTON
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
OSD Nero MB5 |
Wharfedale LINTON |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5-inch |
|
Woofer
|
1 x 5.25-inch
|
1 x 8-inch
|
Nero MB5 features a 1" Soft-Dome Tweeter and 1 x 5.25" Fiberglass Woofer. On the other hand, the LINTON Heritage features a 1" woven textile Soft-dome Tweeter, a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz.
Frequency Response
Nero MB5 has a frequency range of 50-30k Hz whereas LINTON Heritage has a frequency range of 40-20k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the Nero MB5's min frequency of 50Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Nero MB5 is a 4 ohms speaker compared to the LINTON Heritage which has a nominal impedance of 6 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Nero MB5 can provide this impedance level.
On the other hand, they have the same sensitivity of 90 dBdB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
LINTON Heritage can handle a max power of 200 watts RMS, whereas Nero MB5 has a max power handling value of 100 watts RMS, 100 watts less than the LINTON Heritage.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare OSD Nero MB5's and Wharfedale LINTON's external dimensions. OSD Nero MB5 has external dimensions of 304.0 x 177.8 x 245.0mm (11-15/16inch x 7-5/16inch x 9-5/8inch) whereas Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm (22.2 x 11.8 x 12.9inch).
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 122.2mm wider, 261mm taller and 115mm deeper than OSD Nero MB5.

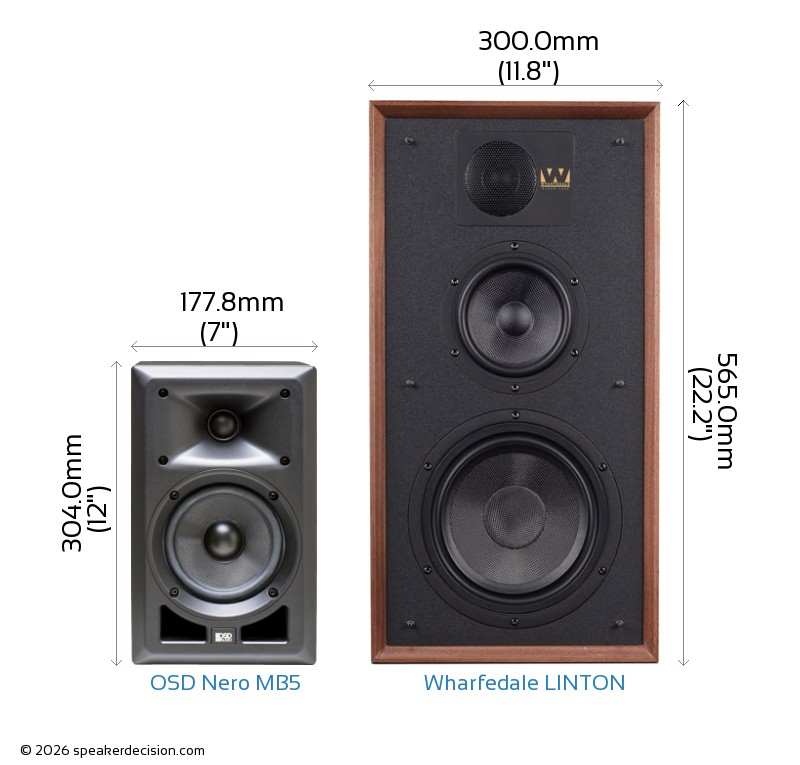

Below you can see the front view size comparison of OSD Nero MB5 and Wharfedale LINTON in scale.
Comparison image of OSD Nero MB5 and Wharfedale LINTON Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the OSD Nero MB5 is approximately 435.6cm2 / 67.5inch2 and base area of the Wharfedale LINTON is approximately 1080.0cm2 / 167.4inch2. The Nero MB5 requires 60% less surface area than the LINTON Heritage which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The OSD Nero MB5 weighs 5.45kg / 12lbs and the Wharfedale LINTON weighs 18.40kg / 40.5lbs. This makes the LINTON Heritage 238% heavier than the Nero MB5.
Here is a comparison of how Nero MB5 and LINTON Heritage's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of OSD Nero MB5?
Here are the items that are included inside the box of Nero MB5:
- 2 Bookshelf loudspeakers
- 2 Grilles
What's in the Box of Wharfedale LINTON?
Here are the items that come with the LINTON Heritage:
- Bookshelf loudspeaker
- Grille (pre-installed)
- 4 Self-adhesive rubber feet
- Pair of white gloves
- User's Manual
 High Frequency Response |
30k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
304mm
vs
565mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
435cm2
vs
1080cm2
|
Takes less floor space |
 Max Input Power |
200 watts
vs
100 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Nominal Impedance |
6 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Woofer Size |
8 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
40 Hz
vs
50 Hz
|
Generates deeper bass |
| General |
OSD Nero MB5 |
Wharfedale LINTON Heritage |
| Brand |
OSD |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
100 watts |
25-200 watts |
| Sensitivity |
90 dB |
90 dB |
| Impedance |
4 ohms |
6 ohms |
| Impedance |
n/a |
3.5 ohms |
| Frequency Response |
50-30k Hz |
40-20k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5.25" |
8" |
| Woofer Composition |
Fiberglass |
Woven Kevlar |
| Woofer Surround Material |
n/a |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Soft-dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
5" |
| Crossover Frequency |
n/a |
630Hz and 2400Hz |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
304.0mm (12") |
565.0mm (22.2") |
| Width |
177.8mm (7") |
300.0mm (11.8") |
| Depth |
245.0mm (9.6") |
360.0mm (14.2") |
| Weight |
5.45kg (12lbs) |
18.40kg (40.5lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
n/a |
MDF/Wood Veneer |
| Available Colors |
Black |
Walnut, Red Mahogany, Black |
| Mounting Bracket |
|
No |
| Recommended Stand Height |
n/a |
18-22" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
n/a |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | B | Wharfedale LINTON digs deeper - 40Hz against 50Hz. |
| Amplifier needs | evenly matched | Similar sensitivity (90dB vs 90dB) - both want much the same power. |
| Amplifier match | B | Wharfedale LINTON is the easier load at 6 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | B | Wharfedale LINTON takes more power (200W vs 100W) - more in hand in a big room. |
| Size | depends | OSD Nero MB5 is easier to place; Wharfedale LINTON is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | B | Wharfedale LINTON: bi-amping. Wharfedale LINTON sits in a wider range (7 models), so a matched surround system is easier later. |
A OSD Nero MB5 B Wharfedale LINTON
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Wharfedale LINTON has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 50Hz anyway, so judge these on the other rows instead. Match it to your room: we rate OSD Nero MB5 the better fit for near-field listening and a small room, and Wharfedale LINTON for a mid-size room and a large room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
