In this review, we will be comparing Nero MB5 and RP-500M, two Passive Bookshelf speakers from OSD and Klipsch. Let's have a brief look at the main features
of OSD Nero MB5 and Klipsch RP-500M first before getting into our more
detailed comparison.
What size room are the OSD Nero MB5 and Klipsch RP-500M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the OSD Nero MB5 and Klipsch RP-500M compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Nero MB5 and RP-500M are 2-way speakers.
| Driver |
OSD Nero MB5 |
Klipsch RP-500M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5.25-inch
|
Nero MB5 features a 1" Soft-Dome Tweeter and 1 x 5.25" Fiberglass Woofer . On the other hand, the RP-500M features a 1" Tractrix Horn Tweeter and 1 x 5.25" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
Nero MB5 has a frequency range of 50-30k Hz whereas RP-500M has a frequency range of 48-25k Hz. With a minimum frequency of 48Hz, the RP-500M can go slightly deeper then the Nero MB5's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Nero MB5 is a 4 ohms speaker compared to the RP-500M which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Nero MB5 can provide this impedance level.
These two speakers also have different sensitivity levels. Nero MB5 sensitivity is rated at 90 dB and the RP-500M's is rated at 93 dB. This 3 dB difference makes the Klipsch RP-500M a more sensitive speaker compared to OSD Nero MB5, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Nero MB5 can handle a max power of 100 watts RMS from the amp the whereas RP-500M has a max power handling value of 75 watts RMS, 25 watts less than the Nero MB5.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Nero MB5 features Single binding posts type posts and RP-500M has a Single binding posts type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-500M's Single binding posts terminals
Physical Specs

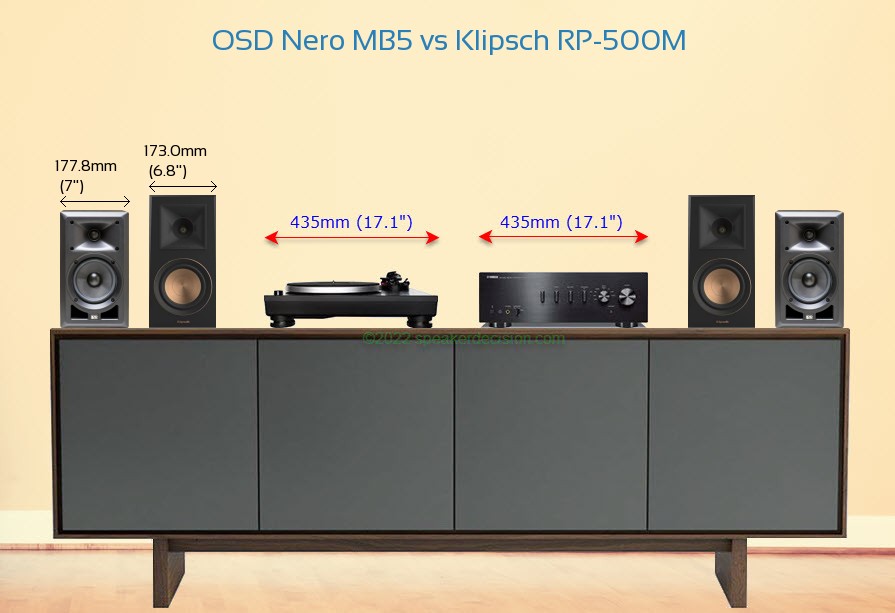

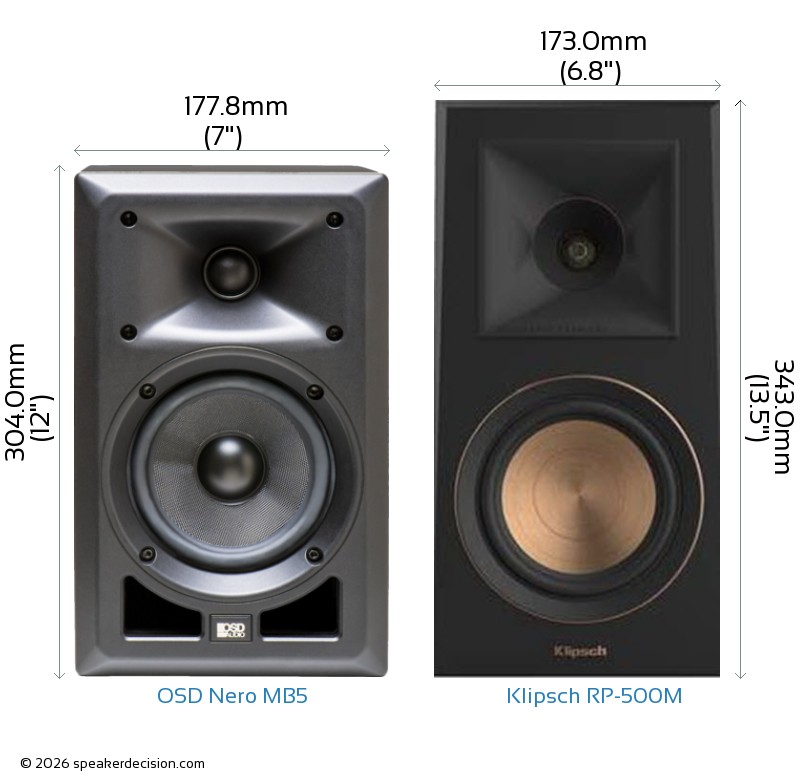

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare OSD Nero MB5's and Klipsch RP-500M's external dimensions. OSD Nero MB5 has external dimensions of 304.0 x 177.8 x 245.0mm ( 11-15/16inch x 7-5/16inch x 9-5/8inch ) whereas Klipsch RP-500M has external dimensions of 343.0 x 173.0 x 241.0mm ( 13.5 x 6.8 x 9.4inch) .
Klipsch RP-500M is 4.8mm narrower and 4mm less deeper than OSD Nero MB5 but it is also 39mm taller.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the OSD Nero MB5 is approximately 435.6cm2 / 67.5inch2 and base area of the Klipsch RP-500M is approximately 416.9cm2 / 64.6inch2. The Nero MB5 requires 4% more surface area than the RP-500M which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The OSD Nero MB5 weighs 5.45kg / 12lbs and the Klipsch RP-500M weighs 5.40kg / 11.9lbs. This makes the Nero MB5 1% heavier than the RP-500M.
Here is a comparison of how Nero MB5 and RP-500M's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of OSD Nero MB5?
Here are the items that are included inside the box of Nero MB5:
2 Bookshelf loudspeakers2 Grilles
What's in the Box of Klipsch RP-500M?
Here are the items that come with the RP-500M:
2 Bookshelf loudspeakers 2 Grilles (installed) 8 Self-adhesive rubber feet User Manual Important Safety Instructions Warranty Information
 Max Input Power |
100 watts
vs
75 watts
|
Handle more power from your amplifier |
 High Frequency Response |
30k Hz
vs
25k Hz
|
Generates higher frequency |
 Height |
304mm
vs
343mm
|
Easier to fit in smaller spaces |
 Sensitivity |
93 dB
vs
90 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Low Frequency Response |
48 Hz
vs
50 Hz
|
Generates deeper bass |
 Base Surface Area |
416cm2 (173x241mm)
vs
435cm2 (177x245mm)
|
Takes less floor space |
| General |
OSD Nero MB5 |
Klipsch Reference Premiere RP-500M |
| Brand |
OSD |
Klipsch |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
100 watts |
up to 75 watts |
| Sensitivity |
90 dB |
93 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
50-30k Hz |
48-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Fiberglass |
Cerametallic |
| Woofer Surround Material |
--- |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1500Hz |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
304.0mm (12") |
343.0mm (13.5") |
| Width |
177.8mm (7") |
173.0mm (6.8") |
| Depth |
245.0mm (9.6") |
241.0mm (9.5") |
| Weight |
5.45kg (12lbs) |
5.40kg (11.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
--- |
MDF/Wood-grain vinyl |
| Available Colors |
Black |
Ebony, Walnut, Piano Black |
| Mounting Bracket |
|
Keyhole |
| Recommended Stand Height |
---" |
28-30" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
--- |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
