In this review, we will be comparing W165 and R-5650-S II, two Passive In-wall speakers from Monitor Audio and Klipsch.
Let's have a brief look at the main features
of Monitor Audio W165 and Klipsch R-5650-S II first before getting into our more
detailed comparison.
| Key Specs | Monitor Audio W165 | Klipsch R-5650-S II |
|---|
| Brand | Monitor Audio
United Kingdom · founded 1972 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" Horn-loaded dome |
|---|
| Woofer | 6.5" Metal Matrix Polymer | 6.5" Cerametallic |
|---|
| Frequency response | 60-25kHz | 60-23kHz |
|---|
| Sensitivity | 88.5 dB | 92 dB |
|---|
| Impedance | 6 ohms | 8 ohms |
|---|
| Power range | 20-65 watts | up to 50 watts |
|---|
| Weight | 2.22kg / 4.9lbs | 3.27kg / 7.2lbs |
|---|
| Dimensions (H x W x D) | 13.0625" x 8.3750" x 3.6250"
332.0 x 213.0 x 93.0mm | 13.0000" x 8.0000" x 3.6875"
331.0 x 204.0 x 94.0mm |
|---|
What size room are the Monitor Audio W165 and Klipsch R-5650-S II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Monitor Audio W165 |
Klipsch R-5650-S II |
| Near-field |
Good |
Good |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
No way |
No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both W165 and R-5650-S II are 2-way speakers.
Monitor Audio W165Klipsch R-5650-S II
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Monitor Audio W165 |
Klipsch R-5650-S II |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
W165 features a 1" Hard-Dome Tweeter and 1 x 6.5" Metal Matrix Polymer Woofer. On the other hand, the R-5650-S II features a 1" Horn-loaded dome Tweeter and 1 x 6.5" Cerametallic Woofer with a Crossover frequency at 3400 Hz.
Frequency Response
W165 has a frequency range of 60-25kHz whereas R-5650-S II has a frequency range of 60-23kHz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
W165 is a 6 ohms speaker compared to the R-5650-S II which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. W165 sensitivity is rated at 88.5 dB and the R-5650-S II's is rated at 92 dB. This 3 dB difference makes the Klipsch R-5650-S II a more sensitive speaker compared to Monitor Audio W165, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
W165 can handle a max power of 65 watts RMS, whereas R-5650-S II has a max power handling value of 50 watts RMS, 15 watts less than the W165.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
W165 features Spring Posts type posts and R-5650-S II has a Spring Posts type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio W165's and Klipsch R-5650-S II's external dimensions. Monitor Audio W165 has external dimensions of 332.0 x 213.0 x 93.0mm (13.0625-inch x 8.3750-inch x 3.6250-inch) whereas Klipsch R-5650-S II has external dimensions of 331.0 x 204.0 x 94.0mm (13.0000-inch x 8.0000-inch x 3.6875-inch).
Klipsch R-5650-S II is 9mm narrower and 1mm shorter than Monitor Audio W165 but it is also 1mm deeper.

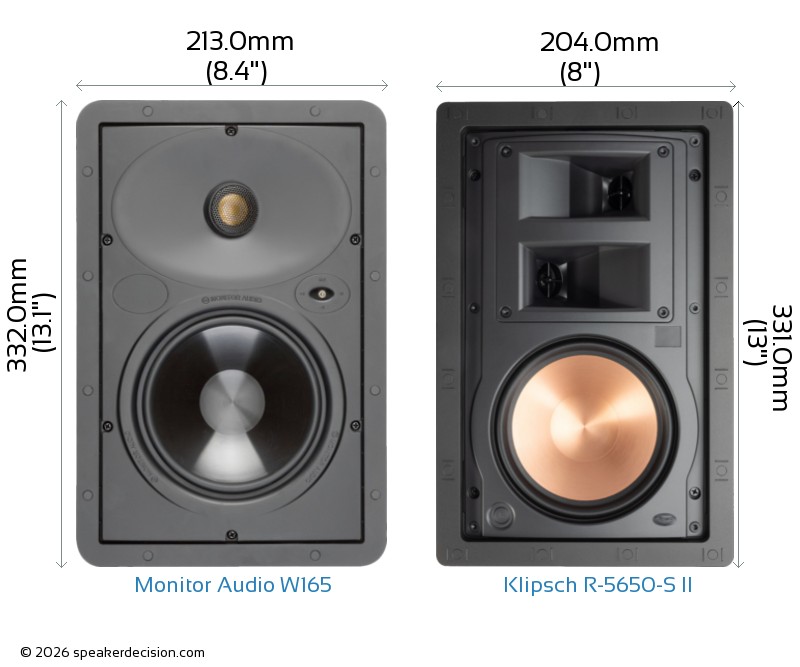

Below you can see the front view size comparison of Monitor Audio W165 and Klipsch R-5650-S II in scale.
Comparison image of Monitor Audio W165 and Klipsch R-5650-S II Size and External Dimensions
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Monitor Audio W165 weighs 2.22kg / 4.9lbs and the Klipsch R-5650-S II weighs 3.27kg / 7.2lbs. This makes the R-5650-S II 47% heavier than the W165.
Here is a comparison of how W165 and R-5650-S II's weights compare with the average, max and min weights in Passive In-wall class.
Weight
All In-wall Speakers
What's in the Box of Monitor Audio W165?
Here are the items that are included inside the box of W165:
- In-wall speaker
- Grille
- Paint skim
- Installation Guide
- Important Safety Instructions
- Cutout Template
What's in the Box of Klipsch R-5650-S II?
Here are the items that come with the R-5650-S II:
- In-wall speaker
- White metal mesh grille
- Cardboard template
- Owners Manual (En/Fr/Sp)
 Max Input Power |
65 watts
vs
50 watts
|
Handle more power from your amplifier |
 High Frequency Response |
25k Hz
vs
23k Hz
|
Generates higher frequency |
 Sensitivity |
92 dB
vs
89 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 Height |
331mm
vs
332mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
191cm2
vs
198cm2
|
Takes less floor space |
 Price per pair* |
458USD
vs
640USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Monitor Audio W165 |
Klipsch R-5650-S II |
| Brand |
Monitor Audio |
Klipsch |
| Speaker Type |
Passive In-wall Speaker |
Passive In-wall Speaker |
| Power Range |
20-65 watts |
up to 50 watts |
| Sensitivity |
88.5 dB |
92 dB |
| Impedance |
6 ohms |
8 ohms |
| Frequency Response |
60-25kHz |
60-23kHz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Metal Matrix Polymer |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
Horn-loaded dome |
| Aimable Tweeter |
Yes |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
3400 Hz |
Physical Specs |
|
|
| Height |
332.0mm (13.1") |
331.0mm (13") |
| Width |
213.0mm (8.4") |
204.0mm (8") |
| Depth |
93.0mm (3.7") |
94.0mm (3.7") |
| Weight |
2.22kg (4.9lbs) |
3.27kg (7.2lbs) |
| Enclosure |
In-wall |
In-wall |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
Lifetime |
Ltd. Lifetime |
| Labor Warranty |
Lifetime |
Ltd. Lifetime |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | evenly matched | Much the same reach (60Hz vs 60Hz). |
| Amplifier needs | B | Klipsch R-5650-S II is more sensitive (92dB vs 89dB), so it goes louder on the same amplifier. |
| Amplifier match | B | Klipsch R-5650-S II is the easier load at 8 ohms. |
| Headroom | A | Monitor Audio W165 takes more power (65W vs 50W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Price | B | Klipsch R-5650-S II is cheaper - $458 against $640, about 28% less. |
A Monitor Audio W165 B Klipsch R-5650-S II
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch R-5650-S II has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If your amplifier is modest, vintage or valve-based, Klipsch R-5650-S II is the safer partner - the other will want more current or more watts to sound its best. Think about the whole system, not just the speakers: the roughly $182 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
