In this review, we will be comparing CP-WT380IDC and Debut IW-D61-W, two Passive In-wall speakers from Monitor Audio and ELAC.
Let's have a brief look at the main features
of Monitor Audio CP-WT380IDC and ELAC Debut IW-D61-W first before getting into our more
detailed comparison.
Monitor Audio CP-WT380IDC Key Specs
- 3-way Design
- 1" Hard-Dome Tweeter
- 4" Midrange
- 8" C-CAM Woofer
- 50-30kHz Frequency Response
- 89 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-120watts
- Dimensions (H x W x D): 437.0" x 10.5625" x 3.8750"( 437.0 x 269.0 x 99.0mm )
ELAC Debut IW-D61-W Key Specs
- 2-way Design
- 1" Soft-Dome Tweeter
- 6.5" Woven Aramid-Fiber Woofer
- 45-20kHz Frequency Response
- 89 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-120watts
- Dimensions (H x W x D): 296.0" x 7.4375" x 3.9375"( 296.0 x 189.0 x 101.0mm )
What size room are the Monitor Audio CP-WT380IDC and ELAC Debut IW-D61-W speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Monitor Audio CP-WT380IDC |
ELAC Debut IW-D61-W |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Monitor Audio CP-WT380IDC and ELAC Debut IW-D61-W compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that CP-WT380IDC is a 3-way design whereas the Debut IW-D61-W is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Monitor Audio CP-WT380IDC |
ELAC Debut IW-D61-W |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 4-inch |
- |
|
Woofer
|
1 x 8-inch
|
1 x 6.5-inch
|
CP-WT380IDC features a 1" Hard-Dome Tweeter , a 4" Midrange and 1 x 8" C-CAM Woofer . On the other hand, the Debut IW-D61-W features a 1" Soft-Dome Tweeter and 1 x 6.5" Woven Aramid-Fiber Woofer .
Frequency Response
CP-WT380IDC has a frequency range of 50-30kHz whereas Debut IW-D61-W has a frequency range of 45-20kHz. With a minimum frequency of 45Hz, the Debut IW-D61-W can go significantly deeper on the low side and provide stronger bass compared to the CP-WT380IDC's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
Monitor Audio CP-WT380IDC
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
CP-WT380IDC and Debut IW-D61-W have the same Impedance of 6 ohms and their sensitivity is also same at 89 dB.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
CP-WT380IDC and Debut IW-D61-W has the same power range of 30-120 watts.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
CP-WT380IDC features Spring post type posts and Debut IW-D61-W has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs

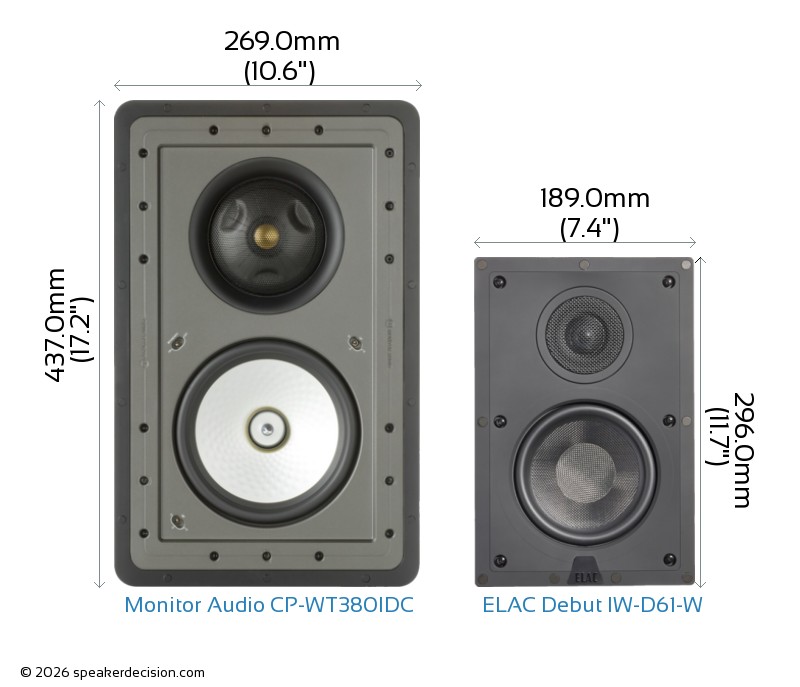

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio CP-WT380IDC's and ELAC Debut IW-D61-W's external dimensions. Monitor Audio CP-WT380IDC has external dimensions of 437.0 x 269.0 x 99.0mm ( 17.1875-inch x 10.5625-inch x 3.8750-inch) whereas ELAC Debut IW-D61-W has external dimensions of 296.0 x 189.0 x 101.0mm ( 11.6250-inch x 7.4375-inch x 3.9375-inch) .
ELAC Debut IW-D61-W is 80mm narrower and 141mm shorter than Monitor Audio CP-WT380IDC but it is also 2mm deeper.
What's in the Box of Monitor Audio CP-WT380IDC?
Here are the items that are included inside the box of CP-WT380IDC:
In-Wall speakerMagnetic grillePaint skimInstallation GuideImportant Safety InstructionsLimited Warranty/Registration CardMountingTemplate
What's in the Box of ELAC Debut IW-D61-W?
Here are the items that come with the Debut IW-D61-W:
In-wall speakerGrille
