In this review, we will be comparing CP-WT140LCR and W250-LCR, two Passive In-wall speakers by Monitor Audio Let's have a brief look at the main features
of Monitor Audio CP-WT140LCR and Monitor Audio W250-LCR first before getting into our more
detailed comparison.
Monitor Audio CP-WT140LCR Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 4" Polymer Woofer
- 60-25kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-100watts
- Dimensions (H x W x D): 299.0" x 7.1875" x 3.8125"( 299.0 x 183.0 x 97.0mm )
Monitor Audio W250-LCR Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 5" Metal Matrix Polymer Woofer
- 60-30kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-100watts
- Dimensions (H x W x D): 353.0" x 5.7500" x 4.0000"( 353.0 x 147.0 x 102.0mm )
What size room are the Monitor Audio CP-WT140LCR and Monitor Audio W250-LCR speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Monitor Audio CP-WT140LCR |
Monitor Audio W250-LCR |
| Near-field |
Average |
Average |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
Bad |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Monitor Audio CP-WT140LCR and Monitor Audio W250-LCR compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both CP-WT140LCR and W250-LCR are 2-way speakers.
| Driver |
Monitor Audio CP-WT140LCR |
Monitor Audio W250-LCR |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 4-inch
|
2 x 5-inch
|
CP-WT140LCR features a 1" Hard-Dome Tweeter and 2 x 4" Polymer Woofer . On the other hand, the W250-LCR features a 1" Hard-Dome Tweeter and 2 x 5" Metal Matrix Polymer Woofer .
Frequency Response
CP-WT140LCR has a frequency range of 60-25kHz whereas W250-LCR has a frequency range of 60-30kHz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
Monitor Audio CP-WT140LCR
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
CP-WT140LCR is a 6 ohms speaker compared to the W250-LCR which has a nominal impedance of 8 ohms.
On the other hand, they have the same sensitivity of 88 dBdB.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
CP-WT140LCR features Spring post type posts and W250-LCR has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs

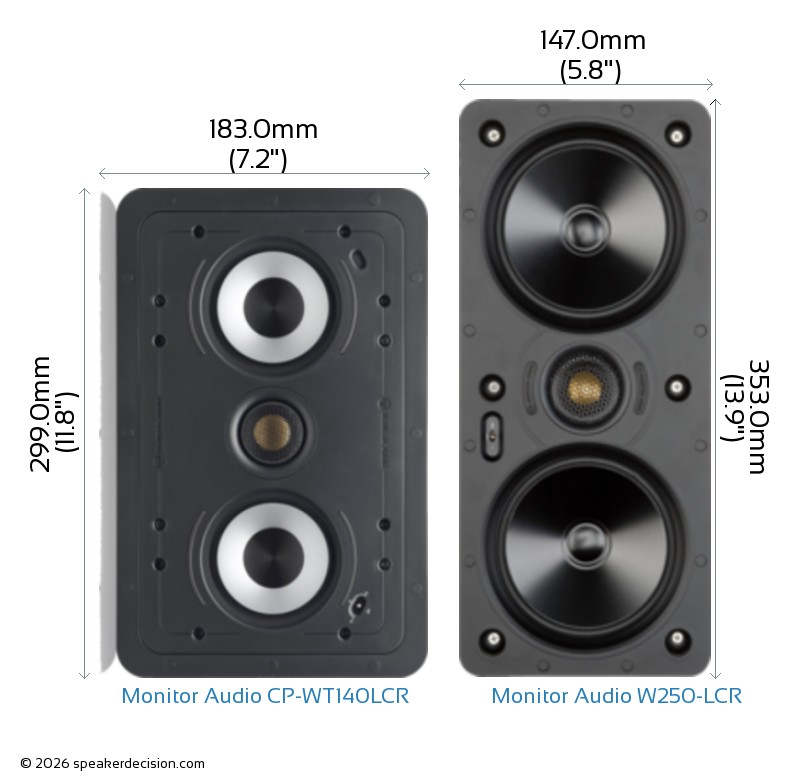

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio CP-WT140LCR's and Monitor Audio W250-LCR's external dimensions. Monitor Audio CP-WT140LCR has external dimensions of 299.0 x 183.0 x 97.0mm ( 11.7500-inch x 7.1875-inch x 3.8125-inch) whereas Monitor Audio W250-LCR has external dimensions of 353.0 x 147.0 x 102.0mm ( 13.8750-inch x 5.7500-inch x 4.0000-inch) .
Monitor Audio CP-WT140LCR is 54mm shorter and 5mm less deeper than Monitor Audio W250-LCR but it is also 36mm wider.
What's in the Box of Monitor Audio CP-WT140LCR?
Here are the items that are included inside the box of CP-WT140LCR:
In-wall LCR loudspeakerMagnetic grilleCosmetic scrimInstallation GuideImportant Safety InstructionsLimited Warranty/Registration CardMountingTemplate
What's in the Box of Monitor Audio W250-LCR?
Here are the items that come with the W250-LCR:
In-wall speakerGrillePaint skimInstallation GuideImportant Safety InstructionsCutout Template
