In this review, we will be comparing Motion XT F200 and 702 S3, two Passive Floor-standing speakers from MartinLogan and Bowers Wilkins. Let's have a brief look at the main features
of MartinLogan Motion XT F200 and B&W 702 S3 first before getting into our more
detailed comparison.
MartinLogan Motion XT F200 Key Specs
- 3-way Design
- 1.25 x 2.4" Folded Motion XT Tweeter
- 6.5" Midrange
- 3 x 8" Aluminum Woofer
- 27-25k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-600watts
- Weight:39.00kg
- Dimensions (H x W x D): 1289.0" x 13-3/4" x 16-1/2"( 1289 x 349 x 419mm )
B&W 702 S3 Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6.5" Aerofoil Woofer
- 6" Midrange
- 46-28k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-300watts
- Weight:33.46kg
- Dimensions (H x W x D): 1138.0" x 7.6" x 15.4"( 1138.0 x 192.0 x 391.0mm )
What size room are the MartinLogan Motion XT F200 and B&W 702 S3 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
MartinLogan Motion XT F200 |
B&W 702 S3 |
| Near-field |
Are you nuts? |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Good |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the MartinLogan Motion XT F200 and B&W 702 S3 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Motion XT F200 and 702 S3 are 3-way speakers.
| Driver |
MartinLogan Motion XT F200 |
B&W 702 S3 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1.25 x 2.4-inch
|
1-inch
|
|
Midrange
|
1 x 6.5-inch |
1 x 6-inch |
|
Woofer
|
3 x 8-inch
|
3 x 6.5-inch
|
Motion XT F200 features a 1.25 x 2.4" Folded Motion XT Tweeter , a 6.5" Midrange and 3 x 8" Aluminum Woofer with a Crossover frequency at 300Hz and 2600Hz. On the other hand, the 702 S3 features a 1" Tweeter , a 6" Midrange and 3 x 6.5" Aerofoil Woofer .
Frequency Response
Motion XT F200 has a frequency range of 27-25k Hz whereas 702 S3 has a frequency range of 46-28k Hz. With a minimum frequency of 27Hz, the Motion XT F200 can go significantly deeper on the low side and provide stronger bass compared to the 702 S3's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
MartinLogan Motion XT F200
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Motion XT F200 is a 4 ohms speaker compared to the 702 S3 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion XT F200 can provide this impedance level.
These two speakers also have different sensitivity levels. Motion XT F200 sensitivity is rated at 92 dB and the 702 S3's is rated at 90 dB. This 4 dB difference makes the MartinLogan Motion XT F200 a more sensitive speaker compared to B&W 702 S3, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Motion XT F200 can handle a max power of 600 watts RMS from the amp the whereas 702 S3 has a max power handling value of 300 watts RMS, 300 watts less than the Motion XT F200.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Motion XT F200 and 702 S3 features dual binding post speaker terminals for bi-amping or bi-wiring.
MartinLogan Motion XT F200's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
B&W 702 S3's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Motion XT F200 has a bottom firing port whereas 702 S3 has a rear firing ports. MartinLogan Motion XT F200's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to B&W 702 S3 with its rear-firing port.

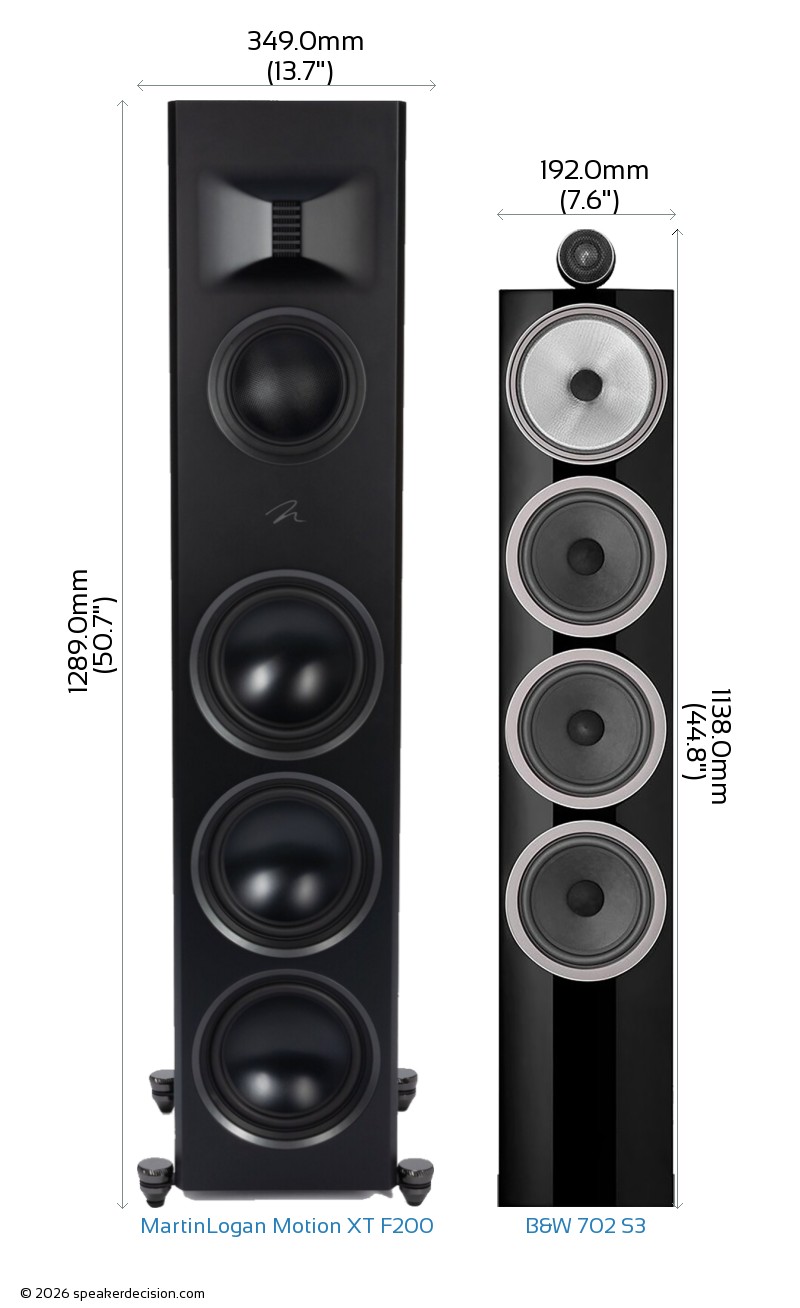

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Motion XT F200's and B&W 702 S3's external dimensions. MartinLogan Motion XT F200 has external dimensions of 1289 x 349 x 419mm ( 50-3/4inch x 13-3/4inch x 16-1/2inch ) whereas B&W 702 S3 has external dimensions of 1138.0 x 192.0 x 391.0mm ( 44.8-inch x 7.6-inch x 15.4-inch) .
MartinLogan Motion XT F200 is clearly the larger of the two speakers. Its body is 157mm wider, 151mm taller and 28mm deeper than B&W 702 S3.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Motion XT F200 is approximately 1462.3cm2 / 226.7inch2 and base area of the B&W 702 S3 is approximately 750.7cm2 / 116.4inch2. The Motion XT F200 requires 95% more surface area than the 702 S3 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The MartinLogan Motion XT F200 weighs 39.00kg / 85.8lbs and the B&W 702 S3 weighs 33.46kg / 73.6lbs. This makes the Motion XT F200 17% heavier than the 702 S3.
Here is a comparison of how Motion XT F200 and 702 S3's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
MartinLogan Motion XT F200
What's in the Box of B&W 702 S3?
Here are the items that come with the 702 S3:
Floorstanding loudspeakerGrillePlinth (base)2 Jumper-straps (pre-installed)Two-piece foam port plug4 Rubber feet4 Spike feet4 Lock-nuts4 Screws4 Washers4 Lock washersHex-keyManualBowers & Wilkins brochureWarranty Information
