In this review, we will be comparing Motion F10 and R700, two Passive Floor-standing speakers from MartinLogan and Polk Audio.
Let's have a brief look at the main features
of MartinLogan Motion F10 and Polk R700 first before getting into our more
detailed comparison.
MartinLogan Motion F10 Key Specs
- 3-way Design
- 1.0 x 1.4" Folded Motion Ribbon Tweeter
- 5.5" Midrange
- 2 x 5.5" Aluminum Woofer
- 38-25k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-250watts
- Weight:22.90kg
- Dimensions (H x W x D): 971.0" x 11-1/4" x 13-1/4"( 971 x 286 x 336mm )
Polk R700 Key Specs
- 3-way Design
- 1" Pinnacle Ring Radiator Tweeter
- 6.5" Midrange
- 2 x 8" Polypropylene Woofer
- 6.5" Midrange
- 38-38k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-300watts
- Weight:35.90kg
- Dimensions (H x W x D): 1143.8" x 12.6" x 16.9"( 1143.8 x 320.7 x 428.3mm )
What size room are the MartinLogan Motion F10 and Polk R700 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
MartinLogan Motion F10 |
Polk R700 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the MartinLogan Motion F10 and Polk R700 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Motion F10 and R700 are 3-way speakers.
| Driver |
MartinLogan Motion F10 |
Polk R700 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1.0 x 1.4-inch
|
1-inch
|
|
Midrange
|
1 x 5.5-inch |
1 x 6.5-inch |
|
Woofer
|
2 x 5.5-inch
|
2 x 8-inch
|
Motion F10 features a 1.0 x 1.4" Folded Motion Ribbon Tweeter , a 5.5" Midrange and 2 x 5.5" Aluminum Woofer with a Crossover frequency at 280Hz and 3000Hz. On the other hand, the R700 features a 1" Pinnacle Ring Radiator Tweeter , a 6.5" Midrange and 2 x 8" Polypropylene Woofer with a Crossover frequency at 350Hz and 2700Hz.
Frequency Response
Motion F10 has a frequency range of 38-25k Hz whereas R700 has a frequency range of 38-38k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Motion F10 is a 4 ohms speaker compared to the R700 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion F10 can provide this impedance level.
These two speakers also have different sensitivity levels. Motion F10 sensitivity is rated at 92 dB and the R700's is rated at 88 dB. This 4 dB difference makes the MartinLogan Motion F10 a more sensitive speaker compared to Polk R700, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Motion F10 can handle a max power of 300 watts RMS from the amp the whereas Motion F10 has a max power handling value of 250 watts RMS , 50 watts less than the R700.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Motion F10 and R700 features dual binding post speaker terminals for bi-amping or bi-wiring.
MartinLogan Motion F10's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Polk R700's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both Motion F10 and R700 have bottom firing ports.
Polk R700 Port
Physical Specs

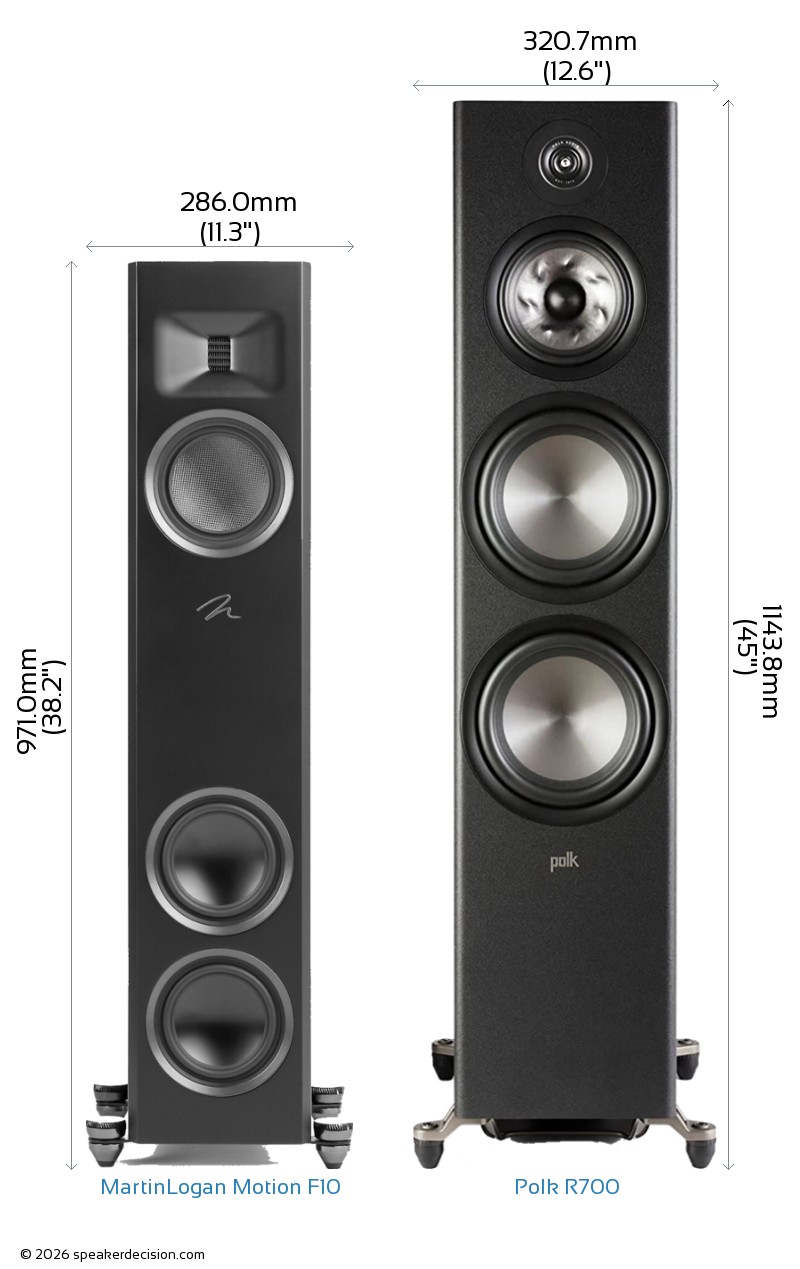

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Motion F10's and Polk R700's external dimensions. MartinLogan Motion F10 has external dimensions of 971 x 286 x 336mm ( 38-1/4inch x 11-1/4inch x 13-1/4inch ) whereas Polk R700 has external dimensions of 1143.8 x 320.7 x 428.3mm ( 45 x 12.6 x 16.9inch) .
Polk R700 is clearly the larger of the two speakers. Its body is 34.7mm wider, 172.8mm taller and 92.3mm deeper than MartinLogan Motion F10.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Motion F10 is approximately 961.0cm2 / 149.0inch2 and base area of the Polk R700 is approximately 1373.6cm2 / 212.9inch2. The Motion F10 requires 30% less surface area than the R700 which gives it a small advantage on placement in tight spaces.
