In this review, we will be comparing MartinLogan Foundation F2 and Concord, two Passive Floor-standing speakers from MartinLogan and KLH. Let's have a brief look at the main features
of MartinLogan Foundation F2 and KLH Concord first before getting into our more
detailed comparison.
In the following sections, we will get into more detail in order to better understand how the MartinLogan Foundation F2 and KLH Concord compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that MartinLogan Foundation F2 is a 3-way design whereas the Concord is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
MartinLogan Foundation F2 |
KLH Concord |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.5-inch |
- |
|
Woofer
|
3 x 6.5-inch
|
2 x 6.5-inch
|
MartinLogan Foundation F2 features a 1" Gen2 Obsidian Folded Motion Ribbon Tweeter , a 5.5" Midrange and 3 x 6.5" Aluminum Woofer with a Crossover frequency at 330 Hz - 3600 Hz. On the other hand, the Concord features a 1" anodized aluminum Tweeter and 2 x 6.5" Kevlar Woofer .
Frequency Response
MartinLogan Foundation F2 has a frequency range of 36-23k Hz whereas Concord has a frequency range of 28-23k Hz. With a minimum frequency of 28Hz, the Concord can go significantly deeper on the low side and provide stronger bass compared to the MartinLogan Foundation F2's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
MartinLogan Foundation F2
High Frequency
Floor-standing Speakers
MartinLogan Foundation F2
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
MartinLogan Foundation F2 is a 4 ohms speaker compared to the Concord which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the MartinLogan Foundation F2 can provide this impedance level.
These two speakers also have different sensitivity levels. MartinLogan Foundation F2 sensitivity is rated at 92 dB and the Concord's is rated at 94 dB. This 2 dB difference makes the KLH Concord a more sensitive speaker compared to MartinLogan Foundation F2, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
MartinLogan Foundation F2
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
MartinLogan Foundation F2 can handle a max power of 200 watts RMS from the amp the whereas Concord has a max power handling value of watts RMS, 200 watts less than the MartinLogan Foundation F2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
MartinLogan Foundation F2 features 5-Way post type posts and Concord has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
MartinLogan Foundation F2's Binding post terminals
KLH Concord's 5-Way post terminals
Physical Specs

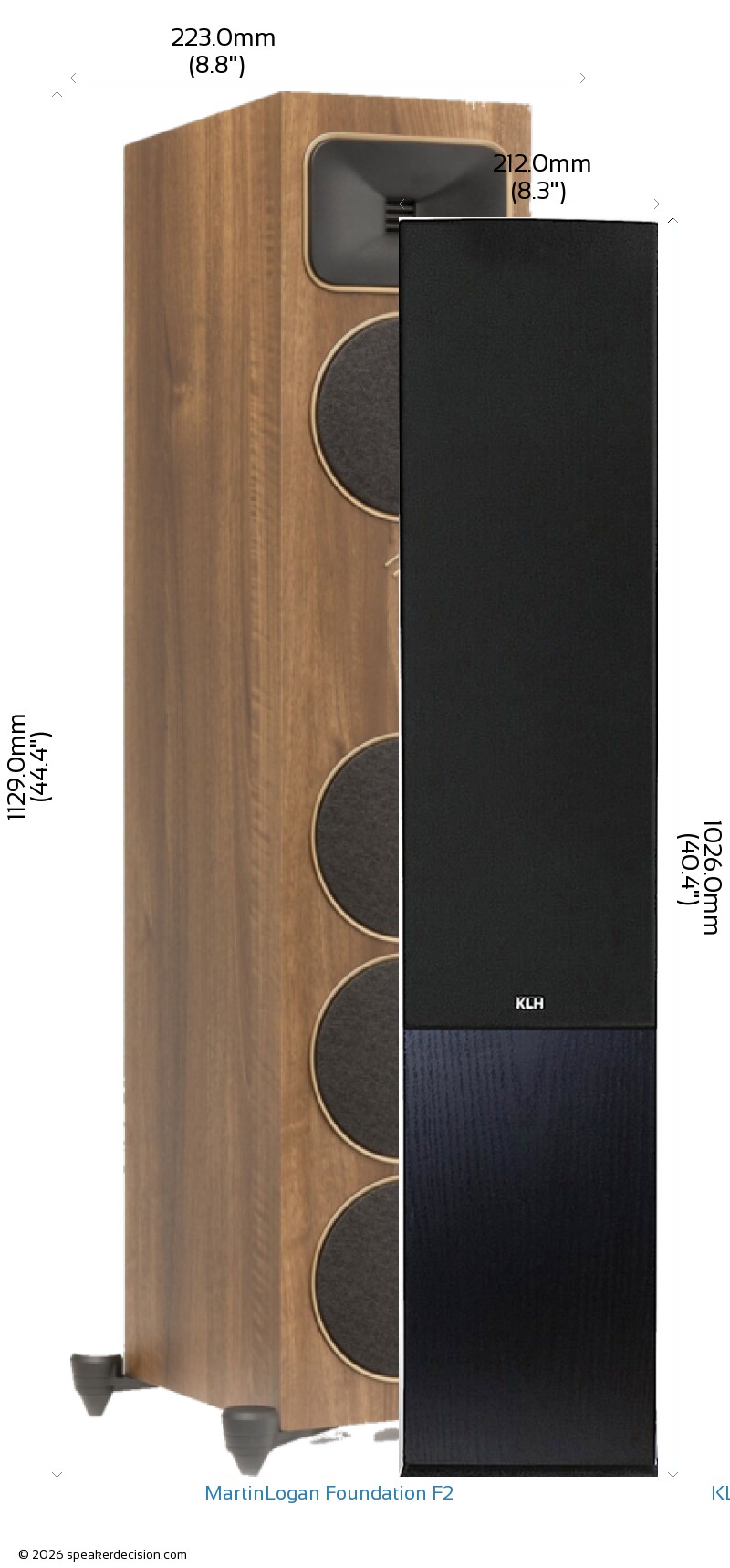

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Foundation F2's and KLH Concord's external dimensions. MartinLogan Foundation F2 has external dimensions of 1129.0 x 223.0 x 407.0mm ( 44-7/16inch x 8-3/4inch x 16inch ) whereas KLH Concord has external dimensions of 1026.0 x 212.0 x 380.0mm ( 40-3/8 x 8-5/16 x 14-15/16inch) .
MartinLogan Foundation F2 is clearly the larger of the two speakers. Its body is 11mm wider, 103mm taller and 27mm deeper than KLH Concord.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Foundation F2 is approximately 907.6cm2 / 140.7inch2 and base area of the KLH Concord is approximately 805.6cm2 / 124.9inch2. The MartinLogan Foundation F2 requires 13% more surface area than the Concord which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The MartinLogan Foundation F2 weighs 23.86kg / 52.5lbs and the KLH Concord weighs 20.45kg / 45lbs. This makes the MartinLogan Foundation F2 17% heavier than the Concord.
Here is a comparison of how MartinLogan Foundation F2 and Concord's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
MartinLogan Foundation F2
What's in the Box of KLH Concord?
Here are the items that come with the Concord:
Floorstanding loudspeakerGrille4 Spike feet (w/ locking nut attached)4 Protective discs4 Rubber feetPort plugManualATTENTION! note
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Number of Woofers |
3
vs
2
|
More woofers |
 Sensitivity |
94 dB
vs
92 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
| Low Frequency Response |
28 Hz
vs
36 Hz
|
Generates deeper bass |
 Height |
1026mm
vs
1129mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
805cm2 (212x380mm)
vs
907cm2 (223x407mm)
|
Takes less floor space |
 Price per pair* |
1000USD
vs
1999USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
MartinLogan Foundation F2 |
KLH Concord |
| Brand |
MartinLogan |
KLH |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 200 watts |
up to 225 watts |
| Sensitivity |
92 dB |
94 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
36-23k Hz |
28-23k Hz |
Drivers |
|
|
| Woofer Quantity |
3 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Aluminum |
Kevlar |
| Woofer Surround Material |
n/a |
Butyl Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Folded Motion Ribbon |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.5" |
No |
| Crossover Frequency |
330 Hz - 3600 Hz |
n/a |
| Firing Direction |
rear |
n/a |
Physical Specs |
|
|
| Height |
1129.0mm (44.4") |
1026.0mm (40.4") |
| Width |
223.0mm (8.8") |
212.0mm (8.3") |
| Depth |
407.0mm (16") |
380.0mm (15") |
| Weight |
23.86kg (52.5lbs) |
20.45kg (45lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
n/a |
MDF/Wood-grain vinyl |
| Available Colors |
Walnut,Black,Satin White |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 years |
10 Years |
| Labor Warranty |
5 years |
10 Years |
