In this review, we will be comparing Foundation F1 and Imagine X2T, two Passive Floor-standing speakers from MartinLogan and PSB.
Let's have a brief look at the main features
of MartinLogan Foundation F1 and PSB Imagine X2T first before getting into our more
detailed comparison.
| Key Specs | MartinLogan Foundation F1 | PSB Imagine X2T |
|---|
| Brand | MartinLogan
United States · founded 1982 | PSB
Canada · founded 1972 |
|---|
| Design | 3-way | 3-way |
|---|
| Tweeter | 1" Folded Motion Ribbon | 1" Dome |
|---|
| Midrange | 5.5" | 5.25" |
|---|
| Woofer | 3 x 5.5" Aluminum | 2 x 6.2" Clay/Ceramic/Poly |
|---|
| Frequency response | 41-23k Hz | 30-23k Hz |
|---|
| Sensitivity | 92 dB | 90 dB |
|---|
| Impedance | 4 ohms | 8 ohms |
|---|
| Power range | up to 200 watts | 20-200 watts |
|---|
| Weight | 21.14kg / 46.5lbs | 23.60kg / 51.9lbs |
|---|
| Dimensions (H x W x D) | 41-7/16" x 8-3/8" x 14-7/16"
1053.0 x 213.0 x 367.0mm | 40-1/8" x 9" x 16-3/4"
1020.0 x 229.0 x 426.0mm |
|---|
What size room are the MartinLogan Foundation F1 and PSB Imagine X2T speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
MartinLogan Foundation F1 |
PSB Imagine X2T |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Foundation F1 and Imagine X2T are 3-way speakers.
MartinLogan Foundation F1PSB Imagine X2T
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
MartinLogan Foundation F1 |
PSB Imagine X2T |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.5-inch |
1 x 5.25-inch |
|
Woofer
|
3 x 5.5-inch
|
2 x 6.2-inch
|
Foundation F1 features a 1" Gen2 Obsidian Folded Motion Ribbon Tweeter, a 5.5" Midrange and 3 x 5.5" Aluminum Woofer with a Crossover frequency at 240 Hz - 3700 Hz. On the other hand, the Imagine X2T features a 1" titanium with neodymium magnets Dome Tweeter, a 5.25" Midrange and 2 x 6.2" Clay/Ceramic/Poly Woofer with a Crossover frequency at 500Hz and 2200Hz.
Frequency Response
Foundation F1 has a frequency range of 41-23k Hz whereas Imagine X2T has a frequency range of 30-23k Hz. With a minimum frequency of 30Hz, the Imagine X2T can go significantly deeper on the low side and provide stronger bass compared to the Foundation F1's min frequency of 41Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Foundation F1 is a 4 ohms speaker compared to the Imagine X2T which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Foundation F1 can provide this impedance level.
These two speakers also have different sensitivity levels. Foundation F1 sensitivity is rated at 92 dB and the Imagine X2T's is rated at 90 dB. This 2 dB difference makes the MartinLogan Foundation F1 a more sensitive speaker compared to PSB Imagine X2T, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 200 watts RMS, though Foundation F1 is rated up to 200 watts and Imagine X2T 20-200 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
MartinLogan Foundation F1
Input Type and Bi-Amping / Bi-Wiring
Imagine X2T features 5-Way post posts which make bi-amping or bi-wiring possible. Foundation F1 has a Binding post which doesn't feature bi-amping/bi-wiring.
MartinLogan Foundation F1's Binding post terminals
PSB Imagine X2T's 5-Way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Foundation F1 has a rear firing port whereas Imagine X2T has a front firing ports. PSB Imagine X2T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to MartinLogan Foundation F1 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Foundation F1's and PSB Imagine X2T's external dimensions. MartinLogan Foundation F1 has external dimensions of 1053.0 x 213.0 x 367.0mm (41-7/16inch x 8-3/8inch x 14-7/16inch) whereas PSB Imagine X2T has external dimensions of 1020.0 x 229.0 x 426.0mm (40-1/8 x 9 x 16-3/4inch).
MartinLogan Foundation F1 is 16mm narrower and 59mm less deeper than PSB Imagine X2T but it is also 33mm taller.

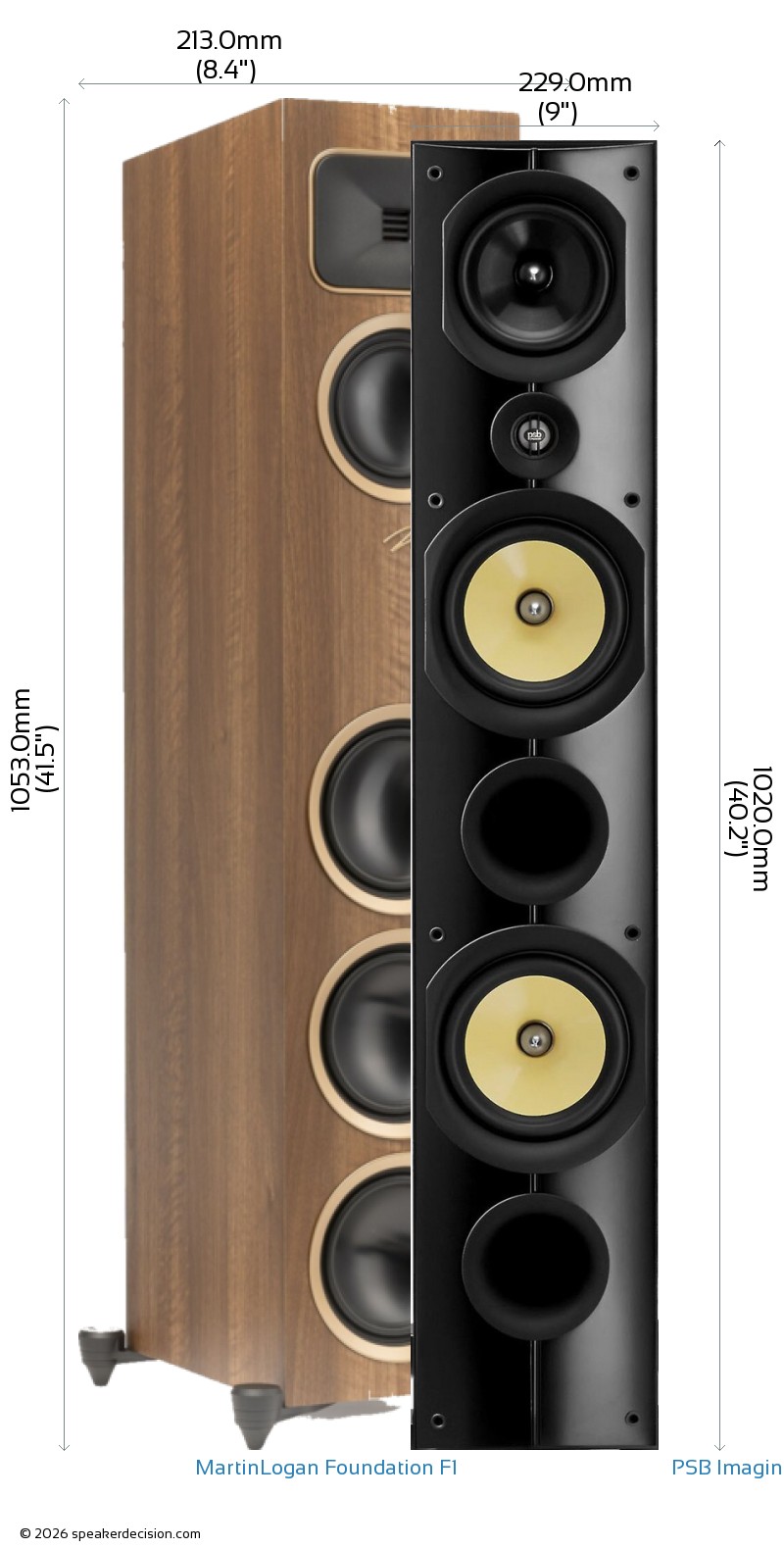

Below you can see the front view size comparison of MartinLogan Foundation F1 and PSB Imagine X2T in scale.
Comparison image of MartinLogan Foundation F1 and PSB Imagine X2T Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Foundation F1 is approximately 781.7cm2 / 121.2inch2 and base area of the PSB Imagine X2T is approximately 975.5cm2 / 151.2inch2. The Foundation F1 requires 20% less surface area than the Imagine X2T which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The MartinLogan Foundation F1 weighs 21.14kg / 46.5lbs and the PSB Imagine X2T weighs 23.60kg / 51.9lbs. This makes the Imagine X2T 12% heavier than the Foundation F1.
Here is a comparison of how Foundation F1 and Imagine X2T's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
MartinLogan Foundation F1
What's in the Box of PSB Imagine X2T?
Here are the items that come with the Imagine X2T:
- Floor-standing speaker
- Grille
- 4 Rubber feet
- 4 Spiked Feet
- Wrench
- Quick Start Guide
- Warranty Card
 Sensitivity |
92 dB
vs
90 dB
|
Play louder with same amount of amplification power |
 Number of Woofers |
3
vs
2
|
More woofers |
 Base Surface Area |
781cm2
vs
975cm2
|
Takes less floor space |
 Price per pair* |
1499USD
vs
1500USD
|
costs less (*prices may change depending on the seller, location and time) |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
|
Woofer Size |
6.2 inches
vs
5.5 inches
|
Larger woofer |
|
Low Frequency Response |
30 Hz
vs
41 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Height |
1020mm
vs
1053mm
|
Easier to fit in smaller spaces |
| General |
MartinLogan Foundation F1 |
PSB Imagine X2T |
| Brand |
MartinLogan |
PSB |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 200 watts |
20-200 watts |
| Sensitivity |
92 dB |
90 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
41-23k Hz |
30-23k Hz |
Drivers |
|
|
| Woofer Quantity |
3 |
2 |
| Woofer Size |
5.5" |
6.2" |
| Woofer Composition |
Aluminum |
Clay/Ceramic/Poly |
| Woofer Surround Material |
n/a |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Folded Motion Ribbon |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.5" |
5.25" |
| Crossover Frequency |
240 Hz - 3700 Hz |
500Hz and 2200Hz |
| Firing Direction |
rear |
front |
Physical Specs |
|
|
| Height |
1053.0mm (41.5") |
1020.0mm (40.2") |
| Width |
213.0mm (8.4") |
229.0mm (9") |
| Depth |
367.0mm (14.4") |
426.0mm (16.8") |
| Weight |
21.14kg (46.5lbs) |
23.60kg (51.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
n/a |
MDF/Wood-grain |
| Available Colors |
Walnut,Black,Satin White |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 years |
5 Years |
| Labor Warranty |
5 years |
5 Years |
A generation apart: MartinLogan Foundation F1 is the newer design, against a 2013 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | B | PSB Imagine X2T digs deeper - 30Hz against 41Hz. |
| Amplifier needs | A | MartinLogan Foundation F1 is more sensitive (92dB vs 90dB), so it goes louder on the same amplifier. |
| Amplifier match | B | PSB Imagine X2T is the easier load at 8 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | evenly matched | Similar power handling (200W vs 200W). |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | PSB Imagine X2T: bi-amping. MartinLogan Foundation F1 sits in a wider range (7 models), so a matched surround system is easier later. |
| Price | evenly matched | Much the same money ($1,499 vs $1,500 a pair). |
A MartinLogan Foundation F1 B PSB Imagine X2T
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
PSB Imagine X2T has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 41Hz anyway, so judge these on the other rows instead. If your amplifier is modest, vintage or valve-based, MartinLogan Foundation F1 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
