In this review, we will be comparing R-50C and R-34C, two Passive Center Channel speakers by Klipsch Let's have a brief look at the main features
of Klipsch R-50C and Klipsch R-34C first before getting into our more
detailed comparison.
R-50C and R-34C are members of Klipsch's Reference (R) Center series of speakers. Below you can find the loudspeakers from this series.
Klipsch Reference (R) Center Series History
What size room are the Klipsch R-50C and Klipsch R-34C speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Klipsch R-50C and Klipsch R-34C compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both R-50C and R-34C are 2-way speakers.
| Driver |
Klipsch R-50C |
Klipsch R-34C |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.25-inch
|
4 x 3.5-inch
|
R-50C features a 1" LTS (Linear Travel Suspension) titanium diaphragm Tractrix Horn Tweeter and 2 x 5.25" spun-copper TCP Woofer with a Crossover frequency at 1650 Hz. On the other hand, the R-34C features a 1" aluminum Tractrix horn Tweeter and 4 x 3.5" copper spun IMG Woofer .
Frequency Response
R-50C has a frequency range of 90-21k Hz whereas R-34C has a frequency range of 82-21k Hz. With a minimum frequency of 82Hz, the R-34C can go significantly deeper on the low side and provide stronger bass compared to the R-50C's min frequency of 90Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R-50C and R-34C have the same Impedance of 8 ohms and their sensitivity is also same at 96 dB.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
R-50C and R-34C has the same power range of up to 100 watts.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
R-50C features Binding post type posts and R-34C has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch R-50C's Binding post terminals
Klipsch R-34C's Binding post terminals
Physical Specs

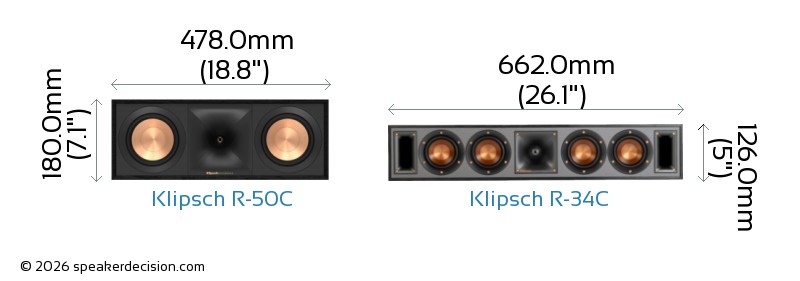

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-50C's and Klipsch R-34C's external dimensions. Klipsch R-50C has external dimensions of 180.0 x 478.0 x 212.0mm ( 7-1/16inch x 18-13/16inch x 8-5/16inch ) whereas Klipsch R-34C has external dimensions of 126.0 x 662.0 x 159.0mm ( 4-15/16 x 26-1/16 x 6-1/4inch) .
Klipsch R-34C is 54mm shorter and 53mm less deeper than Klipsch R-50C but it is also 184mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-50C is approximately 1013.4cm2 / 157.1inch2 and base area of the Klipsch R-34C is approximately 1052.6cm2 / 163.2inch2. The R-50C requires 4% less surface area than the R-34C which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch R-50C weighs 6.40kg / 14.1lbs and the Klipsch R-34C weighs 5.91kg / 13lbs. This makes the R-50C 8% heavier than the R-34C.
Here is a comparison of how R-50C and R-34C's weights compare with the average, max and min weights in Passive Center Channel class.
Weight
All Center Channel Speakers
What's in the Box of Klipsch R-50C?
Here are the items that are included inside the box of R-50C:
Center-channel loudspeakerGrilleUser ManualImportant Safety InstructionsWarranty Information
What's in the Box of Klipsch R-34C?
Here are the items that come with the R-34C:
Center-channel loudspeakerGrille (installed)8 Self-adhesive rubber feetQuick Setup GuideImportant Safety InstructionsWarranty Information
 Woofer Size |
5.25 inches
vs
3.5 inches
|
Larger woofer |
 Base Surface Area |
1013cm2 (478x212mm)
vs
1052cm2 (662x159mm)
|
Takes less floor space |
| Number of Woofers |
4
vs
2
|
More woofers |
| Low Frequency Response |
82 Hz
vs
90 Hz
|
Generates deeper bass |
 Height |
126mm
vs
180mm
|
Easier to fit in smaller spaces |
| General |
Klipsch Reference R-50C |
Klipsch Reference R-34C |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Center channel speaker |
Center channel speaker |
| Power Range |
up to 100 watts |
up to 100 watts |
| Sensitivity |
96 dB |
96 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.5 ohms |
n/a |
| Frequency Response |
90-21k Hz |
82-21k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
4 |
| Woofer Size |
5.25" |
3.5" |
| Woofer Composition |
spun-copper TCP |
copper spun IMG |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix Horn |
Tractrix horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
N/A" |
| Crossover Frequency |
1650 Hz |
n/a |
Physical Specs |
|
|
| Height |
180.0mm (7.1") |
126.0mm (5") |
| Width |
478.0mm (18.8") |
662.0mm (26.1") |
| Depth |
212.0mm (8.3") |
159.0mm (6.3") |
| Weight |
6.40kg (14.1lbs) |
5.91kg (13lbs) |
| Enclosure |
Sealed |
Bass Reflex |
| Finish |
Textured Wood Grain Vinyl |
textured wood grain viny |
| Available Colors |
Black,White,Mocha |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
n/a |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
