In this review, we will be comparing RP-504C II and R-52C, two Passive Center Channel speakers by Klipsch.
Let's have a brief look at the main features
of Klipsch RP-504C II and Klipsch R-52C first before getting into our more
detailed comparison.
| Key Specs | Klipsch RP-504C II | Klipsch R-52C |
|---|
| Brand | Klipsch
United States · founded 1946 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Tractrix Horn | 1" Tractrix horn |
|---|
| Woofer | 4 x 5.25" Cerametallic cone | 2 x 5.25" copper spun IMG |
|---|
| Frequency response | 50-25k Hz | 89-21k Hz |
|---|
| Sensitivity | 96 dB | 95 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 150 watts | up to 100 watts |
|---|
| Weight | 16.50kg / 36.3lbs | 3.18kg / 7lbs |
|---|
| Dimensions (H x W x D) | 6-15/16" x 32-3/16" x 15-1/8"
177.0 x 818.0 x 385.0mm | 7-1/16" x 18-13/16" x 7-11/16"
180.0 x 478.0 x 196.0mm |
|---|
What size room are the Klipsch RP-504C II and Klipsch R-52C speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-504C II |
Klipsch R-52C |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-504C II and R-52C are 2-way speakers.
Klipsch RP-504C IIKlipsch R-52C
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Klipsch RP-504C II |
Klipsch R-52C |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 5.25-inch
|
2 x 5.25-inch
|
RP-504C II features a 1" titanium Tractrix Horn Tweeter and 4 x 5.25" Cerametallic cone Woofer with a Crossover frequency at 1950 Hz. On the other hand, the R-52C features a 1" aluminum Tractrix horn Tweeter and 2 x 5.25" copper spun IMG Woofer.
Frequency Response
RP-504C II has a frequency range of 50-25k Hz whereas R-52C has a frequency range of 89-21k Hz. With a minimum frequency of 50Hz, the RP-504C II can go significantly deeper on the low side and provide stronger bass compared to the R-52C's min frequency of 89Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-504C II and R-52C have the same Impedance of 8 ohms but where they differ is the sensitivity levels. RP-504C II sensitivity is rated at 96 dB and the R-52C's is at 95 dB. This 1 dB difference makes the Klipsch RP-504C II a more sensitive speaker compared to Klipsch R-52C, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
RP-504C II can handle a max power of 150 watts RMS, whereas R-52C has a max power handling value of 100 watts RMS, 50 watts less than the RP-504C II.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
RP-504C II features Binding post type posts and R-52C has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-504C II's Binding post terminals
Klipsch R-52C's Binding post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-504C II's and Klipsch R-52C's external dimensions. Klipsch RP-504C II has external dimensions of 177.0 x 818.0 x 385.0mm (6-15/16 x 32-3/16 x 15-1/8inch) whereas Klipsch R-52C has external dimensions of 180.0 x 478.0 x 196.0mm (7-1/16 x 18-13/16 x 7-11/16inch).
Klipsch R-52C is 340mm narrower and 189mm less deeper than Klipsch RP-504C II but it is also 3mm taller.

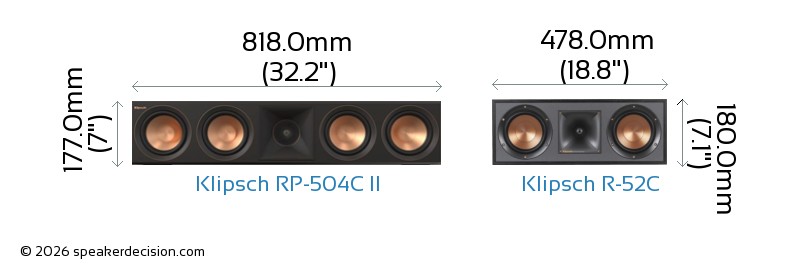

Below you can see the front view size comparison of Klipsch RP-504C II and Klipsch R-52C in scale.
Comparison image of Klipsch RP-504C II and Klipsch R-52C Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-504C II is approximately 3149.3cm2 / 488.1inch2 and base area of the Klipsch R-52C is approximately 936.9cm2 / 145.2inch2. The RP-504C II requires 236% more surface area than the R-52C which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch RP-504C II weighs 16.50kg / 36.3lbs and the Klipsch R-52C weighs 3.18kg / 7lbs. This makes the RP-504C II 419% heavier than the R-52C.
Here is a comparison of how RP-504C II and R-52C's weights compare with the average, max and min weights in Passive Center Channel class.
Weight
All Center Channel Speakers
What's in the Box of Klipsch RP-504C II?
Here are the items that are included inside the box of RP-504C II:
- Center channel loudspeaker
- Grille
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-52C?
Here are the items that come with the R-52C:
- Center-channel loudspeaker
- Grille (installed)
- 4 Self-adhesive rubber feet
- Quick Setup Guide
- Important Safety Instructions
- Warranty Information
 Max Input Power |
150 watts
vs
100 watts
|
Handle more power from your amplifier |
 Sensitivity |
96 dB
vs
95 dB
|
Play louder with same amount of amplification power |
 Number of Woofers |
4
vs
2
|
More woofers |
|
Low Frequency Response |
50 Hz
vs
89 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
21k Hz
|
Generates higher frequency |
 Height |
177mm
vs
180mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
936cm2
vs
3149cm2
|
Takes less floor space |
 Price per pair* |
349USD
vs
799USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Klipsch Reference Premiere RP-504C II |
Klipsch Reference R-52C |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Center channel speaker |
Center channel speaker |
| Power Range |
up to 150 watts |
up to 100 watts |
| Sensitivity |
96 dB |
95 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
50-25k Hz |
89-21k Hz |
Drivers |
|
|
| Woofer Quantity |
4 |
2 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Cerametallic cone |
copper spun IMG |
| Woofer Surround Material |
Rubber |
n/a |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix Horn |
Tractrix horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
1950 Hz |
n/a |
| Firing Direction |
rear |
n/a |
Physical Specs |
|
|
| Height |
177.0mm (7") |
180.0mm (7.1") |
| Width |
818.0mm (32.2") |
478.0mm (18.8") |
| Depth |
385.0mm (15.2") |
196.0mm (7.7") |
| Weight |
16.50kg (36.3lbs) |
3.18kg (7lbs) |
| Enclosure |
Bass Reflex |
Acoustic Suspension |
| Finish |
MDF/Wood-grain vinyl |
wood grain vinyl |
| Available Colors |
Walnut, Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
n/a |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Klipsch RP-504C II costs roughly 2.3x what Klipsch R-52C does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | A | Klipsch RP-504C II digs deeper - 50Hz against 89Hz. |
| Amplifier needs | evenly matched | Similar sensitivity (96dB vs 95dB) - both want much the same power. |
| Headroom | A | Klipsch RP-504C II takes more power (150W vs 100W) - more in hand in a big room. |
| Size | depends | Klipsch R-52C is easier to place; Klipsch RP-504C II is bigger, which usually goes with fuller bass. Your room decides. |
| Cabinet | depends | Ported vs Sealed. Sealed is tighter and happier near a wall; ported digs lower but wants space behind it. |
| Expandability | depends | Neither adds bi-amping, a sub output or height drivers. Klipsch RP-504C II sits in a wider range (10 models), so a matched surround system is easier later. |
| Price | B | Klipsch R-52C is cheaper - $349 against $799, about 56% less; arguably a different class. |
A Klipsch RP-504C II B Klipsch R-52C
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: Klipsch RP-504C II measures better, Klipsch R-52C costs about about 129% more% less. Whether that gap is worth the money is the call only you can make - and in a normal room it is often smaller than the numbers suggest. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 89Hz anyway, which makes the cheaper Klipsch R-52C much easier to justify. Match it to your room: we rate Klipsch RP-504C II the better fit for a mid-size room and a large room, and Klipsch R-52C for near-field listening and a small room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
