In this review, we will be comparing KLH Model Seven and Kendall, two Passive Floor-standing speakers by KLH
Let's have a brief look at the main features
of KLH Model Seven and KLH Kendall first before getting into our more
detailed comparison.
KLH Model Seven Key Specs
- 1" Hard-Dome Tweeter
- 13" Pulp-Paper Woofer
- 38-20k Hz Frequency Response
- 91 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-250watts
- Weight:35.82kg
- Dimensions (H x W x D): 1042.0" x 18" x 12-1/4"( 1042.0 x 458.0 x 312.0mm )
KLH Kendall Key Specs
- 3-way Design
- 1" Tweeter
- 5.25" Midrange
- 2 x 6.5" Woven Kevlar Woofer
- 5.25" Midrange
- 25-23k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 250watts
- Weight:22.14kg
- Dimensions (H x W x D): 1021.0" x 8-5/16" x 14-15/16"( 1021.0 x 212.0 x 380.0mm )
In the following sections, we will get into more detail in order to better understand how the KLH Model Seven and KLH Kendall compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that KLH Model Seven is a -way design whereas the Kendall is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
KLH Model Seven |
KLH Kendall |
|
Driver Setup
|
-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
1 x 13-inch
|
2 x 6.5-inch
|
KLH Model Seven features a 1" Hard-Dome Tweeter and 1 x 13" Pulp-Paper Woofer . On the other hand, the Kendall features a 1" anodized aluminum Tweeter , a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer .
Frequency Response
KLH Model Seven has a frequency range of 38-20k Hz whereas Kendall has a frequency range of 25-23k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the KLH Model Seven's min frequency of 38Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
KLH Model Seven is a 4 ohms speaker compared to the Kendall which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the KLH Model Seven can provide this impedance level.
These two speakers also have different sensitivity levels. KLH Model Seven sensitivity is rated at 91 dB and the Kendall's is rated at 96 dB. This 5 dB difference makes the KLH Kendall a more sensitive speaker compared to KLH Model Seven, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
KLH Model Seven can handle a max power of 250 watts RMS from the amp the whereas Kendall has a max power handling value of watts RMS, 250 watts less than the KLH Model Seven.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Kendall features Binding post posts which make bi-amping or bi-wiring possible. KLH Model Seven has a Binding post which doesn't feature bi-amping/bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs

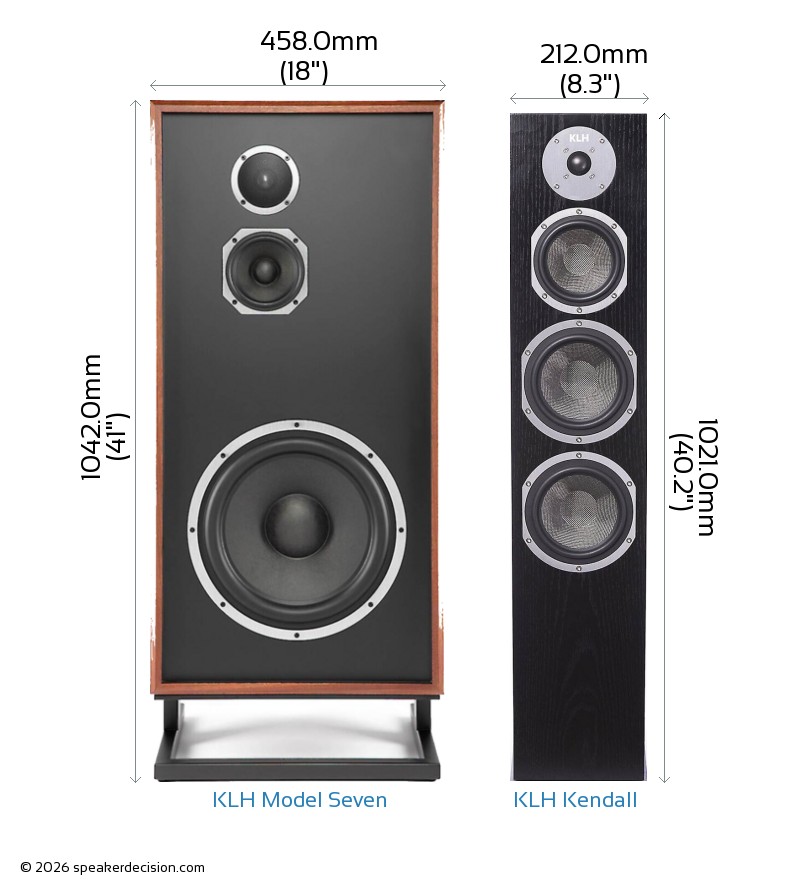

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Model Seven's and KLH Kendall's external dimensions. KLH Model Seven has external dimensions of 1042.0 x 458.0 x 312.0mm ( 41inch x 18inch x 12-1/4inch ) whereas KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm ( 40-3/16 x 8-5/16 x 14-15/16inch) .
KLH Kendall is 246mm narrower and 21mm shorter than KLH Model Seven but it is also 68mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Model Seven is approximately 1429.0cm2 / 221.5inch2 and base area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2. The KLH Model Seven requires 77% more surface area than the Kendall which gives it a small disadvantage on placement in tight spaces.
