In this review, we will be comparing Model Seven and Concord, two Passive Floor-standing speakers by KLH.
Let's have a brief look at the main features
of KLH Model Seven and KLH Concord first before getting into our more
detailed comparison.
| Key Specs | KLH Model Seven | KLH Concord |
|---|
| Brand | KLH
United States · founded 1957 | KLH
United States · founded 1957 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" |
|---|
| Midrange | 5" | — |
|---|
| Woofer | 13" Pulp-Paper | 2 x 6.5" Kevlar |
|---|
| Frequency response | 38-20k Hz | 28-23k Hz |
|---|
| Sensitivity | 91 dB | 94 dB |
|---|
| Impedance | 4 ohms | 8 ohms |
|---|
| Power range | 20-250 watts | up to 225 watts |
|---|
| Weight | 35.82kg / 78.8lbs | 20.45kg / 45lbs |
|---|
| Dimensions (H x W x D) | 41" x 18" x 12-1/4"
1042.0 x 458.0 x 312.0mm | 40-3/8" x 8-5/16" x 14-15/16"
1026.0 x 212.0 x 380.0mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Model Seven is a 3-way design whereas the Concord is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
KLH Model SevenKLH Concord
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KLH Model Seven |
KLH Concord |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
- |
|
Woofer
|
1 x 13-inch
|
2 x 6.5-inch
|
Model Seven features a 1" Hard-Dome Tweeter, a 5" Midrange and 1 x 13" Pulp-Paper Woofer. On the other hand, the Concord features a 1" anodized aluminum Tweeter and 2 x 6.5" Kevlar Woofer.
Frequency Response
Model Seven has a frequency range of 38-20k Hz whereas Concord has a frequency range of 28-23k Hz. With a minimum frequency of 28Hz, the Concord can go significantly deeper on the low side and provide stronger bass compared to the Model Seven's min frequency of 38Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Model Seven is a 4 ohms speaker compared to the Concord which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Model Seven can provide this impedance level.
These two speakers also have different sensitivity levels. Model Seven sensitivity is rated at 91 dB and the Concord's is rated at 94 dB. This 3 dB difference makes the KLH Concord a more sensitive speaker compared to KLH Model Seven, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Model Seven can handle a max power of 250 watts RMS, whereas Concord has a max power handling value of 225 watts RMS, 25 watts less than the Model Seven.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Model Seven features 5-Way post type posts and Concord has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
KLH Concord's 5-Way post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Model Seven's and KLH Concord's external dimensions. KLH Model Seven has external dimensions of 1042.0 x 458.0 x 312.0mm (41inch x 18inch x 12-1/4inch) whereas KLH Concord has external dimensions of 1026.0 x 212.0 x 380.0mm (40-3/8 x 8-5/16 x 14-15/16inch).
KLH Concord is 246mm narrower and 16mm shorter than KLH Model Seven but it is also 68mm deeper.

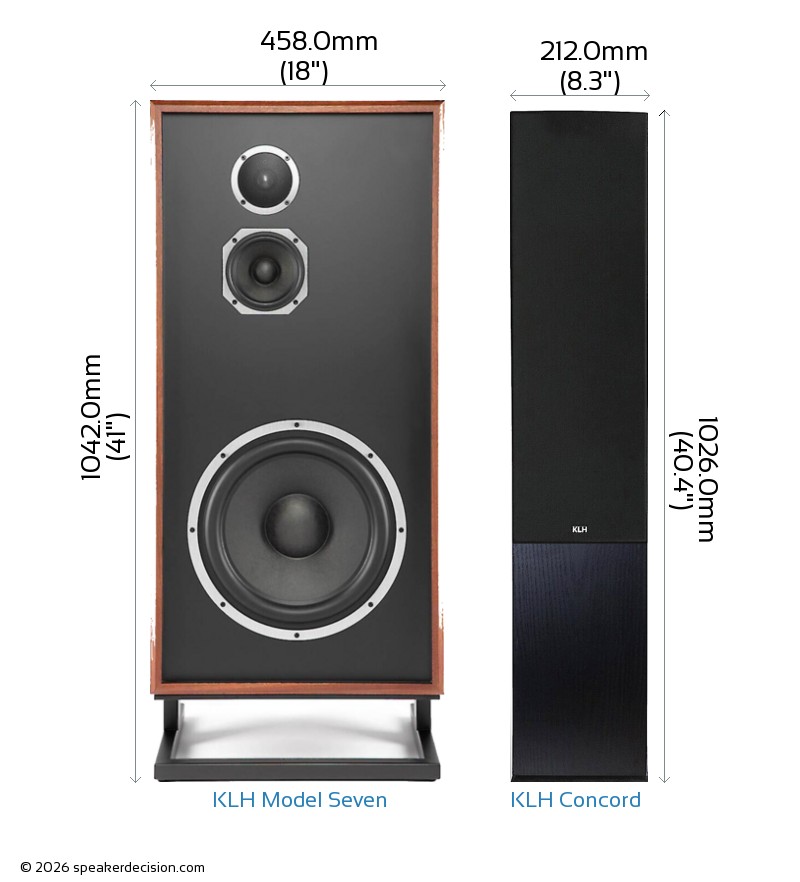

Below you can see the front view size comparison of KLH Model Seven and KLH Concord in scale.
Comparison image of KLH Model Seven and KLH Concord Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Model Seven is approximately 1429.0cm2 / 221.5inch2 and base area of the KLH Concord is approximately 805.6cm2 / 124.9inch2. The Model Seven requires 77% more surface area than the Concord which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KLH Model Seven weighs 35.82kg / 78.8lbs and the KLH Concord weighs 20.45kg / 45lbs. This makes the Model Seven 75% heavier than the Concord.
Here is a comparison of how Model Seven and Concord's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KLH Model Seven?
Here are the items that are included inside the box of Model Seven:
- 2 Floorstanding loudspeakers
- 2 Riser bases
- 2 Grilles
- Owner's Manual
What's in the Box of KLH Concord?
Here are the items that come with the Concord:
- Floorstanding loudspeaker
- Grille
- 4 Spike feet (w/ locking nut attached)
- 4 Protective discs
- 4 Rubber feet
- Port plug
- Manual
- ATTENTION! note
 Max Input Power |
250 watts
vs
225 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Woofer Size |
13 inches
vs
6.5 inches
|
Larger woofer |
 Sensitivity |
94 dB
vs
91 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
|
Number of Woofers |
2
vs
1
|
More woofers |
|
Low Frequency Response |
28 Hz
vs
38 Hz
|
Generates deeper bass |
 High Frequency Response |
23k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
1026mm
vs
1042mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
805cm2
vs
1429cm2
|
Takes less floor space |
 Price per pair* |
1000USD
vs
4998USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
KLH Model Seven |
KLH Concord |
| Brand |
KLH |
KLH |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
20-250 watts |
up to 225 watts |
| Sensitivity |
91 dB |
94 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
38-20k Hz |
28-23k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
2 |
| Woofer Size |
13" |
6.5" |
| Woofer Composition |
Pulp-Paper |
Kevlar |
| Woofer Surround Material |
Rubber |
Butyl Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5" |
No |
Physical Specs |
|
|
| Height |
1042.0mm (41") |
1026.0mm (40.4") |
| Width |
458.0mm (18") |
212.0mm (8.3") |
| Depth |
312.0mm (12.3") |
380.0mm (15") |
| Weight |
35.82kg (78.8lbs) |
20.45kg (45lbs) |
| Enclosure |
|
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Wood-grain vinyl |
| Available Colors |
Mahogany |
Black |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
10 Years |
10 Years |
| Labor Warranty |
10 Years |
10 Years |
These sit in different price classes - KLH Model Seven costs roughly 5x what KLH Concord does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | KLH Concord digs deeper - 28Hz against 38Hz. |
| Amplifier needs | B | KLH Concord is more sensitive (94dB vs 91dB), so it goes louder on the same amplifier. |
| Amplifier match | B | KLH Concord is the easier load at 8 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | evenly matched | Similar power handling (250W vs 225W). |
| Size | depends | KLH Concord is easier to place; KLH Model Seven is bigger, which usually goes with fuller bass. Your room decides. |
| Cabinet | depends | Sealed vs Ported. Sealed is tighter and happier near a wall; ported digs lower but wants space behind it. |
| Price | B | KLH Concord is cheaper - $1,000 against $4,998, about 80% less; arguably a different class. |
A KLH Model Seven B KLH Concord
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Concord is the easier recommendation: it leads on most of the measured areas and costs less. Take KLH Model Seven if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 38Hz anyway, so judge these on the other rows instead. In a large or open-plan room, KLH Model Seven has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, KLH Concord is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
