In this review, we will be comparing Kendall and DFR52, two Passive Floor-standing speakers from KLH and ELAC.
Let's have a brief look at the main features
of KLH Kendall and ELAC Debut Ref DFR52 first before getting into our more
detailed comparison.
| Key Specs | KLH Kendall | ELAC Debut Ref DFR52 |
|---|
| Brand | KLH
United States · founded 1957 | ELAC
Germany · founded 1926 |
|---|
| Design | 3-way | 3-way |
|---|
| Tweeter | 1" | 1" dome |
|---|
| Midrange | 5.25" | 5.25" |
|---|
| Woofer | 2 x 6.5" Woven Kevlar | 2 x 5.25" Aramid fiber |
|---|
| Frequency response | 25-23k Hz | 42-35k Hz |
|---|
| Sensitivity | 96 dB | 87 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | up to 250 watts | up to 140 watts |
|---|
| Weight | 22.14kg / 48.7lbs | 16.77kg / 36.9lbs |
|---|
| Dimensions (H x W x D) | 40-3/16" x 8-5/16" x 14-15/16"
1021.0 x 212.0 x 380.0mm | 40-9/16" x 9-1/8" x 11-1/8"
1031.0 x 232.0 x 283.0mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Kendall and DFR52 are 3-way speakers.
KLH KendallELAC Debut Ref DFR52
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KLH Kendall |
ELAC Debut Ref DFR52 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
1 x 5.25-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 5.25-inch
|
Kendall features a 1" anodized aluminum Tweeter, a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer. On the other hand, the DFR52 features a 1" cloth dome Tweeter, a 5.25" Midrange and 2 x 5.25" Aramid fiber Woofer.
Frequency Response
Kendall has a frequency range of 25-23k Hz whereas DFR52 has a frequency range of 42-35k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the DFR52's min frequency of 42Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Kendall is a 8 ohms speaker compared to the DFR52 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Kendall sensitivity is rated at 96 dB and the DFR52's is rated at 87 dB. This 9 dB difference makes the KLH Kendall a more sensitive speaker compared to ELAC Debut Ref DFR52, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Kendall can handle a max power of 250 watts RMS, whereas DFR52 has a max power handling value of 140 watts RMS, 110 watts less than the Kendall.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Kendall features Binding post posts which make bi-amping or bi-wiring possible. DFR52 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
ELAC Debut Ref DFR52's 5-Way post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Kendall's and ELAC Debut Ref DFR52's external dimensions. KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm (40-3/16 x 8-5/16 x 14-15/16inch) whereas ELAC Debut Ref DFR52 has external dimensions of 1031.0 x 232.0 x 283.0mm (40-9/16 x 9-1/8 x 11-1/8inch).
KLH Kendall is 20mm narrower and 10mm shorter than ELAC Debut Ref DFR52 but it is also 97mm deeper.

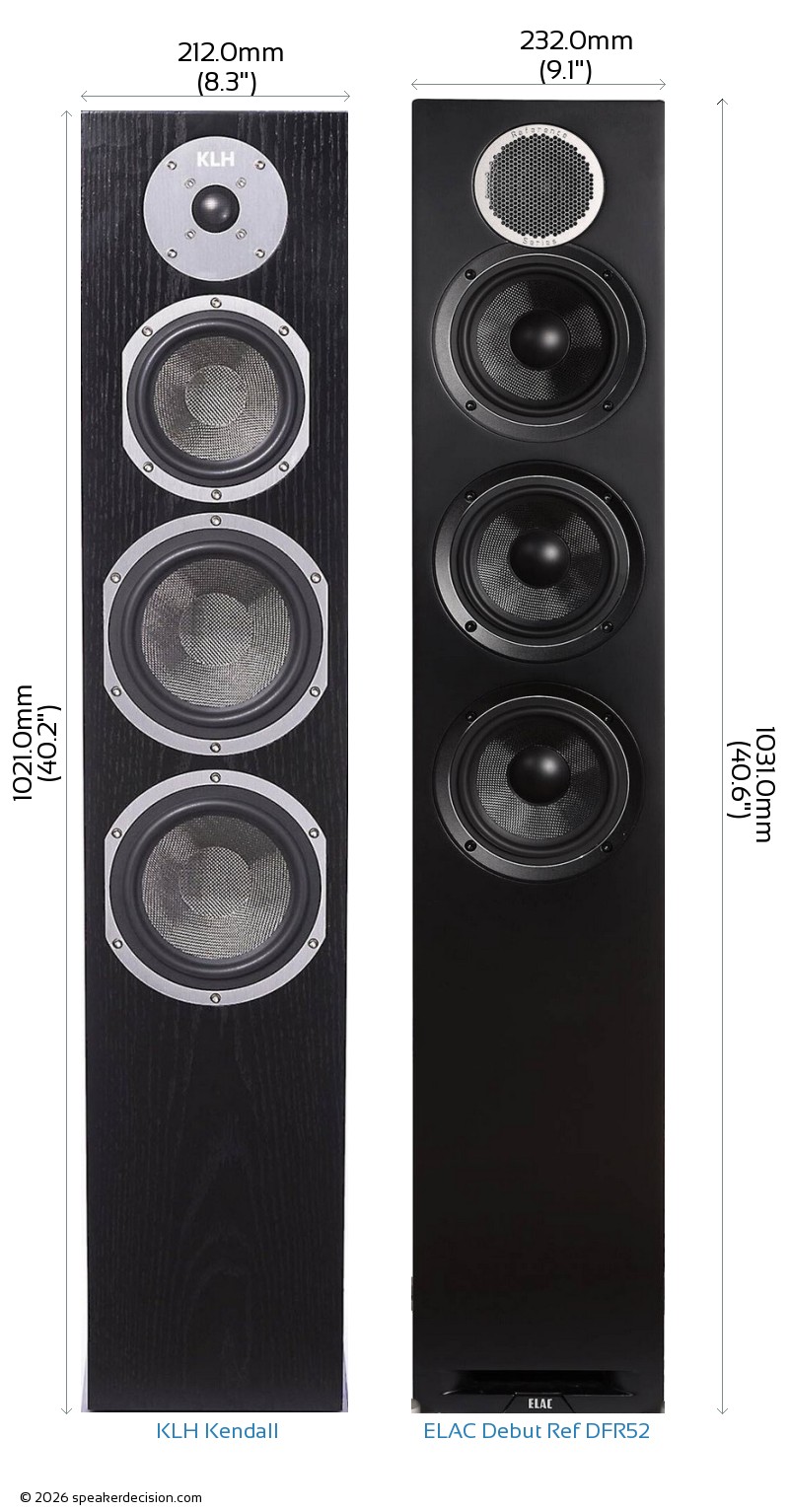

Below you can see the front view size comparison of KLH Kendall and ELAC Debut Ref DFR52 in scale.
Comparison image of KLH Kendall and ELAC Debut Ref DFR52 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2 and base area of the ELAC Debut Ref DFR52 is approximately 656.6cm2 / 101.8inch2. The Kendall requires 23% more surface area than the DFR52 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KLH Kendall weighs 22.14kg / 48.7lbs and the ELAC Debut Ref DFR52 weighs 16.77kg / 36.9lbs. This makes the Kendall 32% heavier than the DFR52.
Here is a comparison of how Kendall and DFR52's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KLH Kendall?
Here are the items that are included inside the box of Kendall:
- Floorstanding loudspeaker
- Grille
- Foam port
- 4 Rubber feet
- 4 Spike feet (with nuts)
- 4 Protective discs
- Manual
What's in the Box of ELAC Debut Ref DFR52?
Here are the items that come with the DFR52:
- Floorstanding loudspeaker
- Grille
- 4 Outrigger feet (spikes installed)
- 4 Rubber feet
- 4 Dials
- 8 Screws
- Hex-key
 Max Input Power |
250 watts
vs
140 watts
|
Handle more power from your amplifier |
 Sensitivity |
96 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 Woofer Size |
6.5 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
25 Hz
vs
42 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
1021mm
vs
1031mm
|
Easier to fit in smaller spaces |
 High Frequency Response |
35k Hz
vs
23k Hz
|
Generates higher frequency |
 Base Surface Area |
656cm2
vs
805cm2
|
Takes less floor space |
 Price per pair* |
1400USD
vs
1500USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
KLH Kendall |
ELAC Debut Reference DFR52 |
| Brand |
KLH |
ELAC |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 250 watts |
up to 140 watts |
| Sensitivity |
96 dB |
87 dB |
| Impedance |
8 ohms |
6 ohms |
| Frequency Response |
25-23k Hz |
42-35k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
5.25" |
| Woofer Composition |
Woven Kevlar |
Aramid fiber |
| Woofer Surround Material |
Butyl Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
n/a |
dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
5.25" |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
1021.0mm (40.2") |
1031.0mm (40.6") |
| Width |
212.0mm (8.3") |
232.0mm (9.1") |
| Depth |
380.0mm (15") |
283.0mm (11.1") |
| Weight |
22.14kg (48.7lbs) |
16.77kg (36.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Wood-grain vinyl |
| Available Colors |
Black |
White Baffle / Oak Cabinet or Black Baffle / Walnut Cabinet |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
10 Years |
3 Years |
| Labor Warranty |
10 Years |
3 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | A | KLH Kendall digs deeper - 25Hz against 42Hz. |
| Amplifier needs | A | KLH Kendall is more sensitive (96dB vs 87dB), so it goes louder on the same amplifier. |
| Amplifier match | A | KLH Kendall is the easier load at 8 ohms. |
| Headroom | A | KLH Kendall takes more power (250W vs 140W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | A | KLH Kendall: bi-amping. |
| Price | evenly matched | Much the same money ($1,500 vs $1,400 a pair). |
A KLH Kendall B ELAC Debut Ref DFR52
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Kendall has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 42Hz anyway, so judge these on the other rows instead. If your amplifier is modest, vintage or valve-based, KLH Kendall is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
