In this review, we will be comparing Kendall and 704 S2, two Passive Floor-standing speakers from KLH and Bowers Wilkins.
Let's have a brief look at the main features
of KLH Kendall and B&W 704 S2 first before getting into our more
detailed comparison.
KLH Kendall Key Specs
- 3-way Design
- 1" Tweeter
- 5.25" Midrange
- 2 x 6.5" Woven Kevlar Woofer
- 25-23k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 250watts
- Weight:22.14kg
- Dimensions (H x W x D): 1021.0" x 8-5/16" x 14-15/16"( 1021.0 x 212.0 x 380.0mm )
B&W 704 S2 Key Specs
- 3-way Design
- 1" Tweeter
- 5" Midrange
- 2 x 5" Aerofoil Woofer
- 5" Midrange
- 48-28k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-150watts
- Weight:18.50kg
- Dimensions (H x W x D): 959.0" x 6.5" x 10.9"( 959.0 x 165.0 x 277.0mm )
In the following sections, we will get into more detail in order to better understand how the KLH Kendall and B&W 704 S2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Kendall and 704 S2 are 3-way speakers.
| Driver |
KLH Kendall |
B&W 704 S2 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
1 x 5-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 5-inch
|
Kendall features a 1" anodized aluminum Tweeter , a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer . On the other hand, the 704 S2 features a 1" Tweeter , a 5" Midrange and 2 x 5" Aerofoil Woofer .
Frequency Response
Kendall has a frequency range of 25-23k Hz whereas 704 S2 has a frequency range of 48-28k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the 704 S2's min frequency of 48Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Kendall and 704 S2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Kendall sensitivity is rated at 96 dB and the 704 S2's is at 88 dB. This 8 dB difference makes the KLH Kendall a more sensitive speaker compared to B&W 704 S2, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Kendall can handle a max power of 150 watts RMS from the amp the whereas Kendall has a max power handling value of watts RMS , 150 watts less than the 704 S2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Kendall and 704 S2 features dual binding post speaker terminals for bi-amping or bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring

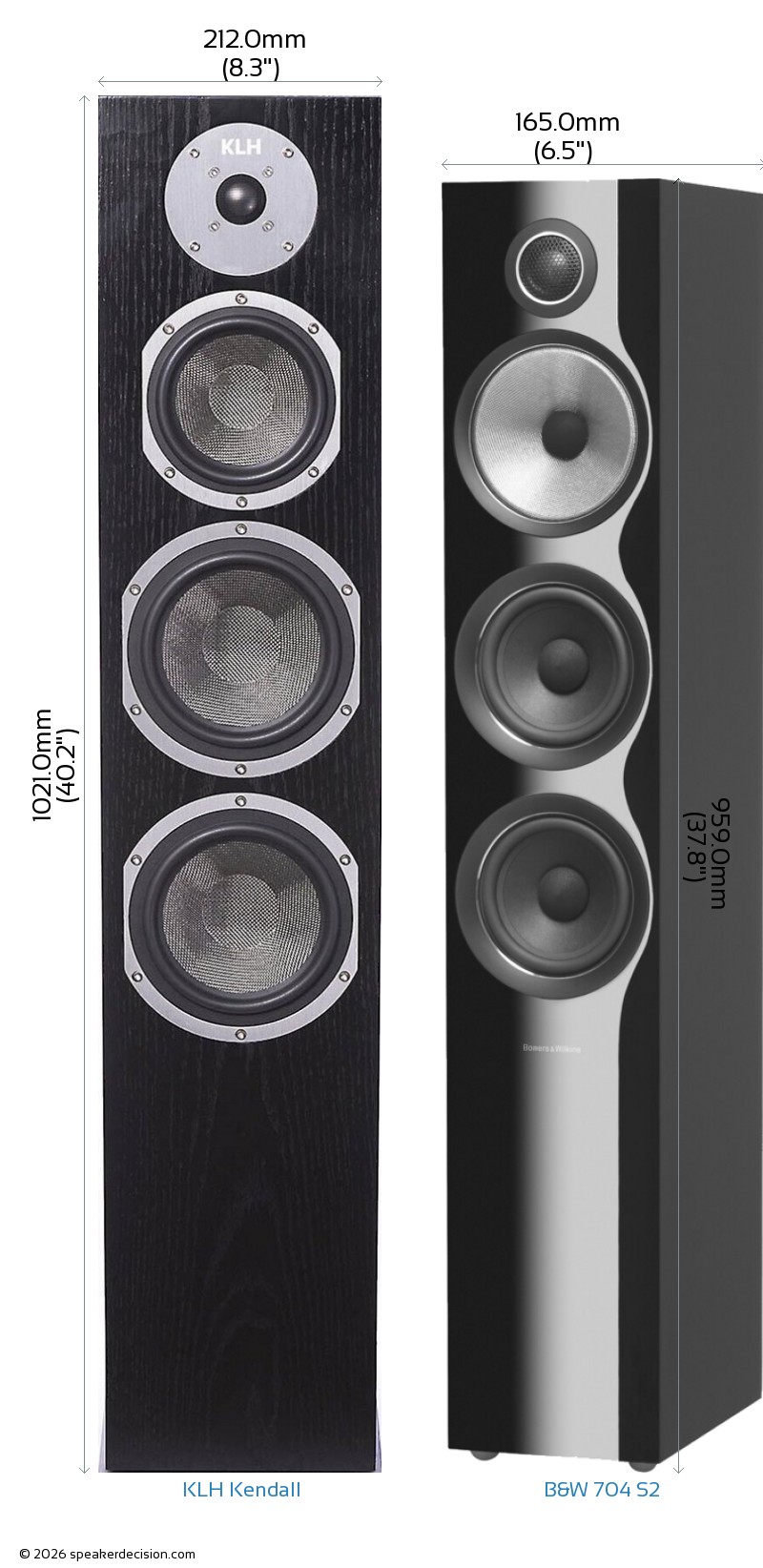

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Kendall's and B&W 704 S2's external dimensions. KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm ( 40-3/16 x 8-5/16 x 14-15/16inch) whereas B&W 704 S2 has external dimensions of 959.0 x 165.0 x 277.0mm ( 37.8-inch x 6.5-inch x 10.9-inch) .
KLH Kendall is clearly the larger of the two speakers. Its body is 47mm wider, 62mm taller and 103mm deeper than B&W 704 S2.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2 and base area of the B&W 704 S2 is approximately 457.1cm2 / 70.9inch2. The Kendall requires 76% more surface area than the 704 S2 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KLH Kendall weighs 22.14kg / 48.7lbs and the B&W 704 S2 weighs 18.50kg / 40.7lbs. This makes the Kendall 20% heavier than the 704 S2.
Here is a comparison of how Kendall and 704 S2's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KLH Kendall?
Here are the items that are included inside the box of Kendall:
Floorstanding loudspeakerGrilleFoam port4 Rubber feet4 Spike feet (with nuts)4 Protective discsManual
What's in the Box of B&W 704 S2?
Here are the items that come with the 704 S2:
Floorstanding loudspeakerGrillePlinth (base)2 Jumper-straps (pre-installed)Two-piece foam port plug4 Rubber feet4 Spike feet4 Lock-nuts4 Screws4 Washers4 Lock washersHex-keyManualBowers & Wilkins brochureWarranty Information
 Sensitivity |
96 dB
vs
88 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5 inches
|
Larger woofer |
|
Low Frequency Response |
25 Hz
vs
48 Hz
|
Generates deeper bass |
 Price per pair* |
1500USD
vs
3500USD
|
costs less (*prices may change depending on the seller, location and time) |
 High Frequency Response |
28k Hz
vs
23k Hz
|
Generates higher frequency |
 Height |
959mm
vs
1021mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
457cm2
vs
805cm2
|
Takes less floor space |
| General |
KLH Kendall |
Bowers & Wilkins 704 S2 |
| Brand |
KLH |
Bowers Wilkins |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 250 watts |
30-150 watts |
| Sensitivity |
96 dB |
88 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
3.1 ohms |
| Frequency Response |
25-23k Hz |
48-28k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
5" |
| Woofer Composition |
Woven Kevlar |
Aerofoil |
| Woofer Surround Material |
Butyl Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
5" |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
1021.0mm (40.2") |
959.0mm (37.8") |
| Width |
212.0mm (8.3") |
165.0mm (6.5") |
| Depth |
380.0mm (15") |
277.0mm (10.9") |
| Weight |
22.14kg (48.7lbs) |
18.50kg (40.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Lacquer |
| Available Colors |
Black |
Rosewood, Gloss Black, Satin White |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
10 Years |
5 Years |
| Labor Warranty |
10 Years |
5 Years |
