In this review, we will be comparing Kendall and 703 S2, two Passive Floor-standing speakers from KLH and Bowers Wilkins.
Let's have a brief look at the main features
of KLH Kendall and B&W 703 S2 first before getting into our more
detailed comparison.
| Key Specs | KLH Kendall | B&W 703 S2 |
|---|
| Brand | KLH
United States · founded 1957 | Bowers Wilkins
United Kingdom · founded 1966 |
|---|
| Design | 3-way | 3-way |
|---|
| Tweeter | 1" | 1" |
|---|
| Midrange | 5.25" | 6" |
|---|
| Woofer | 2 x 6.5" Woven Kevlar | 2 x 6.5" Aerofoil |
|---|
| Frequency response | 25-23k Hz | 46-28k Hz |
|---|
| Sensitivity | 96 dB | 89 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 250 watts | 30-200 watts |
|---|
| Weight | 22.14kg / 48.7lbs | 25.00kg / 55lbs |
|---|
| Dimensions (H x W x D) | 40-3/16" x 8-5/16" x 14-15/16"
1021.0 x 212.0 x 380.0mm | 40.4" x 7-7/8" x 12.6"
1025 x 200 x 321 mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Kendall and 703 S2 are 3-way speakers.
KLH KendallB&W 703 S2
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KLH Kendall |
B&W 703 S2 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
1 x 6-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 6.5-inch
|
Kendall features a 1" anodized aluminum Tweeter, a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer. On the other hand, the 703 S2 features a 1" Tweeter, a 6" Midrange and 2 x 6.5" Aerofoil Woofer.
Frequency Response
Kendall has a frequency range of 25-23k Hz whereas 703 S2 has a frequency range of 46-28k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the 703 S2's min frequency of 46Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Kendall and 703 S2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Kendall sensitivity is rated at 96 dB and the 703 S2's is at 89 dB. This 7 dB difference makes the KLH Kendall a more sensitive speaker compared to B&W 703 S2, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Kendall can handle a max power of 250 watts RMS, whereas 703 S2 has a max power handling value of 200 watts RMS, 50 watts less than the Kendall.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Kendall and 703 S2 features dual binding post speaker terminals for bi-amping or bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
B&W 703 S2's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Kendall's and B&W 703 S2's external dimensions. KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm (40-3/16 x 8-5/16 x 14-15/16inch) whereas B&W 703 S2 has external dimensions of 1025 x 200 x 321 mm (40.4 x 7-7/8 x 12.6 inch).
B&W 703 S2 is 12mm narrower and 59mm less deeper than KLH Kendall but it is also 4mm taller.

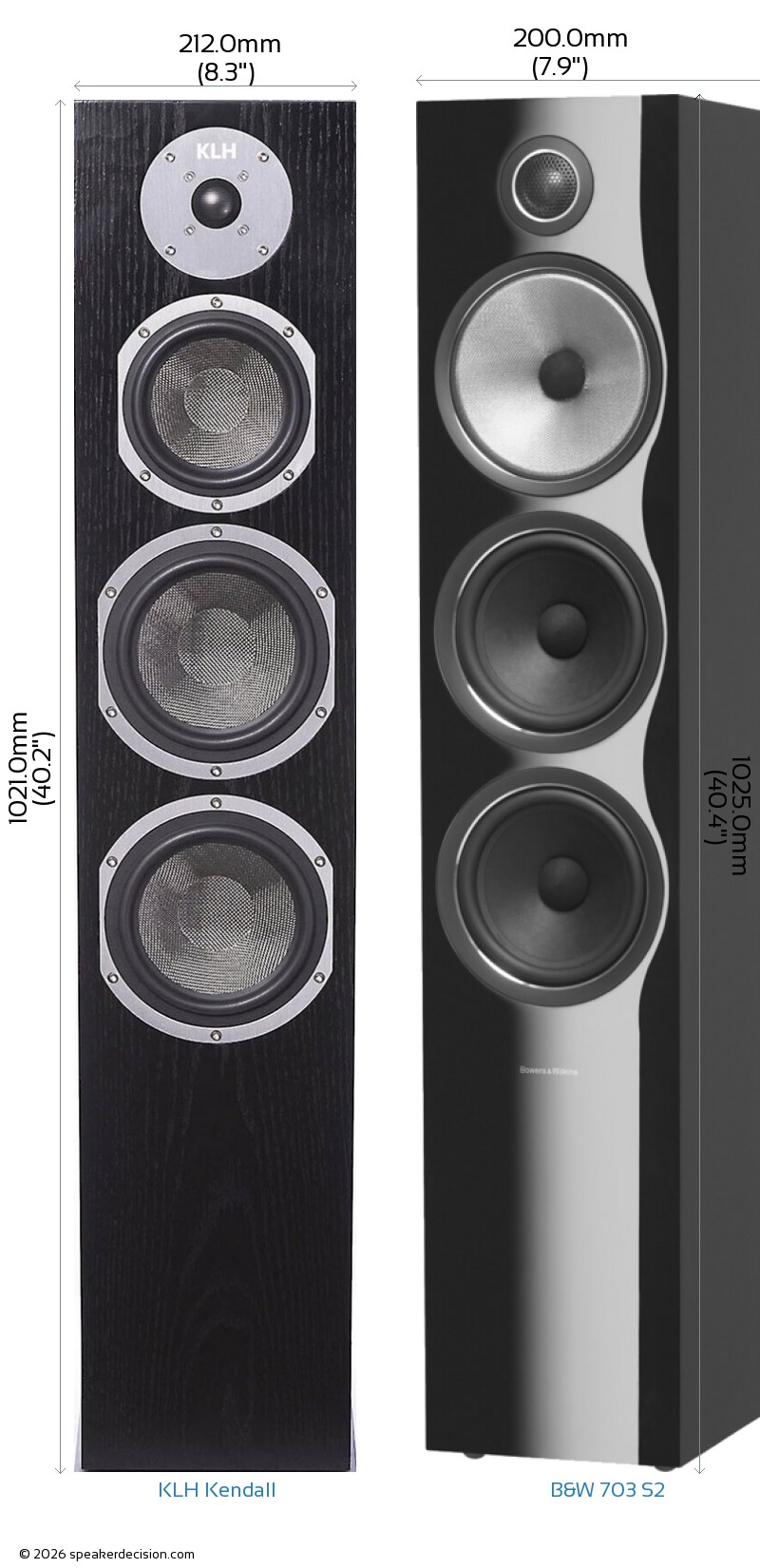

Below you can see the front view size comparison of KLH Kendall and B&W 703 S2 in scale.
Comparison image of KLH Kendall and B&W 703 S2 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2 and base area of the B&W 703 S2 is approximately 642.0cm2 / 99.5inch2. The Kendall requires 25% more surface area than the 703 S2 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KLH Kendall weighs 22.14kg / 48.7lbs and the B&W 703 S2 weighs 25.00kg / 55lbs. This makes the 703 S2 13% heavier than the Kendall.
Here is a comparison of how Kendall and 703 S2's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KLH Kendall?
Here are the items that are included inside the box of Kendall:
- Floorstanding loudspeaker
- Grille
- Foam port
- 4 Rubber feet
- 4 Spike feet (with nuts)
- 4 Protective discs
- Manual
What's in the Box of B&W 703 S2?
Here are the items that come with the 703 S2:
- Floorstanding loudspeaker
- Grille
- Plinth (base)
- 2 Jumper-straps (pre-installed)
- Two-piece foam port plug
- 4 Rubber feet
- 4 Spike feet
- 4 Lock-nuts
- 4 Screws
- 4 Washers
- 4 Lock washers
- Hex-key
- Manual
- Bowers & Wilkins brochure
- Warranty Information
 Max Input Power |
250 watts
vs
200 watts
|
Handle more power from your amplifier |
 Sensitivity |
96 dB
vs
89 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
25 Hz
vs
46 Hz
|
Generates deeper bass |
 Height |
1021mm
vs
1025mm
|
Easier to fit in smaller spaces |
 Price per pair* |
1500USD
vs
5000USD
|
costs less (*prices may change depending on the seller, location and time) |
 High Frequency Response |
28k Hz
vs
23k Hz
|
Generates higher frequency |
 Base Surface Area |
642cm2
vs
805cm2
|
Takes less floor space |
| General |
KLH Kendall |
Bowers & Wilkins 703 S2 |
| Brand |
KLH |
Bowers Wilkins |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 250 watts |
30-200 watts |
| Sensitivity |
96 dB |
89 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
3.1 ohms |
| Frequency Response |
25-23k Hz |
46-28k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Woven Kevlar |
Aerofoil |
| Woofer Surround Material |
Butyl Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
6" |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
1021.0mm (40.2") |
1025.0mm (40.4") |
| Width |
212.0mm (8.3") |
200.0mm (7.9") |
| Depth |
380.0mm (15") |
321.0mm (12.6") |
| Weight |
22.14kg (48.7lbs) |
25.00kg (55lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Lacquer |
| Available Colors |
Black |
Rosewood, Gloss Black, Satin White |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
10 Years |
5 Years |
| Labor Warranty |
10 Years |
5 Years |
These sit in different price classes - B&W 703 S2 costs roughly 3.3x what KLH Kendall does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | A | KLH Kendall digs deeper - 25Hz against 46Hz. |
| Amplifier needs | A | KLH Kendall is more sensitive (96dB vs 89dB), so it goes louder on the same amplifier. |
| Headroom | A | KLH Kendall takes more power (250W vs 200W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | KLH Kendall: bi-amping; B&W 703 S2: bi-amping. B&W 703 S2 sits in a wider range (8 models), so a matched surround system is easier later. |
| Price | A | KLH Kendall is cheaper - $1,500 against $5,000, about 70% less; arguably a different class. |
A KLH Kendall B B&W 703 S2
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Kendall is the easier recommendation: it leads on most of the measured areas and costs less. Take B&W 703 S2 if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 46Hz anyway, so judge these on the other rows instead. If your amplifier is modest, vintage or valve-based, KLH Kendall is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
