In this review, we will be comparing Concord and 704 S2, two Passive Floor-standing speakers from KLH and Bowers Wilkins.
Let's have a brief look at the main features
of KLH Concord and B&W 704 S2 first before getting into our more
detailed comparison.
KLH Concord Key Specs
- 2-way Design
- 1" Tweeter
- 2 x 6.5" Kevlar Woofer
- 28-23k Hz Frequency Response
- 94 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 225watts
- Weight:20.45kg
- Dimensions (H x W x D): 1026.0" x 8-5/16" x 14-15/16"( 1026.0 x 212.0 x 380.0mm )
B&W 704 S2 Key Specs
- 3-way Design
- 1" Tweeter
- 5" Midrange
- 2 x 5" Aerofoil Woofer
- 5" Midrange
- 48-28k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-150watts
- Weight:18.50kg
- Dimensions (H x W x D): 959.0" x 6.5" x 10.9"( 959.0 x 165.0 x 277.0mm )
In the following sections, we will get into more detail in order to better understand how the KLH Concord and B&W 704 S2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Concord is a 2-way design whereas the 704 S2 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
KLH Concord |
B&W 704 S2 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 5-inch
|
Concord features a 1" anodized aluminum Tweeter and 2 x 6.5" Kevlar Woofer . On the other hand, the 704 S2 features a 1" Tweeter , a 5" Midrange and 2 x 5" Aerofoil Woofer .
Frequency Response
Concord has a frequency range of 28-23k Hz whereas 704 S2 has a frequency range of 48-28k Hz. With a minimum frequency of 28Hz, the Concord can go significantly deeper on the low side and provide stronger bass compared to the 704 S2's min frequency of 48Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Concord and 704 S2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Concord sensitivity is rated at 94 dB and the 704 S2's is at 88 dB. This 6 dB difference makes the KLH Concord a more sensitive speaker compared to B&W 704 S2, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Concord can handle a max power of 150 watts RMS from the amp the whereas Concord has a max power handling value of watts RMS , 150 watts less than the 704 S2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
704 S2 features Binding post posts which make bi-amping or bi-wiring possible. Concord has a 5-Way post which doesn't feature bi-amping/bi-wiring.
KLH Concord's 5-Way post terminals
Physical Specs

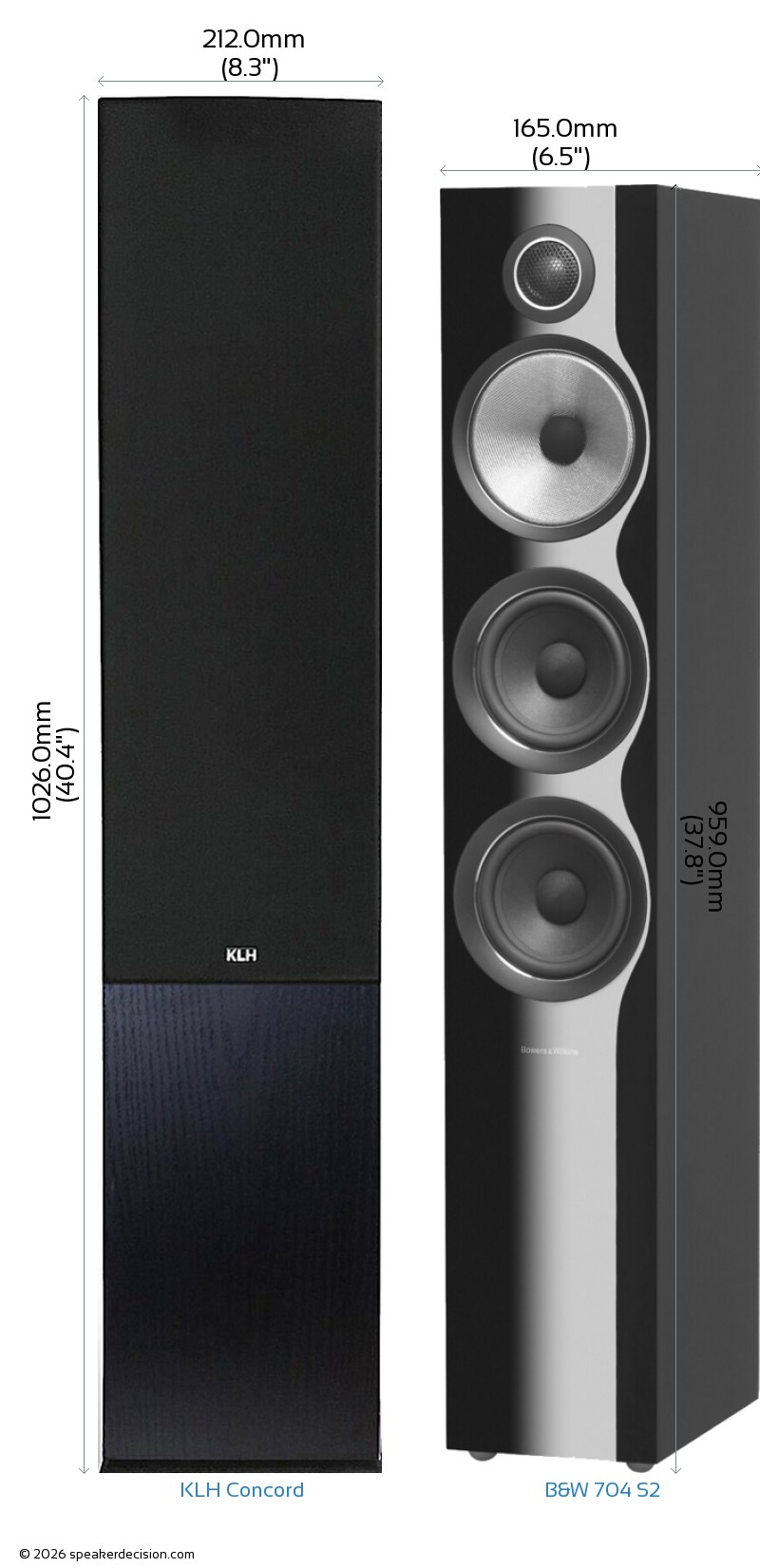

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Concord's and B&W 704 S2's external dimensions. KLH Concord has external dimensions of 1026.0 x 212.0 x 380.0mm ( 40-3/8 x 8-5/16 x 14-15/16inch) whereas B&W 704 S2 has external dimensions of 959.0 x 165.0 x 277.0mm ( 37.8-inch x 6.5-inch x 10.9-inch) .
KLH Concord is clearly the larger of the two speakers. Its body is 47mm wider, 67mm taller and 103mm deeper than B&W 704 S2.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Concord is approximately 805.6cm2 / 124.9inch2 and base area of the B&W 704 S2 is approximately 457.1cm2 / 70.9inch2. The Concord requires 76% more surface area than the 704 S2 which gives it a small disadvantage on placement in tight spaces.
