In this review, we will be comparing R5 and 704 S2, two Passive Floor-standing speakers from KEF and Bowers Wilkins. Let's have a brief look at the main features
of KEF R5 and B&W 704 S2 first before getting into our more
detailed comparison.
What size room are the KEF R5 and B&W 704 S2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the KEF R5 and B&W 704 S2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both R5 and 704 S2 are 3-way speakers.
| Driver |
KEF R5 |
B&W 704 S2 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
1 x 5-inch |
|
Woofer
|
2 x 5.25-inch
|
2 x 5-inch
|
R5 features a 1" aluminum Dome Tweeter , a 5" Midrange and 2 x 5.25" Hybrid Aluminum Woofer with a Crossover frequency at 400Hz and 2900Hz. On the other hand, the 704 S2 features a 1" Tweeter , a 5" Midrange and 2 x 5" Aerofoil Woofer .
Frequency Response
R5 has a frequency range of 58-28k Hz whereas 704 S2 has a frequency range of 48-28k Hz. With a minimum frequency of 48Hz, the 704 S2 can go significantly deeper on the low side and provide stronger bass compared to the R5's min frequency of 58Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R5 and 704 S2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. R5 sensitivity is rated at 87 dB and the 704 S2's is at 88 dB. This 1 dB difference makes the B&W 704 S2 a more sensitive speaker compared to KEF R5, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
R5 can handle a max power of 200 watts RMS from the amp the whereas 704 S2 has a max power handling value of 150 watts RMS, 50 watts less than the R5.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both R5 and 704 S2 features dual binding post speaker terminals for bi-amping or bi-wiring.
KEF R5's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both R5 and 704 S2 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
KEF R5 Port
Physical Specs

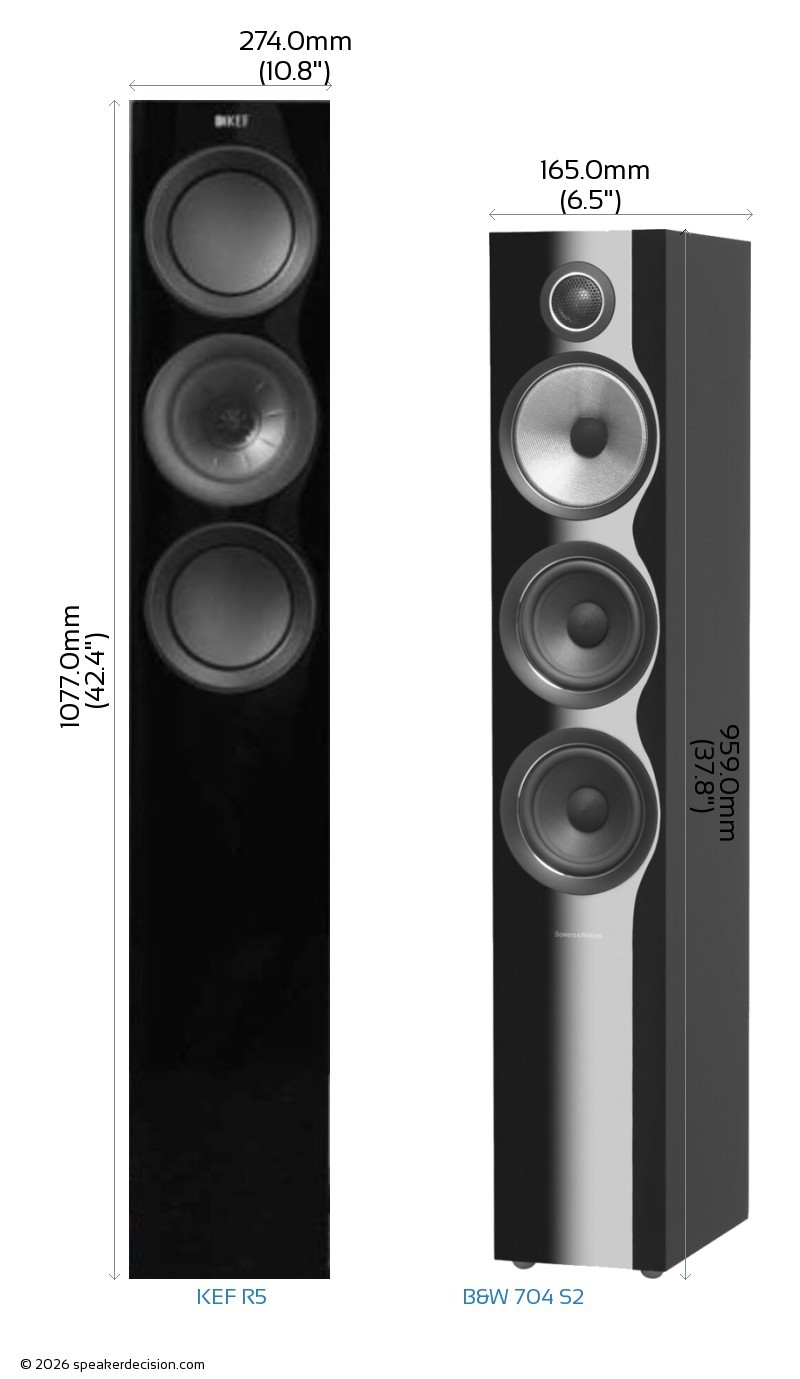

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF R5's and B&W 704 S2's external dimensions. KEF R5 has external dimensions of 1077.0 x 274.0 x 351.0mm ( 42-3/8 x 10-3/4 x 13-13/16inch) whereas B&W 704 S2 has external dimensions of 959.0 x 165.0 x 277.0mm ( 37.8-inch x 6.5-inch x 10.9-inch) .
KEF R5 is clearly the larger of the two speakers. Its body is 109mm wider, 118mm taller and 74mm deeper than B&W 704 S2.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF R5 is approximately 961.7cm2 / 149.1inch2 and base area of the B&W 704 S2 is approximately 457.1cm2 / 70.9inch2. The R5 requires 110% more surface area than the 704 S2 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KEF R5 weighs 27.30kg / 60.1lbs and the B&W 704 S2 weighs 18.50kg / 40.7lbs. This makes the R5 48% heavier than the 704 S2.
Here is a comparison of how R5 and 704 S2's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KEF R5?
Here are the items that are included inside the box of R5:
Floorstanding loudspeakerGrille2 Foam port plugs4 Outrigger feet4 Spikes4 Protective discs4 Screws4 WashersWrenchHex-keyUser ManualWarranty Information
What's in the Box of B&W 704 S2?
Here are the items that come with the 704 S2:
Floorstanding loudspeakerGrillePlinth (base)2 Jumper-straps (pre-installed)Two-piece foam port plug4 Rubber feet4 Spike feet4 Lock-nuts4 Screws4 Washers4 Lock washersHex-keyManualBowers & Wilkins brochureWarranty Information
 Max Input Power |
200 watts
vs
150 watts
|
Handle more power from your amplifier |
 Minimum Impedance |
3.2 ohms
vs
3.1 ohms
|
Very low impedance levels puts more pressure on amplifier |
 Woofer Size |
5.25 inches
vs
5 inches
|
Larger woofer |
 Price per pair* |
3300USD
vs
3500USD
|
costs less (*prices may change depending on the seller, location and time) |
 Sensitivity |
88 dB
vs
87 dB
|
Play louder with same amount of amplification power |
| Low Frequency Response |
48 Hz
vs
58 Hz
|
Generates deeper bass |
 Height |
959mm
vs
1077mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
457cm2 (165x277mm)
vs
961cm2 (274x351mm)
|
Takes less floor space |
| General |
KEF R5 |
Bowers & Wilkins 704 S2 |
| Brand |
KEF |
Bowers Wilkins |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
15-200 watts |
30-150 watts |
| Sensitivity |
87 dB |
88 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.2 ohms |
3.1 ohms |
| Frequency Response |
58-28k Hz |
48-28k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
5" |
| Woofer Composition |
Hybrid Aluminum |
Aerofoil |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5" |
5" |
| Crossover Frequency |
400Hz and 2900Hz |
n/a |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
1077.0mm (42.4") |
959.0mm (37.8") |
| Width |
274.0mm (10.8") |
165.0mm (6.5") |
| Depth |
351.0mm (13.8") |
277.0mm (10.9") |
| Weight |
27.30kg (60.1lbs) |
18.50kg (40.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Lacquer |
MDF/Lacquer |
| Available Colors |
Black Gloss, White Gloss, Walnut |
Rosewood, Gloss Black, Satin White |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
