In this review, we will be comparing Q750 and BW 603, two Passive Floor-standing speakers from KEF and Bowers Wilkins. Let's have a brief look at the main features
of KEF Q750 and B&W 603 first before getting into our more
detailed comparison.
What size room are the KEF Q750 and B&W 603 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the KEF Q750 and B&W 603 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Q750 is a 2-way design whereas the BW 603 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
KEF Q750 |
B&W 603 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 6-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 6.5-inch
|
Q750 features a 1" vented aluminum Dome Tweeter and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 2500Hz. On the other hand, the BW 603 features a 1" Tweeter , a 6" Midrange and 2 x 6.5" Paper Woofer .
Frequency Response
Q750 and BW 603 has exactly the same frequency range of 48-28k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Q750 and BW 603 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Q750 sensitivity is rated at 88 dB and the BW 603's is at 88.5 dB. This 1 dB difference makes the B&W 603 a more sensitive speaker compared to KEF Q750, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Q750 can handle a max power of 200 watts RMS from the amp the whereas Q750 has a max power handling value of 150 watts RMS , 50 watts less than the BW 603.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
BW 603 features Post posts which make bi-amping or bi-wiring possible. Q750 has a Binding post which doesn't feature bi-amping/bi-wiring.
KEF Q750's Binding post terminals
Cabinet Type and Port Position
Q750 has a front firing port whereas BW 603 has a rear firing ports. KEF Q750's front-firing port gives more flexibility in placement in regards to proximity to walls compared to B&W 603 with its rear-firing port.
Physical Specs

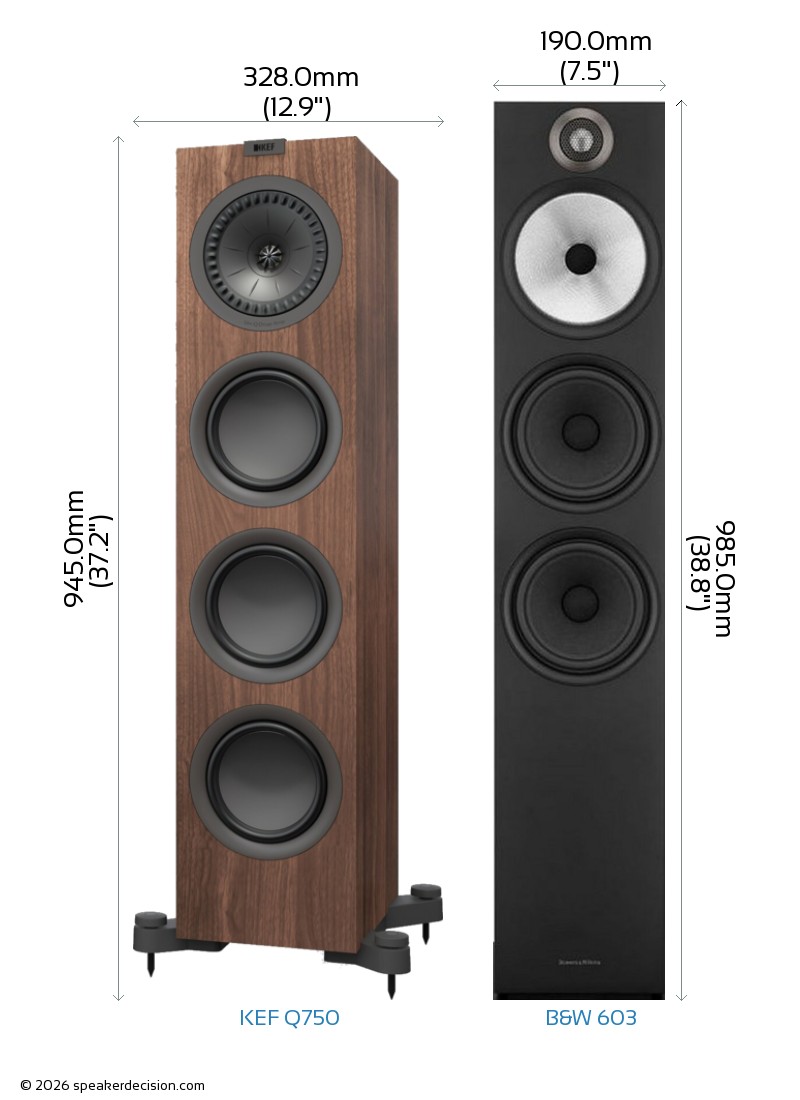

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF Q750's and B&W 603's external dimensions. KEF Q750 has external dimensions of 945.0 x 328.0 x 315.0mm ( 37-3/16 x 12-7/8 x 12-3/8inch) whereas B&W 603 has external dimensions of 985.0 x 190.0 x 340.0mm ( 38.7 x 7.4 x 13.3inch) .
KEF Q750 is 40mm shorter and 25mm less deeper than B&W 603 but it is also 138mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF Q750 is approximately 1033.2cm2 / 160.1inch2 and base area of the B&W 603 is approximately 646.0cm2 / 100.1inch2. The Q750 requires 60% more surface area than the BW 603 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KEF Q750 weighs 16.59kg / 36.5lbs and the B&W 603 weighs 24.14kg / 53.1lbs. This makes the BW 603 46% heavier than the Q750.
Here is a comparison of how Q750 and BW 603's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KEF Q750?
Here are the items that are included inside the box of Q750:
Floorstanding loudspeaker2 Outrigger feet4 Spikes6 Screws6 Washers4 Rubber insertsHex-keyOwners ManualWarranty Information
What's in the Box of B&W 603?
Here are the items that come with the BW 603:
Floorstanding loudspeaker Grille Plinith (base) 2 Jumper-straps (pre-installed) 4 Rubber feet 4 Spike feet 4 Hex-nuts 4 Screws 4 Washers 4 Lock-washers Two-piece foam port plug Hex-key Manual Bowers & Wilkins brochure Warranty Information
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Passive Radiator |
2 x 6.25-inch
vs
None
|
Increases the bass performance |
 Dolby Atmos Drivers |
Optional
vs
No
|
Dolby Atmos Compatibility |
 Height |
945mm
vs
985mm
|
Easier to fit in smaller spaces |
 Max Input Power |
200 watts
vs
150 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
89 dB
vs
88 dB
|
Play louder with same amount of amplification power |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Base Surface Area |
646cm2 (190x340mm)
vs
1033cm2 (328x315mm)
|
Takes less floor space |
| General |
KEF Q750 |
Bowers & Wilkins 603 |
| Brand |
KEF |
Bowers Wilkins |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
15-150 watts |
30-200 watts |
| Sensitivity |
88 dB |
88.5 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.8 ohms |
n/a |
| Frequency Response |
48-28k Hz |
48-28k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Aluminum |
Paper |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
6" |
| Crossover Frequency |
2500Hz |
n/a |
| Firing Direction |
front |
rear |
Physical Specs |
|
|
| Height |
945.0mm (37.2") |
985.0mm (38.8") |
| Width |
328.0mm (12.9") |
190.0mm (7.5") |
| Depth |
315.0mm (12.4") |
340.0mm (13.4") |
| Weight |
16.59kg (36.5lbs) |
24.14kg (53.1lbs) |
| Enclosure |
Passive Radiator |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
MDF/Vinyl |
| Available Colors |
Walnut |
Black, White, Oak |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
