In this review, we will be comparing Q11 Meta and Prime Pinnacle, two Passive Floor-standing speakers from KEF and SVS. Let's have a brief look at the main features
of KEF Q11 Meta and SVS Prime Pinnacle first before getting into our more
detailed comparison.
KEF Q11 Meta Key Specs
- 3-way Design
- 12th Generation Uni-Q Driver
- 0.75" Hard dome Tweeter
- 4" Midrange
- 3 x 6.5" Aluminum Woofer
- 44-20k Hz Frequency Response
- 89 dB Sensitivity
- Impedance: 4ohms
- Power Range:Up to 225watts
- Weight:22.55kg
- Dimensions (H x W x D): 1112.0" x 12.5" x 15"( 1112 x 317 x 380 mm )
SVS Prime Pinnacle Key Specs
- 3-way Design
- 1" dome Tweeter
- 5.25" Midrange
- 3 x 6.5" Polypropylene Woofer
- 5.25" Midrange
- 29-25k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-300watts
- Weight:25.95kg
- Dimensions (H x W x D): 1042.0" x 8" x 13-15/16"( 1042.0 x 204.0 x 355.0mm )
What size room are the KEF Q11 Meta and SVS Prime Pinnacle speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
KEF Q11 Meta |
SVS Prime Pinnacle |
| Near-field |
Are you nuts? |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Good |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the KEF Q11 Meta and SVS Prime Pinnacle compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Q11 Meta and Prime Pinnacle are 3-way speakers.
| Driver |
KEF Q11 Meta |
SVS Prime Pinnacle |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
0.75-inch
|
1-inch
|
|
Midrange
|
1 x 4-inch |
1 x 5.25-inch |
|
Woofer
|
3 x 6.5-inch
|
3 x 6.5-inch
|
Q11 Meta features a 0.75" vented aluminum dome with MAT absorber Hard dome Tweeter , a 4" Midrange and 3 x 6.5" Aluminum Woofer with a Crossover frequency at 480 Hz, 2.7 kHz. On the other hand, the Prime Pinnacle features a 1" aluminum dome Tweeter , a 5.25" Midrange and 3 x 6.5" Polypropylene Woofer with a Crossover frequency at 300Hz and 2100Hz.
Frequency Response
Q11 Meta has a frequency range of 44-20k Hz whereas Prime Pinnacle has a frequency range of 29-25k Hz. With a minimum frequency of 29Hz, the Prime Pinnacle can go significantly deeper on the low side and provide stronger bass compared to the Q11 Meta's min frequency of 44Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Q11 Meta is a 4 ohms speaker compared to the Prime Pinnacle which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Q11 Meta can provide this impedance level.
These two speakers also have different sensitivity levels. Q11 Meta sensitivity is rated at 89 dB and the Prime Pinnacle's is rated at 88 dB. This 1 dB difference makes the KEF Q11 Meta a more sensitive speaker compared to SVS Prime Pinnacle, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Q11 Meta can handle a max power of 300 watts RMS from the amp the whereas Q11 Meta has a max power handling value of 225 watts RMS , 75 watts less than the Prime Pinnacle.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Q11 Meta features 5-Way post type posts and Prime Pinnacle has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
SVS Prime Pinnacle's 5-Way post terminals
Cabinet Type and Port Position
Both Q11 Meta and Prime Pinnacle have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

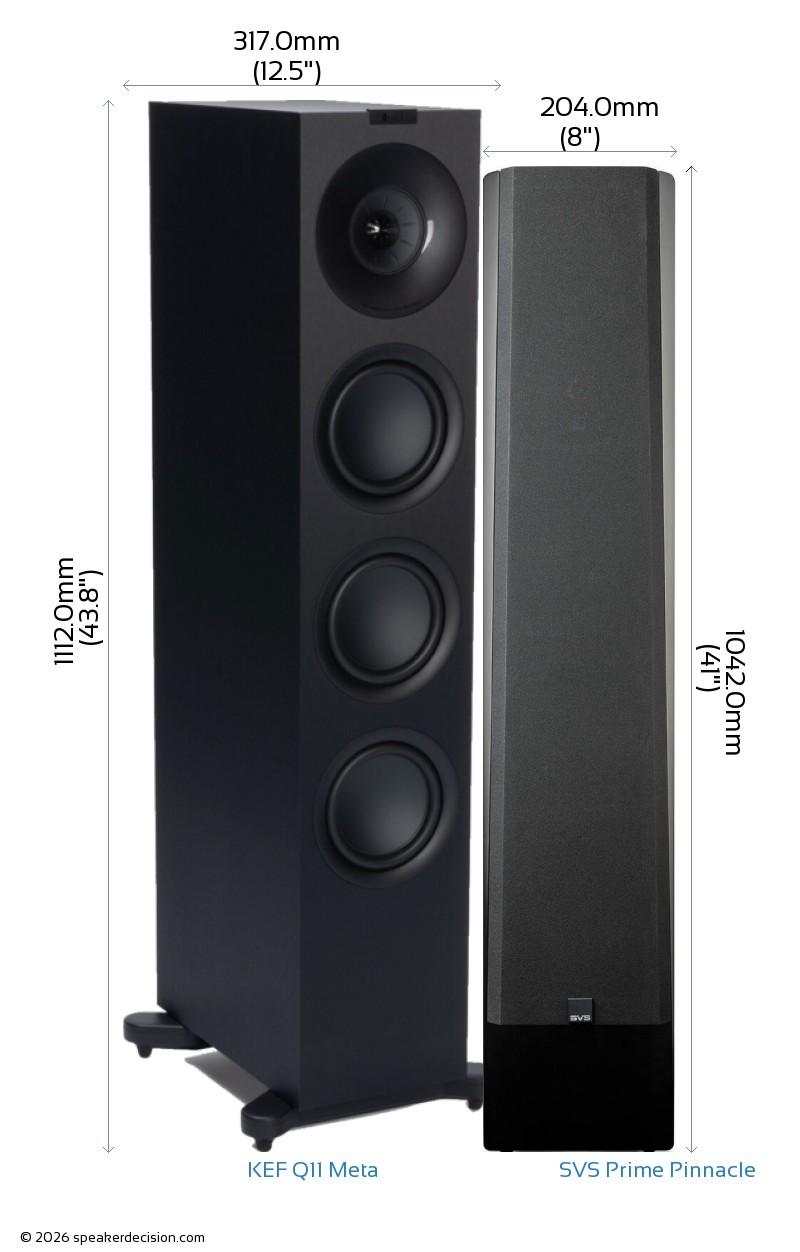

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF Q11 Meta's and SVS Prime Pinnacle's external dimensions. KEF Q11 Meta has external dimensions of 1112 x 317 x 380 mm ( 43.8 x 12.5 x 15.0 in.) whereas SVS Prime Pinnacle has external dimensions of 1042.0 x 204.0 x 355.0mm ( 41 x 8 x 13-15/16inch) .
KEF Q11 Meta is clearly the larger of the two speakers. Its body is 113mm wider, 70mm taller and 25mm deeper than SVS Prime Pinnacle.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF Q11 Meta is approximately 1204.6cm2 / 186.7inch2 and base area of the SVS Prime Pinnacle is approximately 724.2cm2 / 112.3inch2. The Q11 Meta requires 66% more surface area than the Prime Pinnacle which gives it a small disadvantage on placement in tight spaces.
What's in the Box of KEF Q11 Meta?
Here are the items that are included inside the box of Q11 Meta:
Q11 Meta Magnetic grilles Plinth and rubber feet Port bungs User manual and warranty information
What's in the Box of SVS Prime Pinnacle?
Here are the items that come with the Prime Pinnacle:
Floorstanding loudspeakerGrille (pre-installed)4 Elastomer isolation feet (pre-installed)4 Spike feet4 Nuts4 Protective discsOwners ManualSVS brochureOnline Product Registration Card
