In this review, we will be comparing S 801 PM and A5+ Wireless, two Powered Bookshelf speakers from Jamo and Audioengine. Being Powered speakers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features
of Jamo S 801 PM and Audioengine A5+ Wireless first before getting into our more
detailed comparison.
Jamo S 801 PM Key Specs
- 2-way Design
- 50-watt RMS( 100-watt Peak) Integrated Amplifier
- 1" Soft-Dome Tweeter
- 4" Polyfiber Woofer
- 76-26k Hz Frequency Response
- 24-bit Max Depth / 96 kHz Max Sample Rate
- Built-in 3.0 Bluetooth
- Dimensions (H x W x D): 285.8" x 6.1875" x 7.8125"( 285.8 x 157.2 x 198.4mm )
Audioengine A5+ Wireless Key Specs
- 2-way Design
- 100-watt RMS Integrated Amplifier
- 0.75" Soft-Dome Tweeter
- 5" Kevlar Woofer
- 50-22k Hz Frequency Response
- 24-bit Max Depth / 44.1 kHz Max Sample Rate
- Built-in 4.0 Bluetooth
- Weight:4.40kg
- Dimensions (H x W x D): 276.2" x 7.1875" x 9.75"( 276.2 x 182.6 x 247.6mm )
In the following sections, we will get into more detail in order to better understand how the Jamo S 801 PM and Audioengine A5+ Wireless compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both S 801 PM and A5+ Wireless are 2-way speakers.
| Driver |
Jamo S 801 PM |
Audioengine A5+ Wireless |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
0.75-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4-inch
|
1 x 5-inch
|
S 801 PM features a 1" Silk Soft-Dome Tweeter and 1 x 4" Polyfiber Woofer . On the other hand, the A5+ Wireless features a 0.75" Silk Soft-Dome Tweeter and 1 x 5" Kevlar Woofer .
Frequency Response
S 801 PM has a frequency range of 76-26k Hz whereas A5+ Wireless has a frequency range of 50-22k Hz. With a minimum frequency of 50Hz, the A5+ Wireless can go significantly deeper on the low side and provide stronger bass compared to the S 801 PM's min frequency of 76Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Cabinet Type and Port Position
Both S 801 PM and A5+ Wireless have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

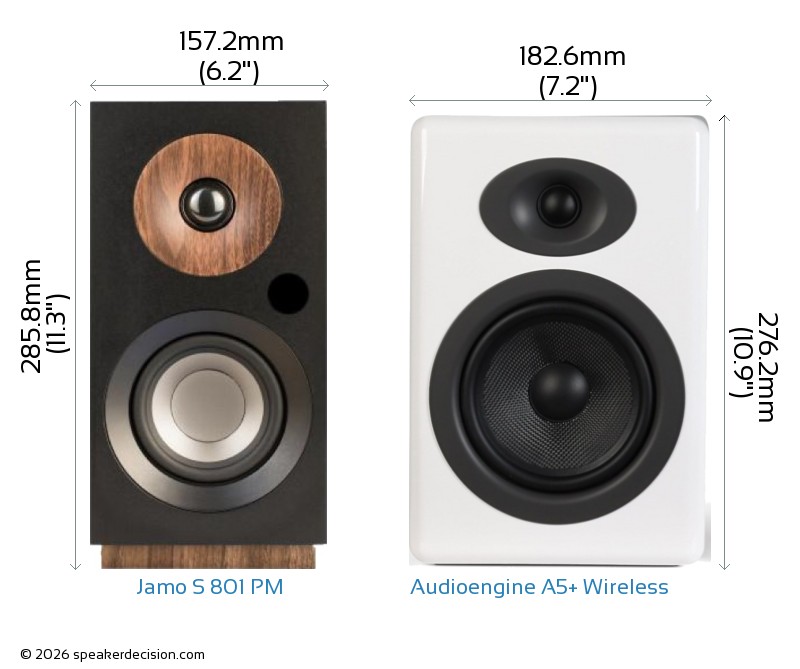

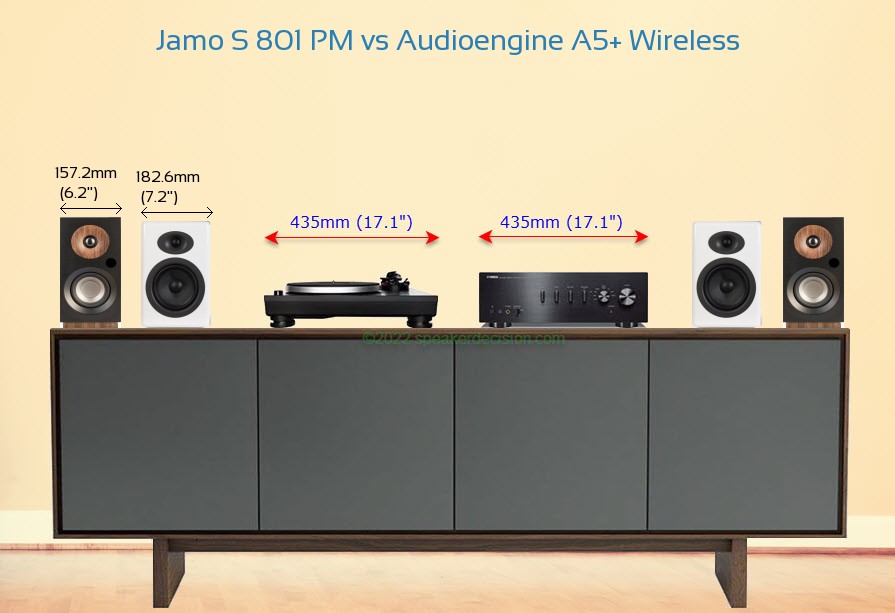

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Jamo S 801 PM's and Audioengine A5+ Wireless's external dimensions. Jamo S 801 PM has external dimensions of 285.8 x 157.2 x 198.4mm ( 11.25 x 6.1875 x 7.8125inch) whereas Audioengine A5+ Wireless has external dimensions of 276.2 x 182.6 x 247.6mm ( 10.875 x 7.1875 x 9.75inch) .
Jamo S 801 PM is 25.4mm narrower and 49.2mm less deeper than Audioengine A5+ Wireless but it is also 9.6mm taller.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Jamo S 801 PM is approximately 311.9cm2 / 48.3inch2 and base area of the Audioengine A5+ Wireless is approximately 452.1cm2 / 70.1inch2. The S 801 PM requires 31% less surface area than the A5+ Wireless which gives it a small advantage on placement in tight spaces.
What's in the Box of Jamo S 801 PM?
Here are the items that are included inside the box of S 801 PM:
Powered speaker (right) Passive speaker (left) 2 Grilles AC power adapter (attached 56-inch DC cord) AC plug insert Remote control 2 AAA batteries 6.5-feet Length of 18AWG speaker wire (bare tinned wire on each end) }6-feet USB-A to USB-B cable Instruction Booklet Important Safety Instructions
What's in the Box of Audioengine A5+ Wireless?
Here are the items that come with the A5+ Wireless:
Powered left speakerPassive right speaker6-feet AC power cordRemote control (with installed CR2025 battery)Antenna12.5-feet Length of 16 gauge speaker wire6.5-feet Stereo minijack cable6-feet Stereo RCA cableCloth drawstring cable bag2 Cloth drawstring speaker bagsSetup guideAudioengine product brochure
