In this review, we will be comparing Studio 6 88LCR and CP-WT380IDC, two Passive In-wall speakers from JBL and Monitor Audio.
Let's have a brief look at the main features
of JBL Studio 6 88LCR and Monitor Audio CP-WT380IDC first before getting into our more
detailed comparison.
| Key Specs | JBL Studio 6 88LCR | Monitor Audio CP-WT380IDC |
|---|
| Brand | JBL
United States · founded 1946 | Monitor Audio
United Kingdom · founded 1972 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1" Horn-Loaded | 1" Hard-Dome |
|---|
| Midrange | — | 4" |
|---|
| Woofer | 2 x 8" PolyPlas | 8" C-CAM |
|---|
| Frequency response | 43-20kHz | 50-30kHz |
|---|
| Sensitivity | 96 dB | 89 dB |
|---|
| Impedance | 6 ohms | 6 ohms |
|---|
| Power range | 10-175 watts | 30-120 watts |
|---|
| Weight | — | 5.67kg / 12.5lbs |
|---|
| Dimensions (H x W x D) | 20.4375" x 8.7500" x 3.7500"
520.0 x 223.0 x 96.0mm | 17.1875" x 10.5625" x 3.8750"
437.0 x 269.0 x 99.0mm |
|---|
What size room are the JBL Studio 6 88LCR and Monitor Audio CP-WT380IDC speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Studio 6 88LCR |
Monitor Audio CP-WT380IDC |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Studio 6 88LCR is a 2-way design whereas the CP-WT380IDC is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
JBL Studio 6 88LCRMonitor Audio CP-WT380IDC
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
JBL Studio 6 88LCR |
Monitor Audio CP-WT380IDC |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 4-inch |
|
Woofer
|
2 x 8-inch
|
1 x 8-inch
|
Studio 6 88LCR features a 1" Horn-Loaded Tweeter and 2 x 8" PolyPlas Woofer. On the other hand, the CP-WT380IDC features a 1" Hard-Dome Tweeter, a 4" Midrange and 1 x 8" C-CAM Woofer.
Frequency Response
Studio 6 88LCR has a frequency range of 43-20kHz whereas CP-WT380IDC has a frequency range of 50-30kHz. With a minimum frequency of 43Hz, the Studio 6 88LCR can go significantly deeper on the low side and provide stronger bass compared to the CP-WT380IDC's min frequency of 50Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Studio 6 88LCR and CP-WT380IDC have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Studio 6 88LCR sensitivity is rated at 96 dB and the CP-WT380IDC's is at 89 dB. This 7 dB difference makes the JBL Studio 6 88LCR a more sensitive speaker compared to Monitor Audio CP-WT380IDC, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Studio 6 88LCR can handle a max power of 175 watts RMS, whereas CP-WT380IDC has a max power handling value of 120 watts RMS, 55 watts less than the Studio 6 88LCR.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Monitor Audio CP-WT380IDC
Input Type and Bi-Amping / Bi-Wiring
Studio 6 88LCR features Spring post type posts and CP-WT380IDC has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Studio 6 88LCR's and Monitor Audio CP-WT380IDC's external dimensions. JBL Studio 6 88LCR has external dimensions of 520.0 x 223.0 x 96.0mm (20.4375-inch x 8.7500-inch x 3.7500-inch) whereas Monitor Audio CP-WT380IDC has external dimensions of 437.0 x 269.0 x 99.0mm (17.1875-inch x 10.5625-inch x 3.8750-inch).
JBL Studio 6 88LCR is 46mm narrower and 3mm less deeper than Monitor Audio CP-WT380IDC but it is also 83mm taller.

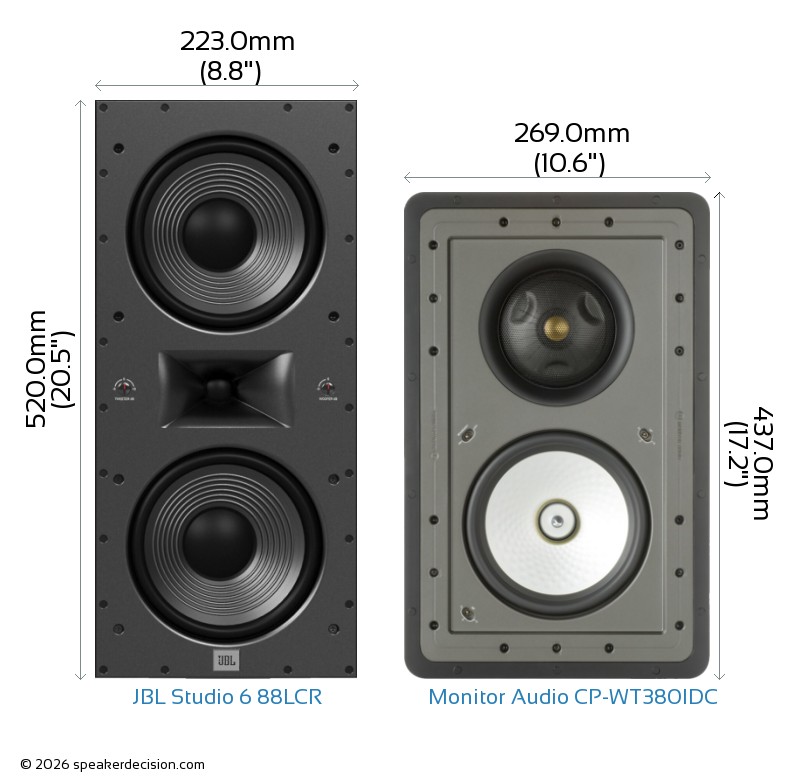

Below you can see the front view size comparison of JBL Studio 6 88LCR and Monitor Audio CP-WT380IDC in scale.
Comparison image of JBL Studio 6 88LCR and Monitor Audio CP-WT380IDC Size and External Dimensions
What's in the Box of JBL Studio 6 88LCR?
Here are the items that are included inside the box of Studio 6 88LCR:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
What's in the Box of Monitor Audio CP-WT380IDC?
Here are the items that come with the CP-WT380IDC:
- In-Wall speaker
- Magnetic grille
- Paint skim
- Installation Guide
- Important Safety Instructions
- Limited Warranty/Registration Card
- MountingTemplate
