In this review, we will be comparing Kanta No.1 and M126Be, two Passive Bookshelf speakers from Focal and Revel.
Let's have a brief look at the main features
of Focal Kanta No.1 and Revel M126Be first before getting into our more
detailed comparison.
Focal Kanta No.1 Key Specs
- 2-way Design
- 1.1" Hard-Dome Tweeter
- 6.5" Flax Woofer
- 46-40k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-150watts
- Weight:13.05kg
- Dimensions (H x W x D): 609.6" x 9-1/4" x 15-7/16"( 609.6 x 228.6 x 393.0mm )
Revel M126Be Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 6.5" DCC Aluminum Woofer
- 54-44k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-150watts
- Weight:10.00kg
- Dimensions (H x W x D): 388.0" x 8-5/16" x 10-5/16"( 388.0 x 212.0 x 262.0mm )
What size room are the Focal Kanta No.1 and Revel M126Be speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Focal Kanta No.1 |
Revel M126Be |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Focal Kanta No.1 and Revel M126Be compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Kanta No.1 and M126Be are 2-way speakers.
| Driver |
Focal Kanta No.1 |
Revel M126Be |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
Kanta No.1 features a 1.1" Hard-Dome Tweeter and 1 x 6.5" Flax Woofer with a Crossover frequency at 2400 Hz. On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer .
Frequency Response
Kanta No.1 has a frequency range of 46-40k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 46Hz, the Kanta No.1 can go significantly deeper on the low side and provide stronger bass compared to the M126Be's min frequency of 54Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Kanta No.1 and M126Be have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Kanta No.1 sensitivity is rated at 88 dB and the M126Be's is at 86 dB. This 2 dB difference makes the Focal Kanta No.1 a more sensitive speaker compared to Revel M126Be, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Kanta No.1 features Binding post type posts and M126Be has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Focal Kanta No.1's Binding post terminals
Cabinet Type and Port Position
Both Kanta No.1 and M126Be have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

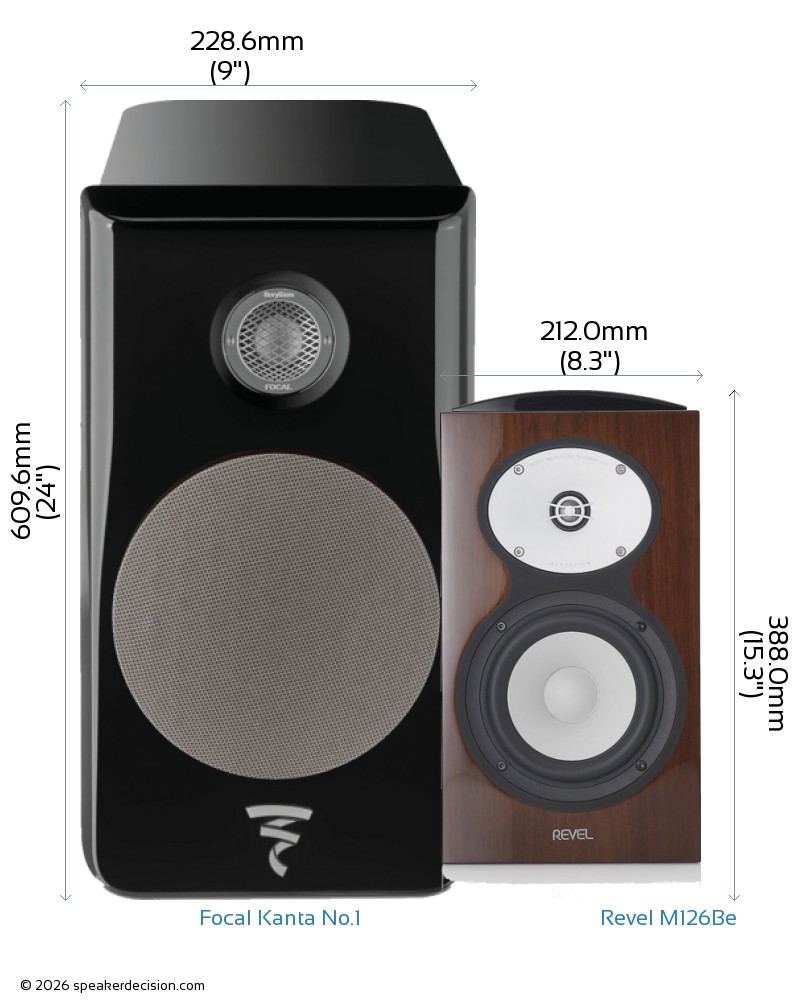

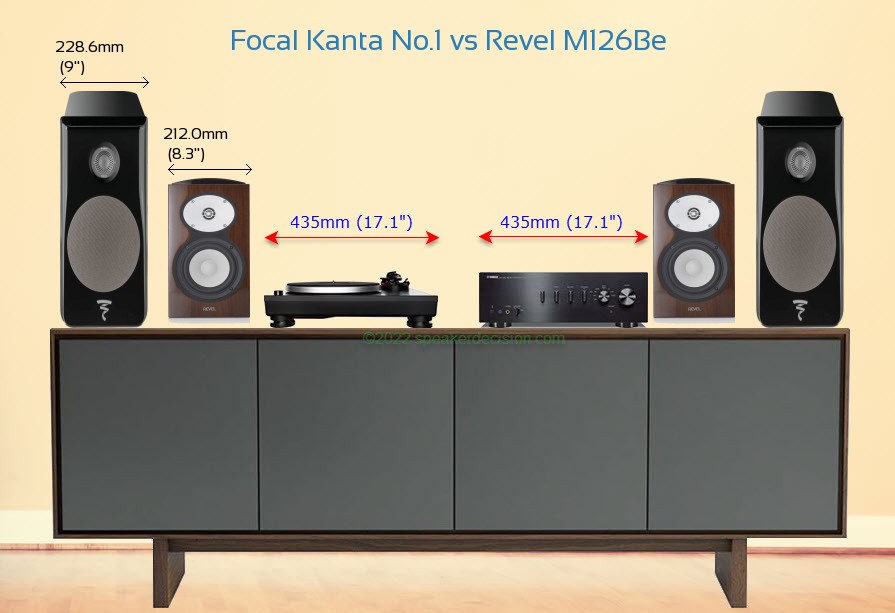

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Focal Kanta No.1's and Revel M126Be's external dimensions. Focal Kanta No.1 has external dimensions of 609.6 x 228.6 x 393.0mm ( 24-28inch x 9-1/4inch x 15-7/16inch ) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm ( 15-1/4 x 8-5/16 x 10-5/16inch) .
Focal Kanta No.1 is clearly the larger of the two speakers. Its body is 16.6mm wider, 221.6mm taller and 131mm deeper than Revel M126Be.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Focal Kanta No.1 is approximately 898.4cm2 / 139.3inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The Kanta No.1 requires 62% more surface area than the M126Be which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Focal Kanta No.1 weighs 13.05kg / 28.7lbs and the Revel M126Be weighs 10.00kg / 22lbs. This makes the Kanta No.1 31% heavier than the M126Be.
Here is a comparison of how Kanta No.1 and M126Be's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Focal Kanta No.1?
Here are the items that are included inside the box of Kanta No.1:
Bookshelf loudspeakerGrillePort plug4 Slicone padsUser Manual
What's in the Box of Revel M126Be?
Here are the items that come with the M126Be:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
 Sensitivity |
88 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
46 Hz
vs
54 Hz
|
Generates deeper bass |
 High Frequency Response |
44k Hz
vs
40k Hz
|
Generates higher frequency |
 Height |
388mm
vs
609mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
555cm2
vs
898cm2
|
Takes less floor space |
 Price per pair* |
4400USD
vs
7998USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Focal Kanta No.1 |
Revel PerformaBe M126Be |
| Brand |
Focal |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-150 watts |
50-150 watts |
| Sensitivity |
88 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.9 ohms |
n/a |
| Frequency Response |
46-40k Hz |
54-44k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Flax |
DCC Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.1" |
1" |
| Tweeter Type |
Hard-Dome |
Hard-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2400 Hz |
n/a |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
609.6mm (24") |
388.0mm (15.3") |
| Width |
228.6mm (9") |
212.0mm (8.3") |
| Depth |
393.0mm (15.5") |
262.0mm (10.3") |
| Weight |
13.05kg (28.7lbs) |
10.00kg (22lbs) |
| Enclosure |
Bass Reflex |
Bass reflex |
| Finish |
Multi-ply/Polymer/Veneer |
Wood/Lacquer |
| Available Colors |
High-Gloss Carrara White, High-Gloss Black/Deep Black, Matte Walnut/Dark Grey,Matte Walnut/Ivory |
Walnut,Black,White,Silver |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-28" |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
