ELAC Vertex Series III IW VJ63 M vs ELAC Vertex Series III IW VJ63 W Speaker Comparison

In this review, we will be comparing Vertex Series III IW VJ63 M and Vertex Series III IW VJ63 W, two Passive In-wall speakers by ELAC.

Let's have a brief look at the main features of ELAC Vertex Series III IW VJ63 M and ELAC Vertex Series III IW VJ63 W first before getting into our more detailed comparison.

Key Specs	ELAC Vertex Series III IW VJ63 M	ELAC Vertex Series III IW VJ63 W
Brand	ELAC Germany · founded 1926	ELAC Germany · founded 1926
Design	2-way	2-way
Woofer	2 x 6"	6"
Frequency response	42-50k Hz	45-40k Hz
Sensitivity	88 dB	88 dB
Impedance	4 ohms	4 ohms
Dimensions (H x W x D)	33-9/16" x 9-3/4" x 3-13/16" 852.5 x 247.7 x 97.0mm	12-11/16" x 8-1/2" x 4-1/16" 322.3 x 215.9 x 102.5mm

Vertex Series III IW VJ63 M and Vertex Series III IW VJ63 W are members of ELAC's Vertex Series III series of speakers. Below you can find the loudspeakers from this series.

ELAC Vertex Series III Series History

Model	Body	Frequency	Sensitivity	Impedance	Woofer
ELAC Vertex Series III IW VJ63 S	In-wall	48-50k Hz	88 dB	4Ω	1 x 6"
ELAC Vertex Series III IW VJ63 M	In-wall	42-50k Hz	88 dB	4Ω	2 x 6"
ELAC Vertex Series III IW VJ63 L	In-wall	42-50k Hz	88 dB	4Ω	2 x 6"
ELAC Vertex Series III IW VJ63 W	In-wall	45-40k Hz	88 dB	4Ω	1 x 6"

The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.

Drivers

Both Vertex Series III IW VJ63 M and Vertex Series III IW VJ63 W are 2-way speakers.

ELAC Vertex Series III IW VJ63 M

ELAC Vertex Series III IW VJ63 W

Woofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

Driver	ELAC Vertex Series III IW VJ63 M	ELAC Vertex Series III IW VJ63 W
Driver Setup	2-way	2-way
Tweeter	-inch	-inch
Midrange	-	-
Woofer	2 x 6-inch	1 x 6-inch

Vertex Series III IW VJ63 M features a " Tweeter and 2 x 6" Woofer. On the other hand, the Vertex Series III IW VJ63 W features a " Tweeter and 1 x 6" Woofer.

Frequency Response

Vertex Series III IW VJ63 M has a frequency range of 42-50k Hz whereas Vertex Series III IW VJ63 W has a frequency range of 45-40k Hz. With a minimum frequency of 42Hz, the Vertex Series III IW VJ63 M can go slightly deeper then the Vertex Series III IW VJ63 W's min frequency of 45Hz.

The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

Vertex Series III IW VJ63 M

Vertex Series III IW VJ63 W

Min

Average

Median

Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

Vertex Series III IW VJ63 M and Vertex Series III IW VJ63 W have the same Impedance of 4 ohms and their sensitivity is also same at 88 dB.

One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the Vertex Series III IW VJ63 M and the Vertex Series III IW VJ63 M can provide this impedance level.

Sensitivity

In-wall Speakers

Vertex Series III IW VJ63 M

Vertex Series III IW VJ63 W

Min

Average

Median

Which plays louder on your amplifier?

Starting with a popular amplifier - change it to the one you own, or any you are considering, and watch both numbers move.

Amplifier - change this

Distance

Playing as

ELAC Vertex Series III IW VJ63 M

ELAC Vertex Series III IW VJ63 W

Input Type and Bi-Amping / Bi-Wiring

Vertex Series III IW VJ63 M features Spring post type posts and Vertex Series III IW VJ63 W has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Vertex Series III IW VJ63 M's and ELAC Vertex Series III IW VJ63 W's external dimensions. ELAC Vertex Series III IW VJ63 M has external dimensions of 852.5 x 247.7 x 97.0mm () whereas ELAC Vertex Series III IW VJ63 W has external dimensions of 322.3 x 215.9 x 102.5mm ().

ELAC Vertex Series III IW VJ63 W is 31.8mm narrower and 530.2mm shorter than ELAC Vertex Series III IW VJ63 M but it is also 5.5mm deeper.

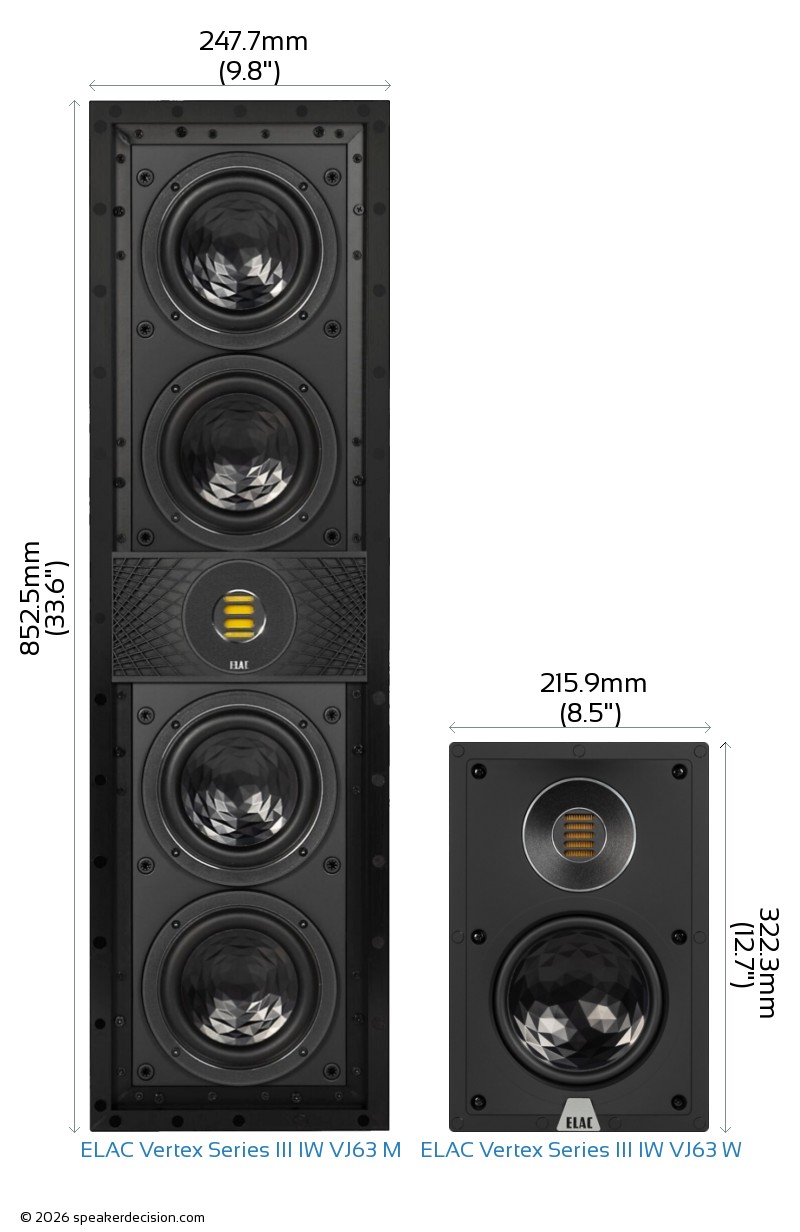

Below you can see the front view size comparison of ELAC Vertex Series III IW VJ63 M and ELAC Vertex Series III IW VJ63 W in scale.

Comparison image of ELAC Vertex Series III IW VJ63 M and ELAC Vertex Series III IW VJ63 W Size and External Dimensions

Reasons to choose ELAC Vertex Series III IW VJ63 M over ELAC Vertex Series III IW VJ63 W

Number of Woofers	2 vs 1	More woofers
Low Frequency Response	42 Hz vs 45 Hz	Generates deeper bass
High Frequency Response	50k Hz vs 40k Hz	Generates higher frequency

Reasons to choose ELAC Vertex Series III IW VJ63 W over ELAC Vertex Series III IW VJ63 M

Height	322mm vs 852mm	Easier to fit in smaller spaces
Base Surface Area	221cm² vs 240cm²	Takes less floor space
Price per pair*	2198USD vs 6598USD	costs less (*prices may change depending on the seller, location and time)

ELAC Vertex Series III IW VJ63 M vs ELAC Vertex Series III IW VJ63 W Specs Table

Detailed comparison of specifications

General	ELAC Vertex Series III IW VJ63 M	ELAC Vertex Series III IW VJ63 W
Brand	ELAC	ELAC
Speaker Type	Passive In-wall Speaker	Passive In-wall Speaker
Sensitivity	88 dB	88 dB
Impedance	4 ohms	4 ohms
Frequency Response	42-50k Hz	45-40k Hz
Drivers
Woofer Quantity	2	1
Woofer Size	6"	6"
Woofer Composition
Tweeter Size	-	-
Aimable Tweeter	No	No
Midrange Driver	No	No
Physical Specs
Height	852.5mm (33.6")	322.3mm (12.7")
Width	247.7mm (9.8")	215.9mm (8.5")
Depth	97.0mm (3.8")	102.5mm (4")
Enclosure
Moisture Resistancy	No	No
Connections
Other
Parts Warranty	3 Years	3 Years
Labor Warranty	3 Years	3 Years

Verdict

Siblings in ELAC's Vertex Series III series, so they share a family sound. It comes down to size, output and price.

Area	Better	Why
Bass	A	ELAC Vertex Series III IW VJ63 M digs deeper - 42Hz against 45Hz. A subwoofer would even that out.
Amplifier needs	evenly matched	Similar sensitivity (88dB vs 88dB) - both want much the same power.
Size	depends	ELAC Vertex Series III IW VJ63 W is easier to place; ELAC Vertex Series III IW VJ63 M is bigger, which usually goes with fuller bass. Your room decides.
Price	B	ELAC Vertex Series III IW VJ63 W is cheaper - $2,198 against $6,598, about 67% less; arguably a different class.

A ELAC Vertex Series III IW VJ63 M B ELAC Vertex Series III IW VJ63 W
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

ELAC Vertex Series III IW VJ63 M is ahead, but only on 1 of the measured areas, and it costs about 3x the price. That is a lot of money for a narrow margin on paper - ELAC Vertex Series III IW VJ63 W looks like the sensible buy unless something else about the ELAC Vertex Series III IW VJ63 M appeals to you. In a large or open-plan room, ELAC Vertex Series III IW VJ63 M has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, ELAC Vertex Series III IW VJ63 W is the easier speaker to get right. Think about the whole system, not just the speakers: the roughly $4,400 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.

And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
