ELAC Navis ARF-51 vs ELAC Navis ARB-51 Comparison

x
Speaker to replace
Change

ELAC Navis ARF-51

Powered Floor-standing | 43-28k Hz

ELAC Navis ARF-51
Check price atAmazon›
Change

ELAC Navis ARB-51

Powered Bookshelf | 44-28k Hz

ELAC Navis ARB-51
Check price atAmazon›
ELAC Navis ARF-51 ELAC Navis ARF-51
Check price atAmazon›
ELAC Navis ARB-51 ELAC Navis ARB-51
Check price atAmazon›
ELAC Navis ARF-51
See at AMAZON
ELAC Navis ARB-51
See at AMAZON

ELAC Navis ARF-51 vs ELAC Navis ARB-51 Speaker Comparison

In this review, we will be comparing two different types of speakers by ELAC. ELAC Navis ARF-51 is a Floor-standing speaker whereas the Navis ARB-51 is a Bookshelf speaker.

Let's have a brief look at the main features of ELAC Navis ARF-51 and ELAC Navis ARB-51 first before getting into our more detailed comparison.

Key SpecsELAC Navis ARF-51ELAC Navis ARB-51
BrandELAC
Germany · founded 1926
ELAC
Germany · founded 1926
Design3-way3-way
Built-in amplifier300-watt RMS300-watt RMS (600-watt peak)
Tweeter1" Soft-Dome1" Soft-Dome
Midrange4"4"
Woofer5.25" Aluminum5.25" Aluminum
Frequency response43-28k Hz44-28k Hz
BluetoothOptionalOptional
Weight21.00kg / 46.2lbs8.10kg / 17.8lbs
Dimensions (H x W x D)42.125" x 9.6875" x 11.5625"
1070.0 x 247.0 x 294.0mm
13.8125" x 7.5625" x 11.3125"
350.8 x 192.1 x 287.3mm

Navis ARF-51 and Navis ARB-51 are members of ELAC's Navis series of speakers. Below you can find the loudspeakers from this series.

ELAC Navis Series History
Model Body Frequency Watts RMSMax Depth / Sample Rate Woofer
ELAC Navis ARB-51
Bookshelf 44-28k Hz 300-watt/Ω 1 x 5.25"
ELAC Navis ARF-51
Floor-standing 43-28k Hz 300-watt/Ω 1 x 5.25"

The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.


Drivers

Both Navis ARF-51 and Navis ARB-51 are 3-way speakers.

Tweeter - 1 inchMidrange - 4 inchWoofer - 5.25 inch
ELAC Navis ARF-51
Tweeter - 1 inchMidrange - 4 inchWoofer - 5.25 inch
ELAC Navis ARB-51

TweeterMidrangeWoofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

Driver ELAC Navis ARF-51 ELAC Navis ARB-51
Driver Setup 3-way 3-way
Tweeter 1-inch 1-inch
Midrange 1 x 4-inch 1 x 4-inch
Woofer 1 x 5.25-inch 1 x 5.25-inch

Navis ARF-51 features a 1" Fabric Soft-Dome Tweeter, a 4" Midrange and 1 x 5.25" Aluminum Woofer. On the other hand, the Navis ARB-51 features a 1" Fabric Soft-Dome Tweeter, a 4" Midrange and 1 x 5.25" Aluminum Woofer.

Frequency Response

Navis ARF-51 has a frequency range of 43-28k Hz whereas Navis ARB-51 has a frequency range of 44-28k Hz. With a minimum frequency of 43Hz, the Navis ARF-51 can go slightly deeper then the Navis ARB-51's min frequency of 44Hz.

The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.

Low Frequency

Floor-standing Speakers

Navis ARF-51
Navis ARB-51
Min
Average
Median

Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.

Cabinet Type and Port Position

Both Navis ARF-51 and Navis ARB-51 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.

If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Navis ARF-51's and ELAC Navis ARB-51's external dimensions. ELAC Navis ARF-51 has external dimensions of 1070.0 x 247.0 x 294.0mm (42.125 x 9.6875 x 11.5625inch) whereas ELAC Navis ARB-51 has external dimensions of 350.8 x 192.1 x 287.3mm (13.8125 x 7.5625 x 11.3125inch).

ELAC Navis ARF-51 is clearly the larger of the two speakers. Its body is 54.9mm wider, 719.2mm taller and 6.7mm deeper than ELAC Navis ARB-51.

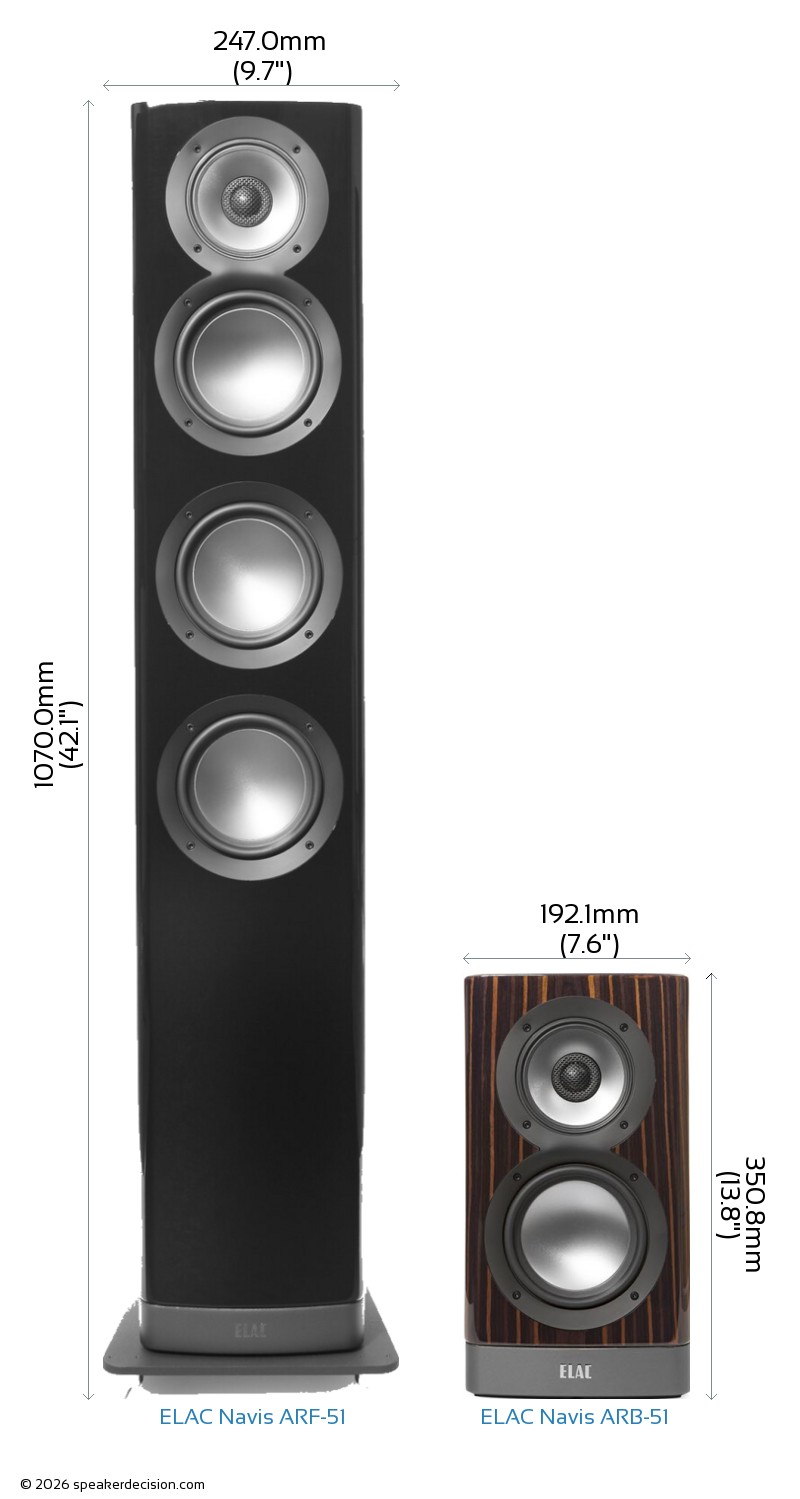

Below you can see the front view size comparison of ELAC Navis ARF-51 and ELAC Navis ARB-51 in scale.

ELAC Navis ARF-51 vs ELAC Navis ARB-51 Size Comparison - Front View
Comparison image of ELAC Navis ARF-51 and ELAC Navis ARB-51 Size and External Dimensions

Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base surface area of the ELAC Navis ARF-51 is approximately 726.2cm2 / 112.6inch2 and base area of the ELAC Navis ARB-51 is approximately 551.9cm2 / 85.5inch2. The Navis ARF-51 requires 32% more surface area than the Navis ARB-51 which gives it a small disadvantage on placement in tight spaces.

What's in the Box of ELAC Navis ARF-51?

Here are the items that are included inside the box of Navis ARF-51:
  • Powered floorstanding loudspeaker
  • 8-feet AC power cord
  • Base plate
  • 4 Spikes
  • 4 Isolation pucks
  • 4 Screws
  • Operating Instructions

What's in the Box of ELAC Navis ARB-51?

Here are the items that come with the Navis ARB-51:
  • 2 Powered bookshelf loudspeakers
  • Two 8-feet AC power cords
  • Operating Instructions


Reasons to choose ELAC Navis ARF-51 over ELAC Navis ARB-51

Low Frequency Response 43 Hz vs 44 Hz Generates deeper bass
High Frequency Response 38k Hz vs 28k Hz Generates higher frequency
XLR Connection Yes vs No Connection via XLR input

Reasons to choose ELAC Navis ARB-51 over ELAC Navis ARF-51

Height 350mm vs 1070mm Easier to fit in smaller spaces
Base Surface Area 551cm2 vs 726cm2 Takes less floor space
Price per pair* 1998USD vs 3798USD costs less (*prices may change depending on the seller, location and time)
XLR Connection Yes vs No Connection via XLR input

ELAC Navis ARF-51 vs ELAC Navis ARB-51 Specs Table

Detailed comparison of specifications
General ELAC Navis ARF-51 ELAC Navis ARB-51
Brand ELAC ELAC
Speaker Type Powered Stereo Speakers Powered Stereo Speakers
Frequency Response 43-28k Hz 44-28k Hz
Amplifier
Watts RMS (Continuous) 300-watt RMS 300-watt RMS
Watts Peak (Max) n/a 600-watt RMS
Drivers
Woofer Quantity 1 1
Woofer Size 5.25" 5.25"
Woofer Composition Aluminum Aluminum
Tweeter Size 1" 1"
Tweeter Type Soft-Dome Soft-Dome
Aimable Tweeter No No
Midrange Driver 4" 4"
Firing Direction rear rear
Physical Specs
Height 1070.0mm (42.1") 350.8mm (13.8")
Width 247.0mm (9.7") 192.1mm (7.6")
Depth 294.0mm (11.6") 287.3mm (11.3")
Weight 21.00kg (46.2lbs) 8.10kg (17.8lbs)
Enclosure Bass Reflex Bass Reflex
Mounting Bracket No No
Moisture Resistancy No No
Connections
Aux Inputs XLR, RCA XLR, RCA
USB Port No No
Phone Input No No
Subwoofer Output No No
Digital Input No No
HDMI Input No No
Headphone Jack No No
Ethernet Port No No
Other
Parts Warranty 3 Years 3 Years
Labor Warranty 3 Years 3 Years

Verdict

Siblings in ELAC's Navis series, so they share a family sound. It comes down to size, output and price.

AreaBetterWhy
Bassevenly matchedMuch the same reach (43Hz vs 44Hz).
Built-in powerevenly matchedSimilar onboard amplification (300W vs 300W RMS).
Connectionsevenly matchedThe same set of inputs and streaming options.
SizedependsELAC Navis ARB-51 is easier to place; ELAC Navis ARF-51 is bigger, which usually goes with fuller bass. Your room decides.
TypedependsA Powered Floor-standing against a Powered Bookshelf - a different job rather than a better one.
PriceBELAC Navis ARB-51 is cheaper - $1,998 against $3,798, about 47% less; arguably a different class.

A ELAC Navis ARF-51  B ELAC Navis ARB-51
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. In a large or open-plan room, ELAC Navis ARF-51 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, ELAC Navis ARB-51 is the easier speaker to get right. Think about the whole system, not just the speakers: the roughly $1,800 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.

And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
