In this review, we will be comparing Debut IW-D61-W and Stage 280W, two Passive In-wall speakers from ELAC and JBL.
Let's have a brief look at the main features
of ELAC Debut IW-D61-W and JBL Stage 280W first before getting into our more
detailed comparison.
| Key Specs | ELAC Debut IW-D61-W | JBL Stage 280W |
|---|
| Brand | ELAC
Germany · founded 1926 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Horn-Loaded |
|---|
| Woofer | 6.5" Woven Aramid-Fiber | 8" Polycellulose |
|---|
| Frequency response | 45-20kHz | 42-25kHz |
|---|
| Sensitivity | 89 dB | 90 dB |
|---|
| Impedance | 6 ohms | 8 ohms |
|---|
| Power range | 30-120 watts | 20-120 watts |
|---|
| Weight | 4.04kg / 8.9lbs | — |
|---|
| Dimensions (H x W x D) | 11.6250" x 7.4375" x 3.9375"
296.0 x 189.0 x 101.0mm | 14.6875" x 9.3750" x 3.8750"
374.0 x 239.0 x 99.0mm |
|---|
What size room are the ELAC Debut IW-D61-W and JBL Stage 280W speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
ELAC Debut IW-D61-W |
JBL Stage 280W |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Debut IW-D61-W and Stage 280W are 2-way speakers.
ELAC Debut IW-D61-WJBL Stage 280W
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
ELAC Debut IW-D61-W |
JBL Stage 280W |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 8-inch
|
Debut IW-D61-W features a 1" Soft-Dome Tweeter and 1 x 6.5" Woven Aramid-Fiber Woofer. On the other hand, the Stage 280W features a 1" Horn-Loaded Tweeter and 1 x 8" Polycellulose Woofer.
Frequency Response
Debut IW-D61-W has a frequency range of 45-20kHz whereas Stage 280W has a frequency range of 42-25kHz. With a minimum frequency of 42Hz, the Stage 280W can go slightly deeper then the Debut IW-D61-W's min frequency of 45Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Debut IW-D61-W is a 6 ohms speaker compared to the Stage 280W which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. Debut IW-D61-W sensitivity is rated at 89 dB and the Stage 280W's is rated at 90 dB. This 1 dB difference makes the JBL Stage 280W a more sensitive speaker compared to ELAC Debut IW-D61-W, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 120 watts RMS, though Debut IW-D61-W is rated 30-120 watts and Stage 280W 20-120 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Debut IW-D61-W features Spring clip type posts and Stage 280W has a Spring clip type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Debut IW-D61-W's and JBL Stage 280W's external dimensions. ELAC Debut IW-D61-W has external dimensions of 296.0 x 189.0 x 101.0mm (11.6250-inch x 7.4375-inch x 3.9375-inch) whereas JBL Stage 280W has external dimensions of 374.0 x 239.0 x 99.0mm (14.6875-inch x 9.3750-inch x 3.8750-inch).
ELAC Debut IW-D61-W is 50mm narrower and 78mm shorter than JBL Stage 280W but it is also 2mm deeper.

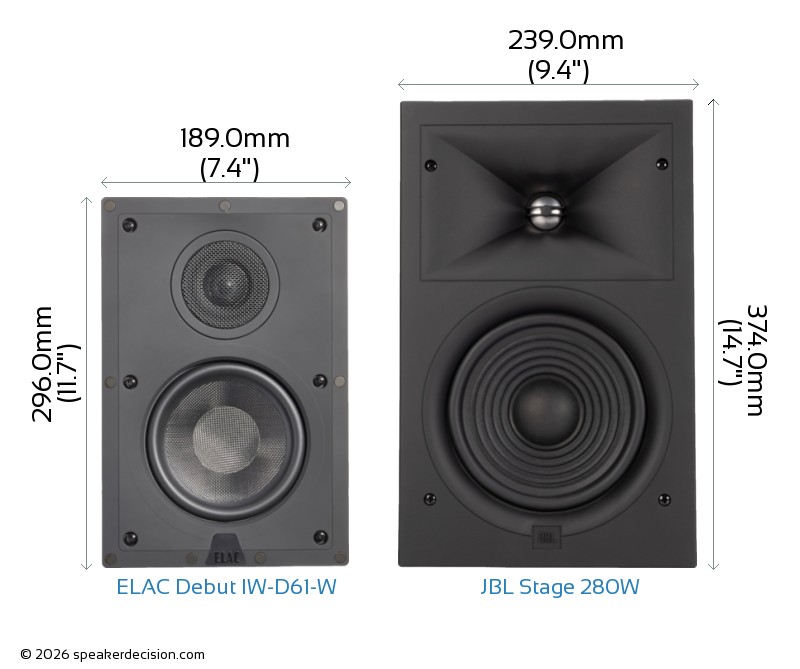

Below you can see the front view size comparison of ELAC Debut IW-D61-W and JBL Stage 280W in scale.
Comparison image of ELAC Debut IW-D61-W and JBL Stage 280W Size and External Dimensions
What's in the Box of ELAC Debut IW-D61-W?
Here are the items that are included inside the box of Debut IW-D61-W:
What's in the Box of JBL Stage 280W?
Here are the items that come with the Stage 280W:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
