In this review, we will be comparing 702 S3 and Performa3 F208, two Passive Floor-standing speakers from Bowers Wilkins and Revel.
Let's have a brief look at the main features
of B&W 702 S3 and Revel Performa3 F208 first before getting into our more
detailed comparison.
B&W 702 S3 Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6.5" Aerofoil Woofer
- 46-28k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-300watts
- Weight:33.46kg
- Dimensions (H x W x D): 1138.0" x 7.6" x 15.4"( 1138.0 x 192.0 x 391.0mm )
Revel Performa3 F208 Key Specs
- 3-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Midrange
- 2 x 8" Aluminum Woofer
- 5.25" Midrange
- 31Hz- 20kHz Frequency Response
- 88.5 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-350watts
- Weight:36.27kg
- Dimensions (H x W x D): 1188.0" x 13-5/8" x 15"( 1188.0 x 347.0 x 381.0mm )
What size room are the B&W 702 S3 and Revel Performa3 F208 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
B&W 702 S3 |
Revel Performa3 F208 |
| Near-field |
Bad |
Are you nuts? |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Good |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the B&W 702 S3 and Revel Performa3 F208 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both 702 S3 and Performa3 F208 are 3-way speakers.
| Driver |
B&W 702 S3 |
Revel Performa3 F208 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 6-inch |
1 x 5.25-inch |
|
Woofer
|
3 x 6.5-inch
|
2 x 8-inch
|
702 S3 features a 1" Tweeter , a 6" Midrange and 3 x 6.5" Aerofoil Woofer . On the other hand, the Performa3 F208 features a 1" Aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter , a 5.25" Midrange and 2 x 8" Aluminum Woofer with a Crossover frequency at 270Hz and 2200Hz.
Frequency Response
702 S3 has a frequency range of 46-28k Hz whereas Performa3 F208 has a frequency range of 31Hz- 20kHz. With a minimum frequency of 31Hz, the Performa3 F208 can go significantly deeper on the low side and provide stronger bass compared to the 702 S3's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
702 S3 and Performa3 F208 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. 702 S3 sensitivity is rated at 90 dB and the Performa3 F208's is at 88.5 dB. This 1 dB difference makes the Revel Performa3 F208 a more sensitive speaker compared to B&W 702 S3, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
702 S3 can handle a max power of 350 watts RMS from the amp the whereas 702 S3 has a max power handling value of 300 watts RMS , 50 watts less than the Performa3 F208.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both 702 S3 and Performa3 F208 features dual binding post speaker terminals for bi-amping or bi-wiring.
B&W 702 S3's Binding post terminals allows Bi-amping or bi-wiring
Revel Performa3 F208's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both 702 S3 and Performa3 F208 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

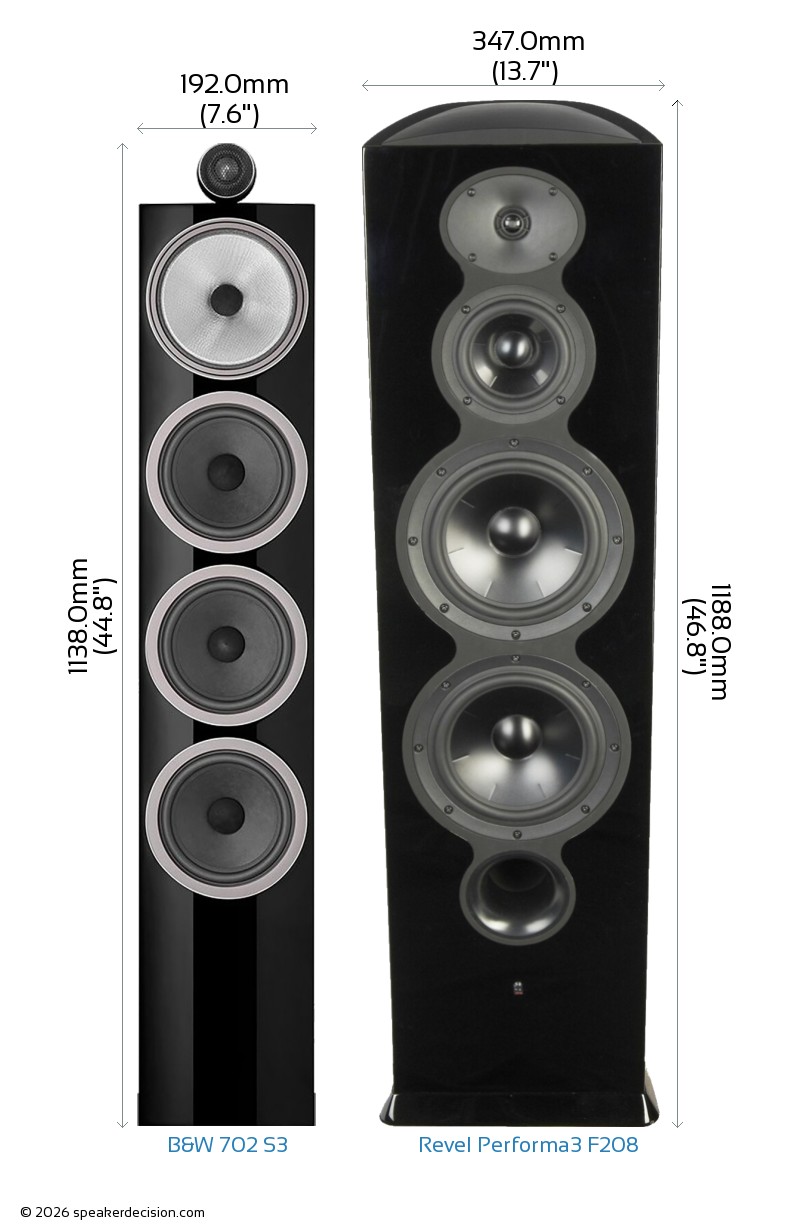

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare B&W 702 S3's and Revel Performa3 F208's external dimensions. B&W 702 S3 has external dimensions of 1138.0 x 192.0 x 391.0mm ( 44.8-inch x 7.6-inch x 15.4-inch) whereas Revel Performa3 F208 has external dimensions of 1188.0 x 347.0 x 381.0mm ( 46-3/4 x 13-5/8 x 15inch) .
B&W 702 S3 is 155mm narrower and 50mm shorter than Revel Performa3 F208 but it is also 10mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the B&W 702 S3 is approximately 750.7cm2 / 116.4inch2 and base area of the Revel Performa3 F208 is approximately 1322.1cm2 / 204.9inch2. The 702 S3 requires 43% less surface area than the Performa3 F208 which gives it a small advantage on placement in tight spaces.
