In this review, we will be comparing 702 S3 and Performa3 F206, two Passive Floor-standing speakers from Bowers Wilkins and Revel.
Let's have a brief look at the main features
of B&W 702 S3 and Revel Performa3 F206 first before getting into our more
detailed comparison.
B&W 702 S3 Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6.5" Aerofoil Woofer
- 46-28k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-300watts
- Weight:33.46kg
- Dimensions (H x W x D): 1138.0" x 7.6" x 15.4"( 1138.0 x 192.0 x 391.0mm )
Revel Performa3 F206 Key Specs
- 3-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Midrange
- 2 x 6.5" Aluminum Woofer
- 5.25" Midrange
- 42Hz- 20kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-200watts
- Weight:26.41kg
- Dimensions (H x W x D): 1058.0" x 10" x 13-7/8"( 1058.0 x 254.0 x 353.0mm )
What size room are the B&W 702 S3 and Revel Performa3 F206 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
B&W 702 S3 |
Revel Performa3 F206 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the B&W 702 S3 and Revel Performa3 F206 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both 702 S3 and Performa3 F206 are 3-way speakers.
| Driver |
B&W 702 S3 |
Revel Performa3 F206 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 6-inch |
1 x 5.25-inch |
|
Woofer
|
3 x 6.5-inch
|
2 x 6.5-inch
|
702 S3 features a 1" Tweeter , a 6" Midrange and 3 x 6.5" Aerofoil Woofer . On the other hand, the Performa3 F206 features a 1" Aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter , a 5.25" Midrange and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 275Hz and 2150Hz.
Frequency Response
702 S3 has a frequency range of 46-28k Hz whereas Performa3 F206 has a frequency range of 42Hz- 20kHz. With a minimum frequency of 42Hz, the Performa3 F206 can go slightly deeper then the 702 S3's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
702 S3 and Performa3 F206 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. 702 S3 sensitivity is rated at 90 dB and the Performa3 F206's is at 88 dB.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
702 S3 can handle a max power of 300 watts RMS from the amp the whereas Performa3 F206 has a max power handling value of 200 watts RMS, 100 watts less than the 702 S3.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
702 S3 features Binding post posts which make bi-amping or bi-wiring possible. Performa3 F206 has a Binding post which doesn't feature bi-amping/bi-wiring.
B&W 702 S3's Binding post terminals allows Bi-amping or bi-wiring
Revel Performa3 F206's Binding post terminals
Cabinet Type and Port Position
Both 702 S3 and Performa3 F206 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

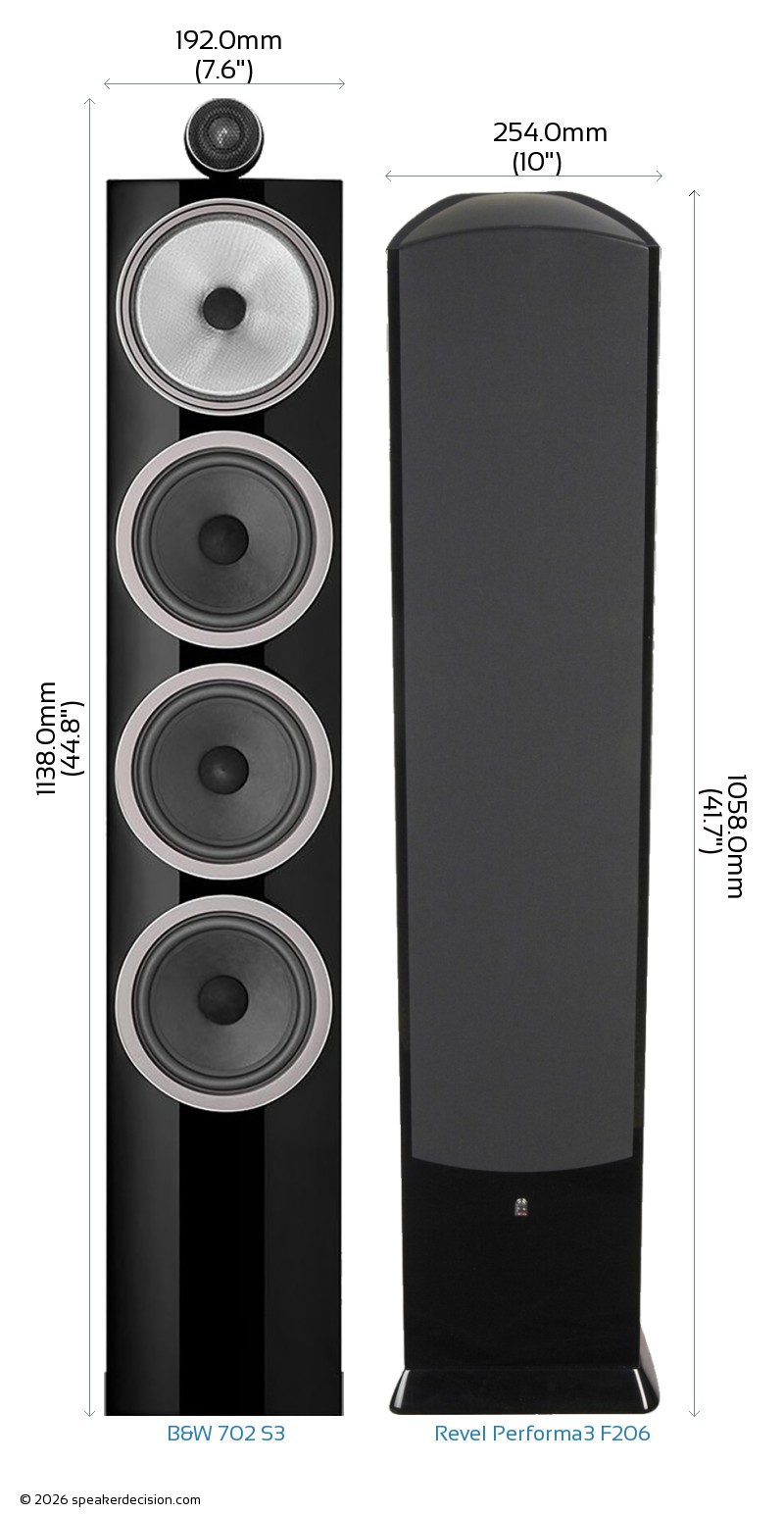

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare B&W 702 S3's and Revel Performa3 F206's external dimensions. B&W 702 S3 has external dimensions of 1138.0 x 192.0 x 391.0mm ( 44.8-inch x 7.6-inch x 15.4-inch) whereas Revel Performa3 F206 has external dimensions of 1058.0 x 254.0 x 353.0mm ( 41-5/8 x 10 x 13-7/8inch) .
Revel Performa3 F206 is 80mm shorter and 38mm less deeper than B&W 702 S3 but it is also 62mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the B&W 702 S3 is approximately 750.7cm2 / 116.4inch2 and base area of the Revel Performa3 F206 is approximately 896.6cm2 / 139.0inch2. The 702 S3 requires 16% less surface area than the Performa3 F206 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The B&W 702 S3 weighs 33.46kg / 73.6lbs and the Revel Performa3 F206 weighs 26.41kg / 58.1lbs. This makes the 702 S3 27% heavier than the Performa3 F206.
Here is a comparison of how 702 S3 and Performa3 F206's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of B&W 702 S3?
Here are the items that are included inside the box of 702 S3:
Floorstanding loudspeakerGrillePlinth (base)2 Jumper-straps (pre-installed)Two-piece foam port plug4 Rubber feet4 Spike feet4 Lock-nuts4 Screws4 Washers4 Lock washersHex-keyManualBowers & Wilkins brochureWarranty Information
What's in the Box of Revel Performa3 F206?
Here are the items that come with the Performa3 F206:
Floorstanding loudspeakerGrille4 Spike feet4 Locking rings4 WashersFoam port plugOwners Manual
 Max Input Power |
300 watts
vs
200 watts
|
Handle more power from your amplifier |
 Number of Woofers |
3
vs
2
|
More woofers |
 High Frequency Response |
28k Hz
vs
20k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Base Surface Area |
750cm2
vs
896cm2
|
Takes less floor space |
|
Low Frequency Response |
42 Hz
vs
46 Hz
|
Generates deeper bass |
 Height |
1058mm
vs
1138mm
|
Easier to fit in smaller spaces |
 Price per pair* |
3850USD
vs
6998USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Bowers & Wilkins 702 S3 |
Revel Performa3 F206 |
| Brand |
Bowers Wilkins |
Revel |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
30-300 watts |
50-200 watts |
| Sensitivity |
90 dB |
88 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.1 ohms |
n/a |
| Frequency Response |
46-28k Hz |
42Hz- 20kHz |
Drivers |
|
|
| Woofer Quantity |
3 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Aerofoil |
Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
n/a |
Hard-Dome with Acoustic Lens Waveguide |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
6" |
5.25" |
| Crossover Frequency |
n/a |
275Hz and 2150Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
1138.0mm (44.8") |
1058.0mm (41.7") |
| Width |
192.0mm (7.6") |
254.0mm (10") |
| Depth |
391.0mm (15.4") |
353.0mm (13.9") |
| Weight |
33.46kg (73.6lbs) |
26.41kg (58.1lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Lacquer |
Wood/Lacquer |
| Available Colors |
Gloss Black,Satin White,Mocha,Rosenut |
Gloss Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
