In this review, we will be comparing PC-2000 Pro and PC-4000, two Powered Subwoofer speakers by SVS. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of SVS PC-2000 Pro and SVS PC-4000 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both SVS PC-2000 Proand SVS PC-4000 have a single woofer setup however the SVS PC-2000 Pro's woofer is 12-inch whereas the SVS PC-4000 features a 13.5-inch woofer.
Frequency Response
PC-2000 Pro has a frequency range of 16-290 Hz whereas PC-4000 has a frequency range of 17-200 Hz. With a minimum frequency of 16Hz, the PC-2000 Pro can go slightly deeper then the PC-4000's min frequency of 17Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
Both SVS PC-2000 Pro and SVS PC-4000 have Bass Reflex type cabinets. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare SVS PC-2000 Pro's and SVS PC-4000's external dimensions. SVS PC-2000 Pro has external dimensions of 872.0 x 423.0 x 459.0mm (34-5/16 x 16-5/8 x 18-1/16inch) whereas SVS PC-4000 has external dimensions of 1194.0 x 423.0 x 423.0mm (47 x 16-5/8 x 16-5/8inch).

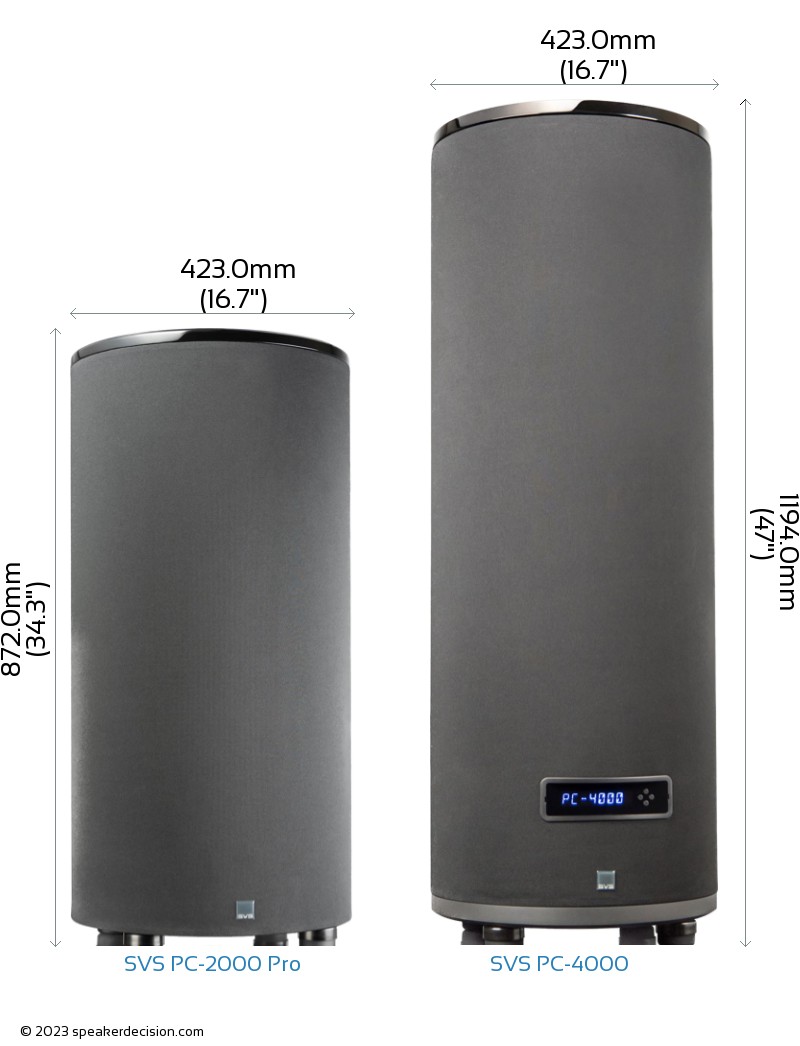

Below you can see the front view size comparison of SVS PC-2000 Pro and SVS PC-4000 in scale.
Comparison image of SVS PC-2000 Pro and SVS PC-4000 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the SVS PC-2000 Pro is approximately 1941.6cm2 / 300.9inch2 and base area of the SVS PC-4000 is approximately 1789.3cm2 / 277.3inch2. The PC-2000 Pro requires 9% more surface area than the PC-4000 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The SVS PC-2000 Pro weighs 21.55kg / 47.4lbs and the SVS PC-4000 weighs 42.00kg / 92.4lbs. This makes the PC-4000 95% heavier than the PC-2000 Pro.
Here is a comparison of how PC-2000 Pro and PC-4000's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of SVS PC-2000 Pro?
Here are the items that are included inside the box of PC-2000 Pro:
- Powered subwoofer
- 8-feet AC power cord
- Quick Start Guide
- Safety Instructions
- SVS brochure
What's in the Box of SVS PC-4000?
Here are the items that come with the PC-4000:
- Powered subwoofer
- Top-cap w/ integrated grille
- 6-feet AC power cord
- Remote control
- 4 Elastomer feet
- Owners Manual
- Important Safety Instructions
 Low Frequency Response |
16 Hz
vs
17 Hz
|
Generates deeper bass |
 High Frequency Response |
290 Hz
vs
200 Hz
|
Generates higher frequency |
 Height |
872mm
vs
1194mm
|
Easier to fit in smaller spaces |
 Price per pair* |
1100USD
vs
2200USD
|
costs less (*prices may change depending on the seller, location and time) |
| Woofer Size |
13.5 inches
vs
12 inches
|
Larger woofer |
 Base Surface Area |
1789cm2
vs
1941cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
SVS PC-2000 Pro needs about 9% more floor area. SVS PC-2000 Pro stands 36mm further into the room. SVS PC-4000 is 322mm taller.
| General |
SVS PC-2000 Pro |
SVS PC-4000 |
| Brand |
SVS |
SVS |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
550 watts |
1200 watts |
| Frequency Response |
16-290 Hz |
17-200 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
550-watt RMS |
1200-watt RMS |
| Watts Peak (Max) |
1500-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
13.5" |
| Woofer Composition |
Aluminum |
Composite/Glass Fiber |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
bottom |
Physical Specs |
|
|
| Height |
872.0mm (34.3") |
1194.0mm (47") |
| Width |
423.0mm (16.7") |
423.0mm (16.7") |
| Depth |
459.0mm (18.1") |
423.0mm (16.7") |
| Weight |
21.55kg (47.4lbs) |
42.00kg (92.4lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
Siblings in SVS's PC range - same design thinking, different size. It comes down to your room and your budget.
| Area | Better | Why |
|---|
| Bass depth | evenly matched | Effectively the same reach (16Hz vs 17Hz). |
| Amplifier power | B | SVS PC-4000 has the bigger amplifier - 1200W against 550W RMS, about 3.4dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | B | SVS PC-4000 moves more air: 13.5" against 12" is 1.27x the cone area, not the 1.13x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Setup and tuning | evenly matched | The same tuning tools on both (app control). |
| Driver placement | depends | SVS PC-2000 Pro fires front and SVS PC-4000 fires down. A down-firing driver is more forgiving of a grille-less look and of a hard floor; a front-firing one is the safer choice on a thick carpet or a suspended timber floor. |
| Cabinet size | depends | SVS PC-2000 Pro is about 21% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | SVS PC-2000 Pro costs less - $1,100 against $2,200, about 50% less. |
A SVS PC-2000 Pro B SVS PC-4000
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: SVS PC-4000 measures better, SVS PC-2000 Pro costs about 50% less. In a normal room, placement will make a bigger difference than the gap between these two. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $1,100 each, two SVS PC-2000 Pro cost about $2,200 against $2,200 for one of the other, which is worth a thought.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
