In this review, we will be comparing PB-1000 Pro and B1, two Powered Subwoofer speakers from SVS and Revel. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of SVS PB-1000 Pro and Revel B1 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.SVS PB-1000 Proand Revel B1 have the same driver set up: Both subwoofers have 1 x 12" drivers.
Frequency Response
PB-1000 Pro has a frequency range of 17-260 Hz whereas B1 has a frequency range of 36-150 Hz. With a minimum frequency of 17Hz, the PB-1000 Pro can go significantly deeper on the low side and provide stronger bass compared to the B1's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
Both SVS PB-1000 Pro and Revel B1 have Bass Reflex type cabinets. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare SVS PB-1000 Pro's and Revel B1's external dimensions. SVS PB-1000 Pro has external dimensions of 479.0 x 380.0 x 509.0mm (18-13/16inch x 15inch x 20-15/16inch) whereas Revel B1 has external dimensions of 451.0 x 402.0 x 391.0mm (17-3/4 x 15-13/16 x 15-3/8inch).
Revel B1 is 28mm shorter and 118mm less deeper than SVS PB-1000 Pro but it is also 22mm wider.

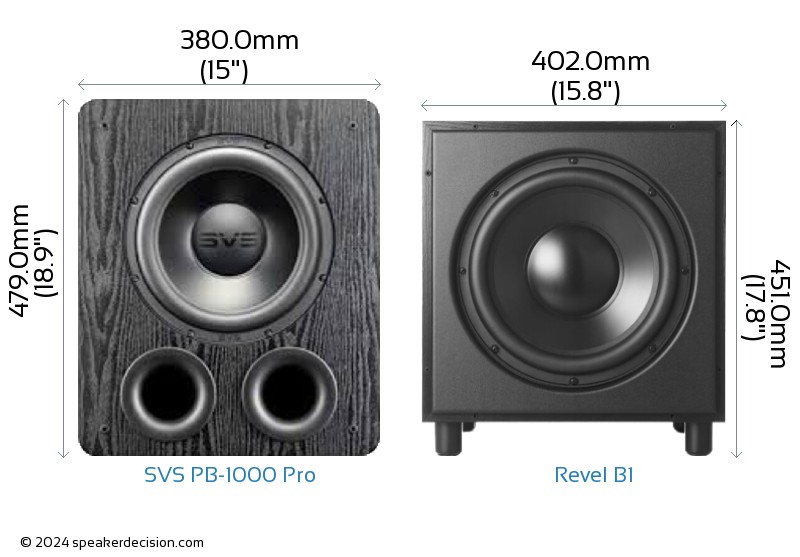

Below you can see the front view size comparison of SVS PB-1000 Pro and Revel B1 in scale.
Comparison image of SVS PB-1000 Pro and Revel B1 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the SVS PB-1000 Pro is approximately 1934.2cm2 / 299.8inch2 and base area of the Revel B1 is approximately 1571.8cm2 / 243.6inch2. The PB-1000 Pro requires 23% more surface area than the B1 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The SVS PB-1000 Pro weighs 19.30kg / 42.5lbs and the Revel B1 weighs 23.18kg / 51lbs. This makes the B1 20% heavier than the PB-1000 Pro.
Here is a comparison of how PB-1000 Pro and B1's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of SVS PB-1000 Pro?
Here are the items that are included inside the box of PB-1000 Pro:
- Powered subwoofer
- Grille
- 6-feet AC power cord
- Quick Start Guide
- Brochure
- SVS Support Information
What's in the Box of Revel B1?
Here are the items that come with the B1:
- Powered subwoofer
- 6-feet AC power cord
- Grille
- 16-feet Mono-RCA cable
- Owners Manual
 Low Frequency Response |
17 Hz
vs
36 Hz
|
Generates deeper bass |
 High Frequency Response |
260 Hz
vs
150 Hz
|
Generates higher frequency |
 App-Based Control |
iOS,Android
vs
None
|
Control the speaker via an app |
 Price per pair* |
799USD
vs
999USD
|
costs less (*prices may change depending on the seller, location and time) |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
 Height |
451mm
vs
479mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1571cm2
vs
1934cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
SVS PB-1000 Pro needs about 23% more floor area. SVS PB-1000 Pro stands 118mm further into the room. SVS PB-1000 Pro is 28mm taller.
| General |
SVS PB-1000 Pro |
Revel B1 |
| Brand |
SVS |
Revel |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
325 watts |
250 watts |
| Frequency Response |
17-260 Hz |
36-150 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
325-watt RMS |
250-watt RMS |
| Watts Peak (Max) |
820-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
12" |
| Woofer Composition |
Fiber-composite |
Micro Ceramic Composite |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
479.0mm (18.9") |
451.0mm (17.8") |
| Width |
380.0mm (15") |
402.0mm (15.8") |
| Depth |
509.0mm (20") |
391.0mm (15.4") |
| Weight |
19.30kg (42.5lbs) |
23.18kg (51lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Available Colors |
Black |
n/a |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
No single best subwoofer here. Your room, where the box can physically go, and whether this is mainly for films or mainly for music will settle it long before the specs do.
| Area | Better | Why |
|---|
| Bass depth | A | SVS PB-1000 Pro goes deeper - 17Hz against 36Hz. Under 20Hz is felt more than heard - the bottom of a pipe organ and the bottom of a film mix. |
| Amplifier power | A | SVS PB-1000 Pro has the bigger amplifier - 325W against 250W RMS, about 1.1dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | evenly matched | Near-identical radiating area (12" against 12"). |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Speaker-level inputs | A | SVS PB-1000 Pro takes a speaker-level connection as well as line level. That is what lets it work with an integrated amplifier or a vintage receiver that has no subwoofer output at all. |
| Wireless option | depends | Only SVS PB-1000 Pro offers a wireless link (as a paid option). It decides where the sub can go if you cannot run a cable, and is worth nothing if you can. |
| Cabinet size | depends | Revel B1 is about 23% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | SVS PB-1000 Pro costs less - $799 against $999, about 20% less. |
A SVS PB-1000 Pro B Revel B1
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
SVS PB-1000 Pro is the easier recommendation: it leads on most of the measured areas and costs less. Take Revel B1 if one of the "depends" rows describes your room. Check your amplifier first: if it has no subwoofer or preamp output, SVS PB-1000 Pro is the only one of these two you can connect at all.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
