In this review, we will be comparing B1 and SuperCube 4000, two Powered Subwoofer speakers from Revel and Definitive Technology. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Revel B1 and DT SuperCube 4000 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both Revel B1and DT SuperCube 4000 have a single woofer setup however the Revel B1's woofer is 12-inch whereas the DT SuperCube 4000 features a 8-inch woofer.
Frequency Response
B1 has a frequency range of 36-150 Hz whereas SuperCube 4000 has a frequency range of 16-200 Hz. With a minimum frequency of 16Hz, the SuperCube 4000 can go significantly deeper on the low side and provide stronger bass compared to the B1's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Revel B1 has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the DT SuperCube 4000 have Passive Radiator type enclosure. Passive Radiator type subwoofers sports a non-powered cone that moves in response to the main woofer to move air out in order to generate stronger bass in a smaller body compared to ported or sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel B1's and DT SuperCube 4000's external dimensions. Revel B1 has external dimensions of 451.0 x 402.0 x 391.0mm (17-3/4 x 15-13/16 x 15-3/8inch) whereas DT SuperCube 4000 has external dimensions of 302.0 x 281.0 x 318.0mm (11-7/8 x 11-1/16 x 12-1/2inch).
Revel B1 is clearly the larger of the two speakers. Its body is 121mm wider, 149mm taller and 73mm deeper than DT SuperCube 4000.

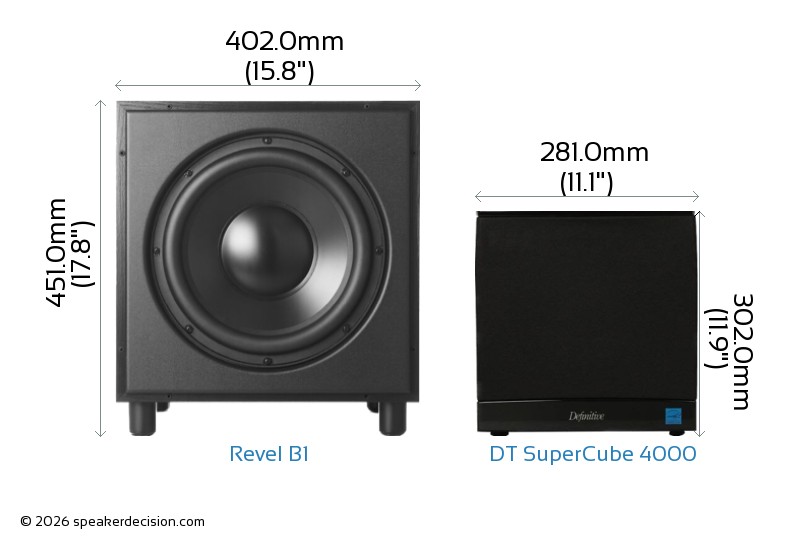

Below you can see the front view size comparison of Revel B1 and DT SuperCube 4000 in scale.
Comparison image of Revel B1 and DT SuperCube 4000 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel B1 is approximately 1571.8cm2 / 243.6inch2 and base area of the DT SuperCube 4000 is approximately 893.6cm2 / 138.5inch2. The B1 requires 76% more surface area than the SuperCube 4000 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Revel B1 weighs 23.18kg / 51lbs and the DT SuperCube 4000 weighs 11.36kg / 25lbs. This makes the B1 104% heavier than the SuperCube 4000.
Here is a comparison of how B1 and SuperCube 4000's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Revel B1?
Here are the items that are included inside the box of B1:
- Powered subwoofer
- 6-feet AC power cord
- Grille
- 16-feet Mono-RCA cable
- Owners Manual
What's in the Box of DT SuperCube 4000?
Here are the items that come with the SuperCube 4000:
- 8-inch Powered subwoofer
- 7-feet AC power cord
- Remote control (CR2025 battery installed)
- 4 Threaded rubber-feet
- 4 Spike feet (hex-nut attached)
- Owners Manual
- SC4000 Booklet
 Woofer Size |
12 inches
vs
8 inches
|
Larger woofer |
| Low Frequency Response |
16 Hz
vs
36 Hz
|
Generates deeper bass |
 High Frequency Response |
200 Hz
vs
150 Hz
|
Generates higher frequency |
 Height |
302mm
vs
451mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
893cm2
vs
1571cm2
|
Takes less floor space |
 Price per pair* |
799USD
vs
999USD
|
costs less (*prices may change depending on the seller, location and time) |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Revel B1 needs about 76% more floor area. Revel B1 stands 73mm further into the room. Revel B1 is 149mm taller.
| General |
Revel B1 |
Definitive Technology SuperCube 4000 |
| Brand |
Revel |
Definitive Technology |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
250 watts |
1200 watts |
| Frequency Response |
36-150 Hz |
16-200 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
250-watt RMS |
1200-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
8" |
| Woofer Composition |
Micro Ceramic Composite |
|
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
40-150 Hz and 40-150 Hz |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
451.0mm (17.8") |
302.0mm (11.9") |
| Width |
402.0mm (15.8") |
281.0mm (11.1") |
| Depth |
391.0mm (15.4") |
318.0mm (12.5") |
| Weight |
23.18kg (51lbs) |
11.36kg (25lbs) |
| Enclosure |
Bass Reflex |
Passive Radiator |
| Grille |
Yes |
n/a |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
5 Years |
3 Years |
| Labor Warranty |
5 Years |
3 Years |
A ported subwoofer against a passive radiator one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | B | DT SuperCube 4000 goes deeper - 16Hz against 36Hz. Under 20Hz is felt more than heard - the bottom of a pipe organ and the bottom of a film mix. |
| Amplifier power | B | DT SuperCube 4000 has the bigger amplifier - 1200W against 250W RMS, about 6.8dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | A | Revel B1 moves more air: 12" against 8" is 2.25x the cone area, not the 1.5x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | depends | Revel B1 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning; DT SuperCube 4000 is passive radiator - a passive radiator behaves like a port without the pipe noise, and suits a slim cabinet. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Speaker-level inputs | B | DT SuperCube 4000 takes a speaker-level connection as well as line level. That is what lets it work with an integrated amplifier or a vintage receiver that has no subwoofer output at all. |
| Cabinet size | depends | DT SuperCube 4000 is about 62% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Warranty | A | Revel B1 carries 5 years on parts against 3 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line. |
| Price | B | DT SuperCube 4000 costs less - $799 against $999, about 20% less. |
A Revel B1 B DT SuperCube 4000
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
DT SuperCube 4000 has the edge on paper, though not by much. The "depends" rows are more likely to decide this than the score is. Check your amplifier first: if it has no subwoofer or preamp output, DT SuperCube 4000 is the only one of these two you can connect at all. If placement is the constraint - a corner, behind a sofa, under a desk - DT SuperCube 4000 is the one that will actually go there, and a well-placed small subwoofer beats a badly-placed big one every time.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
