In this review, we will be comparing SubSeries 450 and SPL-120, two Powered Subwoofer speakers from PSB and Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of PSB SubSeries 450 and Klipsch SPL-120 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.PSB SubSeries 450and Klipsch SPL-120 have the same driver set up: Both subwoofers have 1 x 12" drivers.
Frequency Response
SubSeries 450 has a frequency range of 20-150 Hz whereas SPL-120 has a frequency range of 24-125 Hz. With a minimum frequency of 20Hz, the SubSeries 450 can go slightly deeper then the SPL-120's min frequency of 24Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The PSB SubSeries 450 has a Passive Radiator type cabinet. Passive Radiator type subwoofers sports a non-powered cone that moves in response to the main woofer to move air out in order to generate stronger bass in a smaller body compared to ported or sealed designs. On the other hand the Klipsch SPL-120 have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB SubSeries 450's and Klipsch SPL-120's external dimensions. PSB SubSeries 450 has external dimensions of 401.0 x 413.0 x 453.0mm (15-3/4 x 16-1/4 x 17-13/16inch) whereas Klipsch SPL-120 has external dimensions of 450.0 x 375.0 x 540.0mm (17-11/16 x 14-3/4 x 21-1/4inch).
PSB SubSeries 450 is 49mm shorter and 87mm less deeper than Klipsch SPL-120 but it is also 38mm wider.

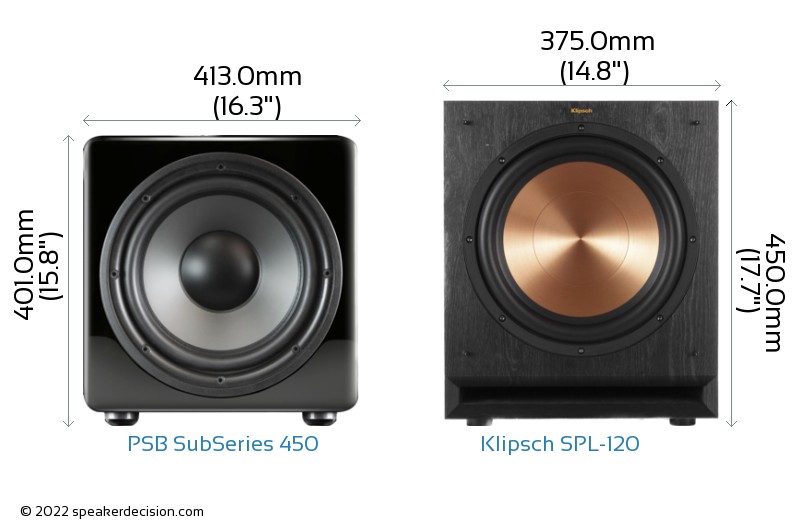

Below you can see the front view size comparison of PSB SubSeries 450 and Klipsch SPL-120 in scale.
Comparison image of PSB SubSeries 450 and Klipsch SPL-120 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB SubSeries 450 is approximately 1870.9cm2 / 290.0inch2 and base area of the Klipsch SPL-120 is approximately 2025.0cm2 / 313.9inch2. The SubSeries 450 requires 8% less surface area than the SPL-120 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The PSB SubSeries 450 weighs 20.45kg / 45lbs and the Klipsch SPL-120 weighs 20.45kg / 45lbs.
Here is a comparison of how SubSeries 450 and SPL-120's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of PSB SubSeries 450?
Here are the items that are included inside the box of SubSeries 450:
- Powered subwoofer
- Detachable grille
- 8-feet Power cord
- Owners Guide (En/Fr/Sp)
- Specifications sheet
- Warranty Card
What's in the Box of Klipsch SPL-120?
Here are the items that come with the SPL-120:
- Powered sub
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Low Frequency Response |
20 Hz
vs
24 Hz
|
Generates deeper bass |
 High Frequency Response |
150 Hz
vs
125 Hz
|
Generates higher frequency |
 Height |
401mm
vs
450mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1870cm2
vs
2025cm2
|
Takes less floor space |
 Price per pair* |
499USD
vs
1999USD
|
costs less (*prices may change depending on the seller, location and time) |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch SPL-120 needs about 8% more floor area. Klipsch SPL-120 stands 87mm further into the room. Klipsch SPL-120 is 49mm taller.
| General |
PSB SubSeries 450 |
Klipsch SPL-120 |
| Brand |
PSB |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
400 watts |
300 watts |
| Frequency Response |
20-150 Hz |
24-125 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
400-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
n/a |
600-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
12" |
| Woofer Composition |
Polypropylene |
Cerametallic |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
401.0mm (15.8") |
450.0mm (17.7") |
| Width |
413.0mm (16.3") |
375.0mm (14.8") |
| Depth |
453.0mm (17.8") |
540.0mm (21.3") |
| Weight |
20.45kg (45lbs) |
20.45kg (45lbs) |
| Enclosure |
Passive Radiator |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
1 Year |
2 Years |
| Labor Warranty |
1 Year |
2 Years |
A passive radiator subwoofer against a ported one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | A | PSB SubSeries 450 goes deeper - 20Hz against 24Hz. Under 20Hz is felt more than heard - the bottom of a pipe organ and the bottom of a film mix. |
| Amplifier power | A | PSB SubSeries 450 has the bigger amplifier - 400W against 300W RMS, about 1.2dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | evenly matched | Near-identical radiating area (12" against 12"). |
| Enclosure | depends | PSB SubSeries 450 is passive radiator - a passive radiator behaves like a port without the pipe noise, and suits a slim cabinet; Klipsch SPL-120 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Speaker-level inputs | A | PSB SubSeries 450 takes a speaker-level connection as well as line level. That is what lets it work with an integrated amplifier or a vintage receiver that has no subwoofer output at all. |
| Wireless option | depends | Only Klipsch SPL-120 offers a wireless link (as a paid option). It decides where the sub can go if you cannot run a cable, and is worth nothing if you can. |
| Cabinet size | depends | PSB SubSeries 450 is about 18% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Warranty | B | Klipsch SPL-120 carries 2 years on parts against 1 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line. |
| Price | B | Klipsch SPL-120 costs less - $499 against $1,999, about 75% less. |
A PSB SubSeries 450 B Klipsch SPL-120
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: PSB SubSeries 450 measures better, Klipsch SPL-120 costs about 75% less. In a normal room, placement will make a bigger difference than the gap between these two. Check your amplifier first: if it has no subwoofer or preamp output, PSB SubSeries 450 is the only one of these two you can connect at all. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $499 each, two Klipsch SPL-120 cost about $998 against $1,999 for one of the other, which is worth a thought.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
