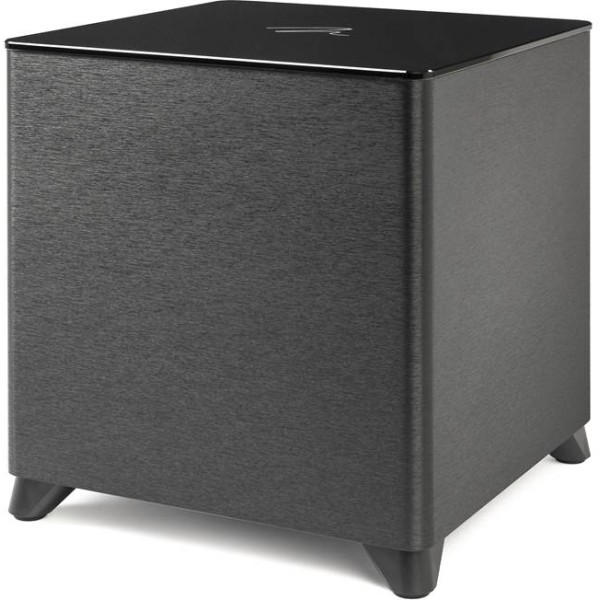

In this review, we will be comparing Dynamo Foundation 10 and R-101SW, two Powered Subwoofer speakers from MartinLogan and Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of MartinLogan Dynamo Foundation 10 and Klipsch R-101SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.MartinLogan Dynamo Foundation 10and Klipsch R-101SW have the same driver set up: Both subwoofers have 1 x 10" drivers.
Frequency Response
Dynamo Foundation 10 has a frequency range of 25-200 Hz whereas R-101SW has a frequency range of 29.5-160 Hz. With a minimum frequency of 25Hz, the Dynamo Foundation 10 can go significantly deeper on the low side and provide stronger bass compared to the R-101SW's min frequency of 30Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
MartinLogan Dynamo Foundation 10
High Frequency
Subwoofer Speakers
MartinLogan Dynamo Foundation 10
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Dynamo Foundation 10's and Klipsch R-101SW's external dimensions. MartinLogan Dynamo Foundation 10 has external dimensions of 328.6 x 314.3 x 369.9mm () whereas Klipsch R-101SW has external dimensions of 370.0 x 358.0 x 529.0mm (14-9/16inch x 14-1/16inch x 20-13/16inch).
Klipsch R-101SW is clearly the larger of the two speakers. Its body is 43.7mm wider, 41.4mm taller and 159.1mm deeper than MartinLogan Dynamo Foundation 10.
Size, drawn to scale
Both speakers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same surface and pushed back to the same wall, so the deeper one visibly sticks out further.
Klipsch R-101SW needs about 63% more floor or shelf area. Klipsch R-101SW is 159mm deeper, so it stands that much further out from the wall. Klipsch R-101SW is 41mm taller.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Dynamo Foundation 10 is approximately 1162.6cm2 / 180.2inch2 and base area of the Klipsch R-101SW is approximately 1893.8cm2 / 293.5inch2. The Dynamo Foundation 10 requires 39% less surface area than the R-101SW which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The MartinLogan Dynamo Foundation 10 weighs 10.80kg / 23.8lbs and the Klipsch R-101SW weighs 13.91kg / 30.6lbs. This makes the R-101SW 29% heavier than the Dynamo Foundation 10.
Here is a comparison of how Dynamo Foundation 10 and R-101SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
MartinLogan Dynamo Foundation 10
 Low Frequency Response |
25 Hz
vs
30 Hz
|
Generates deeper bass |
 High Frequency Response |
200 Hz
vs
160 Hz
|
Generates higher frequency |
 Height |
328mm
vs
370mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1162cm2
vs
1893cm2
|
Takes less floor space |
 Price per pair* |
499USD
vs
600USD
|
costs less (*prices may change depending on the seller, location and time) |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch R-101SW needs about 63% more floor area. Klipsch R-101SW stands 159mm further into the room. Klipsch R-101SW is 41mm taller.
| General |
MartinLogan Dynamo Foundation 10 |
Klipsch Reference R-101SW |
| Brand |
MartinLogan |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Frequency Response |
25-200 Hz |
29.5-160 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
200-watt RMS |
150-watt RMS |
| Watts Peak (Max) |
400-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
10" |
10" |
| Woofer Composition |
|
Spun-Copper TCP |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
n/a |
front |
Physical Specs |
|
|
| Height |
328.6mm (12.9") |
370.0mm (14.6") |
| Width |
314.3mm (12.4") |
358.0mm (14.1") |
| Depth |
369.9mm (14.6") |
529.0mm (20.8") |
| Weight |
10.80kg (23.8lbs) |
13.91kg (30.6lbs) |
| Enclosure |
|
Bass Reflex |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
3 Yrs w/ Registration |
2 Years |
| Labor Warranty |
3 Yrs w/ Registration |
2 Years |
A sealed subwoofer against a ported one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | A | MartinLogan Dynamo Foundation 10 goes deeper - 25Hz against 30Hz. That gap covers the lowest notes of a five-string bass and a concert bass drum. |
| Amplifier power | A | MartinLogan Dynamo Foundation 10 has the bigger amplifier - 200W against 150W RMS, about 1.2dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | evenly matched | Near-identical radiating area (10" against 10"). |
| Enclosure | depends | MartinLogan Dynamo Foundation 10 is sealed - a sealed box rolls off gently and is usually the easier one to integrate in a small or awkward room; Klipsch R-101SW is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Cabinet size | depends | MartinLogan Dynamo Foundation 10 is about 45% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Warranty | A | MartinLogan Dynamo Foundation 10 carries 3 years on parts against 2 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line. |
| Price | B | Klipsch R-101SW costs less - $499 against $600, about 17% less. |
A MartinLogan Dynamo Foundation 10 B Klipsch R-101SW
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
MartinLogan Dynamo Foundation 10 leads across most of the measured areas for a modest premium, so it is the easier pick if the budget stretches. Klipsch R-101SW is the one to take if it does not. Films or music? If this is mainly a home cinema, Klipsch R-101SW will hit harder for the money; if it is mainly for music in a normal-sized room, MartinLogan Dynamo Foundation 10 is usually the easier one to make sound right. If placement is the constraint - a corner, behind a sofa, under a desk - MartinLogan Dynamo Foundation 10 is the one that will actually go there, and a well-placed small subwoofer beats a badly-placed big one every time.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
