In this review, we will be comparing SPL-120 and R-120SW, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch SPL-120 and Klipsch R-120SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Klipsch SPL-120and Klipsch R-120SW have the same driver set up: Both subwoofers have 1 x 12" drivers.
Frequency Response
SPL-120 has a frequency range of 24-125 Hz whereas R-120SW has a frequency range of 29-120 Hz. With a minimum frequency of 24Hz, the SPL-120 can go significantly deeper on the low side and provide stronger bass compared to the R-120SW's min frequency of 29Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch SPL-120 has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the Klipsch R-120SW have Bass reflex type enclosure.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch SPL-120's and Klipsch R-120SW's external dimensions. Klipsch SPL-120 has external dimensions of 450.0 x 375.0 x 540.0mm (17-11/16 x 14-3/4 x 21-1/4inch) whereas Klipsch R-120SW has external dimensions of 423.0 x 358.0 x 532.0mm (16-5/8 x 14-1/16 x 20-15/16inch).
Klipsch SPL-120 is clearly the larger of the two speakers. Its body is 17mm wider, 27mm taller and 8mm deeper than Klipsch R-120SW.

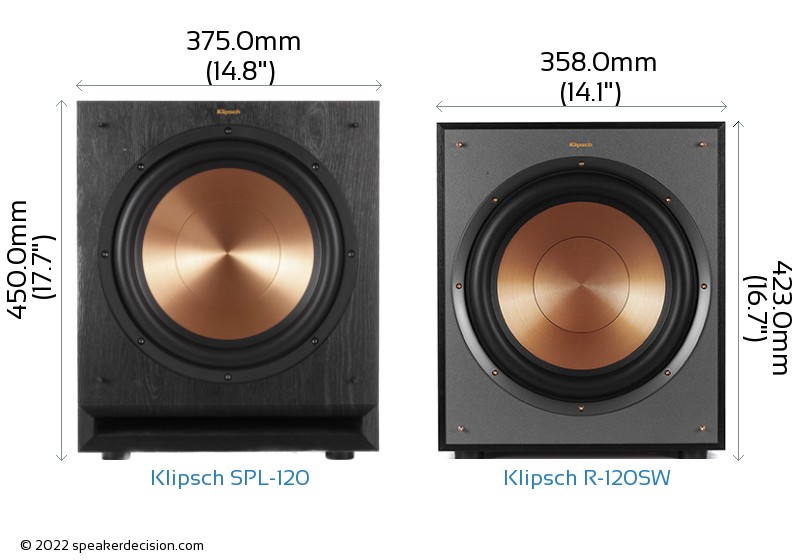

Below you can see the front view size comparison of Klipsch SPL-120 and Klipsch R-120SW in scale.
Comparison image of Klipsch SPL-120 and Klipsch R-120SW Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch SPL-120 is approximately 2025.0cm2 / 313.9inch2 and base area of the Klipsch R-120SW is approximately 1904.6cm2 / 295.2inch2. The SPL-120 requires 6% more surface area than the R-120SW which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch SPL-120 weighs 20.45kg / 45lbs and the Klipsch R-120SW weighs 14.09kg / 31lbs. This makes the SPL-120 45% heavier than the R-120SW.
Here is a comparison of how SPL-120 and R-120SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch SPL-120?
Here are the items that are included inside the box of SPL-120:
- Powered sub
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-120SW?
Here are the items that come with the R-120SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Low Frequency Response |
24 Hz
vs
29 Hz
|
Generates deeper bass |
 High Frequency Response |
125 Hz
vs
120 Hz
|
Generates higher frequency |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Price per pair* |
499USD
vs
599USD
|
costs less (*prices may change depending on the seller, location and time) |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
 Height |
423mm
vs
450mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1904cm2
vs
2025cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Near-identical footprints. Klipsch SPL-120 is 27mm taller.
| General |
Klipsch SPL-120 |
Klipsch R-120SW |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
300 watts |
200 watts |
| Frequency Response |
24-125 Hz |
29-120 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
300-watt RMS |
200-watt RMS |
| Watts Peak (Max) |
600-watt RMS |
400-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
12" |
| Woofer Composition |
Cerametallic |
Copper-spun IMG |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
rear |
Physical Specs |
|
|
| Height |
450.0mm (17.7") |
423.0mm (16.7") |
| Width |
375.0mm (14.8") |
358.0mm (14.1") |
| Depth |
540.0mm (21.3") |
532.0mm (20.9") |
| Weight |
20.45kg (45lbs) |
14.09kg (31lbs) |
| Enclosure |
Bass Reflex |
Bass reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
Both are Klipsch, so the design approach is shared and the differences are mostly in output, size and price.
| Area | Better | Why |
|---|
| Bass depth | A | Klipsch SPL-120 goes deeper - 24Hz against 29Hz. A real difference, though most music has little content below 29Hz. |
| Amplifier power | A | Klipsch SPL-120 has the bigger amplifier - 300W against 200W RMS, about 1.8dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | evenly matched | Near-identical radiating area (12" against 12"). |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Wireless option | depends | Only Klipsch SPL-120 offers a wireless link (as a paid option). It decides where the sub can go if you cannot run a cable, and is worth nothing if you can. |
| Price | A | Klipsch SPL-120 costs less - $499 against $599, about 17% less. |
A Klipsch SPL-120 B Klipsch R-120SW
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch SPL-120 is the easier recommendation: it leads on most of the measured areas and costs less. Take Klipsch R-120SW if one of the "depends" rows describes your room.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
