In this review, we will be comparing SPL-120 and KUBE 12b, two Powered Subwoofer speakers from Klipsch and KEF. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch SPL-120 and KEF KUBE 12b first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Klipsch SPL-120and KEF KUBE 12b have the same driver set up: Both subwoofers have 1 x 12" drivers.
Frequency Response
SPL-120 has a frequency range of 24-125 Hz whereas KUBE 12b has a frequency range of 22-140 Hz. With a minimum frequency of 22Hz, the KUBE 12b can go slightly deeper then the SPL-120's min frequency of 24Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch SPL-120 has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the KEF KUBE 12b have Acoustic Suspension type enclosure. Acoustic Suspension aka Sealed type subwoofers have enclosures that are sealed hence no ports or holes exists on the cabinet. Sealed designs helps to provide more accurate and tight bass responses compared to ported designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch SPL-120's and KEF KUBE 12b's external dimensions. Klipsch SPL-120 has external dimensions of 450.0 x 375.0 x 540.0mm (17-11/16 x 14-3/4 x 21-1/4inch) whereas KEF KUBE 12b has external dimensions of 410.0 x 396.0 x 442.0mm (16-1/8 x 15-9/16 x 17-3/8inch).
KEF KUBE 12b is 40mm shorter and 98mm less deeper than Klipsch SPL-120 but it is also 21mm wider.

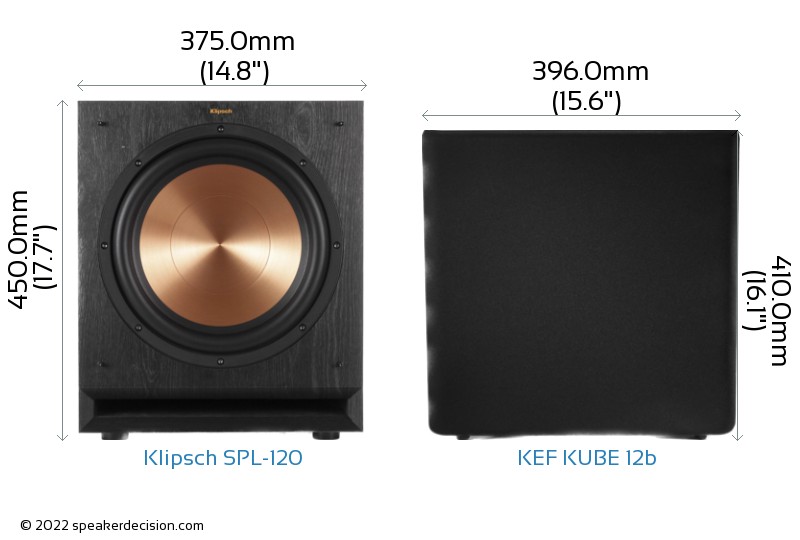

Below you can see the front view size comparison of Klipsch SPL-120 and KEF KUBE 12b in scale.
Comparison image of Klipsch SPL-120 and KEF KUBE 12b Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch SPL-120 is approximately 2025.0cm2 / 313.9inch2 and base area of the KEF KUBE 12b is approximately 1750.3cm2 / 271.3inch2. The SPL-120 requires 16% more surface area than the KUBE 12b which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch SPL-120 weighs 20.45kg / 45lbs and the KEF KUBE 12b weighs 20.68kg / 45.5lbs. This makes the KUBE 12b 1% heavier than the SPL-120.
Here is a comparison of how SPL-120 and KUBE 12b's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch SPL-120?
Here are the items that are included inside the box of SPL-120:
- Powered sub
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of KEF KUBE 12b?
Here are the items that come with the KUBE 12b:
- Powered subwoofer
- 6.5-feet AC power cord
- Speaker-level input block
- User Manual
- Important Safety Information
- Warranty Information
 Price per pair* |
499USD
vs
900USD
|
costs less (*prices may change depending on the seller, location and time) |
 Low Frequency Response |
22 Hz
vs
24 Hz
|
Generates deeper bass |
 High Frequency Response |
140 Hz
vs
125 Hz
|
Generates higher frequency |
 Height |
410mm
vs
450mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1750cm2
vs
2025cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch SPL-120 needs about 16% more floor area. Klipsch SPL-120 stands 98mm further into the room. Klipsch SPL-120 is 40mm taller.
| General |
Klipsch SPL-120 |
KEF KUBE 12b |
| Brand |
Klipsch |
KEF |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
300 watts |
300 watts |
| Frequency Response |
24-125 Hz |
22-140 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
300-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
600-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
12" |
| Woofer Composition |
Cerametallic |
|
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
40-140 Hz |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
450.0mm (17.7") |
410.0mm (16.1") |
| Width |
375.0mm (14.8") |
396.0mm (15.6") |
| Depth |
540.0mm (21.3") |
442.0mm (17.4") |
| Weight |
20.45kg (45lbs) |
20.68kg (45.5lbs) |
| Enclosure |
Bass Reflex |
Acoustic Suspension |
| Grille |
Yes |
n/a |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
A ported subwoofer against a sealed one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | evenly matched | Effectively the same reach (24Hz vs 22Hz). |
| Amplifier power | evenly matched | Much the same amplifier (300W vs 300W RMS) - under 1dB apart. |
| Driver area | evenly matched | Near-identical radiating area (12" against 12"). |
| Enclosure | depends | Klipsch SPL-120 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning; KEF KUBE 12b is sealed - a sealed box rolls off gently and is usually the easier one to integrate in a small or awkward room. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Cabinet size | depends | KEF KUBE 12b is about 21% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | Klipsch SPL-120 costs less - $499 against $900, about 45% less. |
A Klipsch SPL-120 B KEF KUBE 12b
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let your room size and where the box can actually stand settle it. Films or music? If this is mainly a home cinema, Klipsch SPL-120 will hit harder for the money; if it is mainly for music in a normal-sized room, KEF KUBE 12b is usually the easier one to make sound right. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $499 each, two Klipsch SPL-120 cost about $998 against $900 for one of the other, which is worth a thought.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
