In this review, we will be comparing SPL-120 and Minx X301, two Powered Subwoofer speakers from Klipsch and Cambridge Audio. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch SPL-120 and Cambridge Audio Minx X301 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both Klipsch SPL-120and Cambridge Audio Minx X301 have a single woofer setup however the Klipsch SPL-120's woofer is 12-inch whereas the Cambridge Audio Minx X301 features a 8-inch woofer.
Frequency Response
SPL-120 has a frequency range of 24-125 Hz whereas Minx X301 has a frequency range of 31-200 Hz. With a minimum frequency of 24Hz, the SPL-120 can go significantly deeper on the low side and provide stronger bass compared to the Minx X301's min frequency of 31Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
Cambridge Audio Minx X301
High Frequency
Subwoofer Speakers
Cambridge Audio Minx X301
Cabinet Type
The Klipsch SPL-120 has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the Cambridge Audio Minx X301 have Passive Radiator type enclosure. Passive Radiator type subwoofers sports a non-powered cone that moves in response to the main woofer to move air out in order to generate stronger bass in a smaller body compared to ported or sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch SPL-120's and Cambridge Audio Minx X301's external dimensions. Klipsch SPL-120 has external dimensions of 450.0 x 375.0 x 540.0mm (17-11/16 x 14-3/4 x 21-1/4inch) whereas Cambridge Audio Minx X301 has external dimensions of 312.0 x 267.0 x 310.0mm (12-1/4 x 10-1/2 x 12-3/16inch).
Klipsch SPL-120 is clearly the larger of the two speakers. Its body is 108mm wider, 138mm taller and 230mm deeper than Cambridge Audio Minx X301.

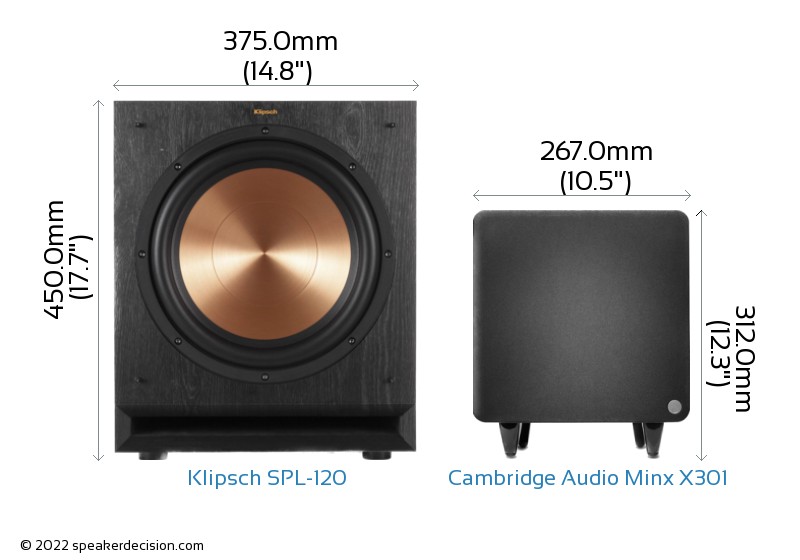

Below you can see the front view size comparison of Klipsch SPL-120 and Cambridge Audio Minx X301 in scale.
Comparison image of Klipsch SPL-120 and Cambridge Audio Minx X301 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch SPL-120 is approximately 2025.0cm2 / 313.9inch2 and base area of the Cambridge Audio Minx X301 is approximately 827.7cm2 / 128.3inch2. The SPL-120 requires 145% more surface area than the Minx X301 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch SPL-120 weighs 20.45kg / 45lbs and the Cambridge Audio Minx X301 weighs 7.50kg / 16.5lbs. This makes the SPL-120 173% heavier than the Minx X301.
Here is a comparison of how SPL-120 and Minx X301's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
Cambridge Audio Minx X301
What's in the Box of Klipsch SPL-120?
Here are the items that are included inside the box of SPL-120:
- Powered sub
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Cambridge Audio Minx X301?
Here are the items that come with the Minx X301:
- Powered subwoofer
- Grille (installed)
- 6-feet AC power cord
- Installation Guide
- Important Safety Instructions
 Woofer Size |
12 inches
vs
8 inches
|
Larger woofer |
| Low Frequency Response |
24 Hz
vs
31 Hz
|
Generates deeper bass |
 Price per pair* |
499USD
vs
549USD
|
costs less (*prices may change depending on the seller, location and time) |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
 High Frequency Response |
200 Hz
vs
125 Hz
|
Generates higher frequency |
 Height |
312mm
vs
450mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
827cm2
vs
2025cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch SPL-120 needs about 145% more floor area. Klipsch SPL-120 stands 230mm further into the room. Klipsch SPL-120 is 138mm taller.
| General |
Klipsch SPL-120 |
Cambridge Audio Minx X301 |
| Brand |
Klipsch |
Cambridge Audio |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
300 watts |
300 watts |
| Frequency Response |
24-125 Hz |
31-200 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
300-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
600-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
8" |
| Woofer Composition |
Cerametallic |
Aluminum |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
450.0mm (17.7") |
312.0mm (12.3") |
| Width |
375.0mm (14.8") |
267.0mm (10.5") |
| Depth |
540.0mm (21.3") |
310.0mm (12.2") |
| Weight |
20.45kg (45lbs) |
7.50kg (16.5lbs) |
| Enclosure |
Bass Reflex |
Passive Radiator |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
3 Years |
| Labor Warranty |
2 Years |
3 Years |
A ported subwoofer against a passive radiator one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | A | Klipsch SPL-120 goes deeper - 24Hz against 31Hz. That gap covers the lowest notes of a five-string bass and a concert bass drum. |
| Amplifier power | evenly matched | Much the same amplifier (300W vs 300W RMS) - under 1dB apart. |
| Driver area | A | Klipsch SPL-120 moves more air: 12" against 8" is 2.25x the cone area, not the 1.5x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | depends | Klipsch SPL-120 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning; Cambridge Audio Minx X301 is passive radiator - a passive radiator behaves like a port without the pipe noise, and suits a slim cabinet. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Wireless option | depends | Only Klipsch SPL-120 offers a wireless link (as a paid option). It decides where the sub can go if you cannot run a cable, and is worth nothing if you can. |
| Cabinet size | depends | Cambridge Audio Minx X301 is about 72% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Warranty | B | Cambridge Audio Minx X301 carries 3 years on parts against 2 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line. |
| Price | A | Klipsch SPL-120 costs less - $499 against $549, about 9% less. |
A Klipsch SPL-120 B Cambridge Audio Minx X301
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch SPL-120 has the edge on paper, though not by much. The "depends" rows are more likely to decide this than the score is. If placement is the constraint - a corner, behind a sofa, under a desk - Cambridge Audio Minx X301 is the one that will actually go there, and a well-placed small subwoofer beats a badly-placed big one every time.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
