In this review, we will be comparing Stratton 10 and ASW608, two Powered Subwoofer speakers from KLH and Bowers Wilkins. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of KLH Stratton 10 and B&W ASW608 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both KLH Stratton 10and B&W ASW608 have a single woofer setup however the KLH Stratton 10's woofer is 10-inch whereas the B&W ASW608 features a 8-inch woofer.
Frequency Response
Stratton 10 has a frequency range of 29-150 Hz whereas ASW608 has a frequency range of 32-140 Hz. With a minimum frequency of 29Hz, the Stratton 10 can go slightly deeper then the ASW608's min frequency of 32Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The KLH Stratton 10 has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the B&W ASW608 have Acoustic Suspension type enclosure. Acoustic Suspension aka Sealed type subwoofers have enclosures that are sealed hence no ports or holes exists on the cabinet. Sealed designs helps to provide more accurate and tight bass responses compared to ported designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Stratton 10's and B&W ASW608's external dimensions. KLH Stratton 10 has external dimensions of 389.0 x 326.0 x 443.0mm (15-5/16inch x 12-13/16inch x 17-7/16inch) whereas B&W ASW608 has external dimensions of 272.0 x 261.0 x 350.0mm (10-11/16 x 10-1/4 x 13-3/4inch).
KLH Stratton 10 is clearly the larger of the two speakers. Its body is 65mm wider, 117mm taller and 93mm deeper than B&W ASW608.

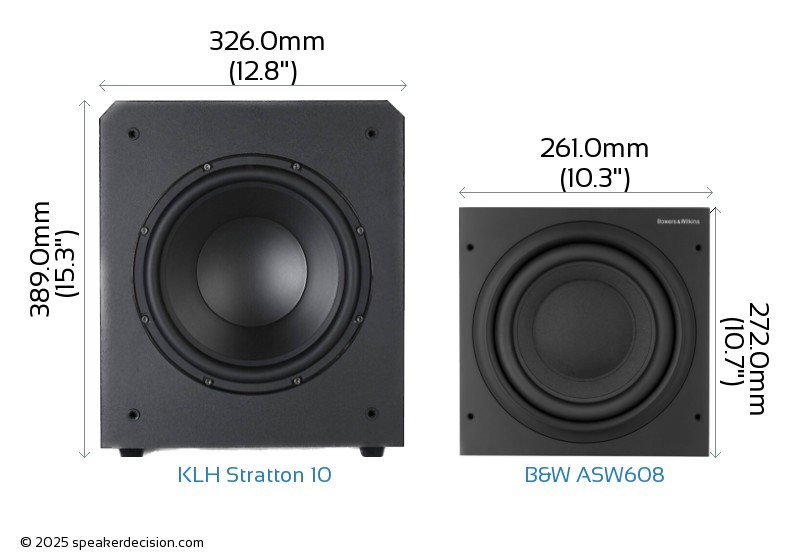

Below you can see the front view size comparison of KLH Stratton 10 and B&W ASW608 in scale.
Comparison image of KLH Stratton 10 and B&W ASW608 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Stratton 10 is approximately 1444.2cm2 / 223.9inch2 and base area of the B&W ASW608 is approximately 913.5cm2 / 141.6inch2. The Stratton 10 requires 58% more surface area than the ASW608 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The KLH Stratton 10 weighs 14.55kg / 32lbs and the B&W ASW608 weighs 8.86kg / 19.5lbs. This makes the Stratton 10 64% heavier than the ASW608.
Here is a comparison of how Stratton 10 and ASW608's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of KLH Stratton 10?
Here are the items that are included inside the box of Stratton 10:
- Powered subwoofer
- 6-feet AC power cord
- Grille
- Manual
What's in the Box of B&W ASW608?
Here are the items that come with the ASW608:
- Powered subwoofer
- Grille
- 6.5-feet AC power cord
- 4 Rubber feet
- 4 Spike feet
- 4 Lock-nuts
- Manual
- Bowers & Wilkins brochure
- Warranty Information
 Woofer Size |
10 inches
vs
8 inches
|
Larger woofer |
| Low Frequency Response |
29 Hz
vs
32 Hz
|
Generates deeper bass |
 High Frequency Response |
150 Hz
vs
140 Hz
|
Generates higher frequency |
 Price per pair* |
449USD
vs
599USD
|
costs less (*prices may change depending on the seller, location and time) |
 Height |
272mm
vs
389mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
913cm2
vs
1444cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
KLH Stratton 10 needs about 58% more floor area. KLH Stratton 10 stands 93mm further into the room. KLH Stratton 10 is 117mm taller.
| General |
KLH Stratton 10 |
Bowers & Wilkins ASW608 |
| Brand |
KLH |
Bowers Wilkins |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
200 watts |
200 watts |
| Frequency Response |
29-150 Hz |
32-140 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
200-watt RMS |
200-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
10" |
8" |
| Woofer Composition |
Paper/Kevlar/Fiberglass |
Paper/Aramid Fiber |
| Woofer Surround Material |
n/a |
Rubber |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
389.0mm (15.3") |
272.0mm (10.7") |
| Width |
326.0mm (12.8") |
261.0mm (10.3") |
| Depth |
443.0mm (17.4") |
350.0mm (13.8") |
| Weight |
14.55kg (32lbs) |
8.86kg (19.5lbs) |
| Enclosure |
Bass Reflex |
Acoustic Suspension |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
A ported subwoofer against a sealed one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | A | KLH Stratton 10 goes deeper - 29Hz against 32Hz. A real difference, though most music has little content below 32Hz. |
| Amplifier power | evenly matched | Much the same amplifier (200W vs 200W RMS) - under 1dB apart. |
| Driver area | A | KLH Stratton 10 moves more air: 10" against 8" is 1.56x the cone area, not the 1.25x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | depends | KLH Stratton 10 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning; B&W ASW608 is sealed - a sealed box rolls off gently and is usually the easier one to integrate in a small or awkward room. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Speaker-level inputs | B | B&W ASW608 takes a speaker-level connection as well as line level. That is what lets it work with an integrated amplifier or a vintage receiver that has no subwoofer output at all. |
| Cabinet size | depends | B&W ASW608 is about 56% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | KLH Stratton 10 costs less - $449 against $599, about 25% less. |
A KLH Stratton 10 B B&W ASW608
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Stratton 10 has the edge on paper, though not by much. The "depends" rows are more likely to decide this than the score is. Films or music? If this is mainly a home cinema, KLH Stratton 10 will hit harder for the money; if it is mainly for music in a normal-sized room, B&W ASW608 is usually the easier one to make sound right. Check your amplifier first: if it has no subwoofer or preamp output, B&W ASW608 is the only one of these two you can connect at all.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
