In this review, we will be comparing Denton 1S and EVO5.2, two Passive Bookshelf speakers by Wharfedale.
Let's have a brief look at the main features
of Wharfedale Denton 1S and Wharfedale EVO5.2 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Denton 1S | Wharfedale EVO5.2 |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Wharfedale
United Kingdom · founded 1932 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1" Soft-Dome | 1.375" AMT (Ribbon) |
|---|
| Midrange | — | 2" |
|---|
| Woofer | 6.5" Polypropylene | 6.5" woven Kevlar |
|---|
| Frequency response | 50-20k Hz | 44-24k Hz |
|---|
| Sensitivity | 88 dB | 88 dB |
|---|
| Impedance | 8 ohms | 4 ohms |
|---|
| Power range | 30-100 watts | 25-120 watts |
|---|
| Weight | 6.81kg / 15lbs | 15.05kg / 33.1lbs |
|---|
| Dimensions (H x W x D) | 13" x 9-5/16" x 10"
331.0 x 237.0 x 254.0mm | 19.6" x 10.2" x 15.4"
497.0 x 260.0 x 391.0mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Denton 1S is a 2-way design whereas the EVO5.2 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Wharfedale Denton 1SWharfedale EVO5.2
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Denton 1S |
Wharfedale EVO5.2 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1.375-inch
|
|
Midrange
|
- |
1 x 2-inch |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
Denton 1S features a 1" Soft-Dome Tweeter and 1 x 6.5" Polypropylene Woofer. On the other hand, the EVO5.2 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter, a 2" Midrange and 1 x 6.5" woven Kevlar Woofer with a Crossover frequency at 800 Hz and 4.3 kHz.
Frequency Response
Denton 1S has a frequency range of 50-20k Hz whereas EVO5.2 has a frequency range of 44-24k Hz. With a minimum frequency of 44Hz, the EVO5.2 can go significantly deeper on the low side and provide stronger bass compared to the Denton 1S's min frequency of 50Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Denton 1S is a 8 ohms speaker compared to the EVO5.2 which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.2 can provide this impedance level.
On the other hand, they have the same sensitivity of 88 dBdB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
EVO5.2 can handle a max power of 120 watts RMS, whereas Denton 1S has a max power handling value of 100 watts RMS, 20 watts less than the EVO5.2.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Denton 1S features Binding post type posts and EVO5.2 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.2's Binding post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Denton 1S's and Wharfedale EVO5.2's external dimensions. Wharfedale Denton 1S has external dimensions of 331.0 x 237.0 x 254.0mm (13inch x 9-5/16inch x 10inch) whereas Wharfedale EVO5.2 has external dimensions of 497.0 x 260.0 x 391.0mm (19.6" × 10.2" × 15.4").
Wharfedale EVO5.2 is clearly the larger of the two speakers. Its body is 23mm wider, 166mm taller and 137mm deeper than Wharfedale Denton 1S.

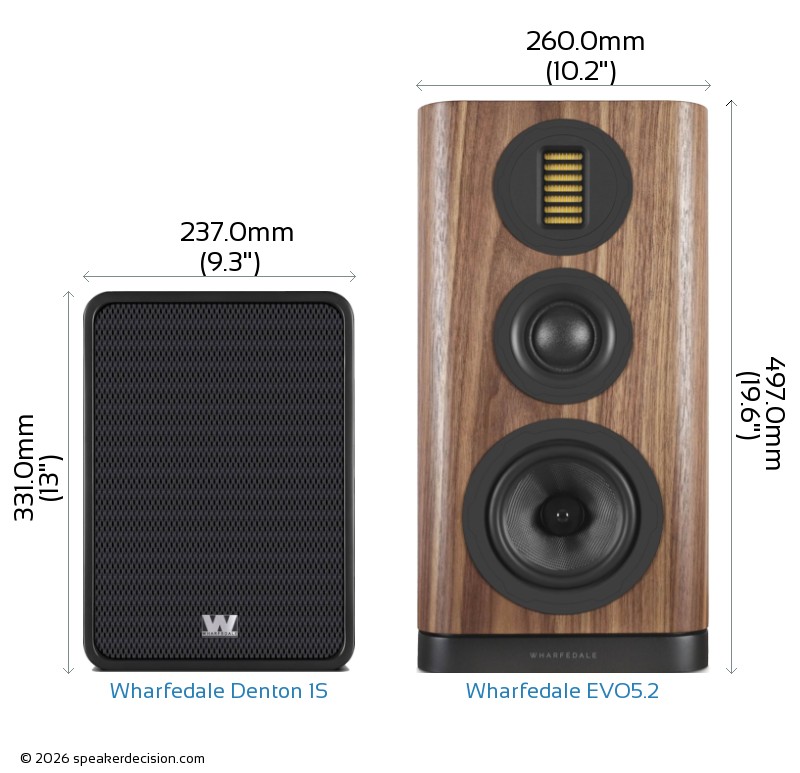

Below you can see the front view size comparison of Wharfedale Denton 1S and Wharfedale EVO5.2 in scale.
Comparison image of Wharfedale Denton 1S and Wharfedale EVO5.2 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Denton 1S is approximately 602.0cm2 / 93.3inch2 and base area of the Wharfedale EVO5.2 is approximately 1016.6cm2 / 157.6inch2. The Denton 1S requires 41% less surface area than the EVO5.2 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Denton 1S weighs 6.81kg / 15lbs and the Wharfedale EVO5.2 weighs 15.05kg / 33.1lbs. This makes the EVO5.2 121% heavier than the Denton 1S.
Here is a comparison of how Denton 1S and EVO5.2's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale Denton 1S?
Here are the items that are included inside the box of Denton 1S:
- 2 Bookshelf loudspeakers
- 2 Grilles
- User's Manual
What's in the Box of Wharfedale EVO5.2?
Here are the items that come with the EVO5.2:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Height |
331mm
vs
497mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
602cm2
vs
1016cm2
|
Takes less floor space |
 Price per pair* |
999USD
vs
1799USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
120 watts
vs
100 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Low Frequency Response |
44 Hz
vs
50 Hz
|
Generates deeper bass |
 High Frequency Response |
24k Hz
vs
20k Hz
|
Generates higher frequency |
| General |
Wharfedale Denton 1S |
Wharfedale EVO5.2 |
| Brand |
Wharfedale |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
30-100 watts |
25-120 watts |
| Sensitivity |
88 dB |
88 dB |
| Impedance |
8 ohms |
4 ohms |
| Impedance |
n/a |
3.2 ohms |
| Frequency Response |
50-20k Hz |
44-24k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Polypropylene |
woven Kevlar |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1.375" |
| Tweeter Type |
Soft-Dome |
AMT (Ribbon) |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
2" |
| Crossover Frequency |
n/a |
800 Hz and 4.3 kHz |
| Firing Direction |
n/a |
bottom |
Physical Specs |
|
|
| Height |
331.0mm (13") |
497.0mm (19.6") |
| Width |
237.0mm (9.3") |
260.0mm (10.2") |
| Depth |
254.0mm (10") |
391.0mm (15.4") |
| Weight |
6.81kg (15lbs) |
15.05kg (33.1lbs) |
| Enclosure |
|
Bass Reflex |
| Finish |
MDF/Polymer |
MDF/Wood-veneer |
| Available Colors |
Black |
Walnut, Grey. Black, White |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
26-28" |
18-22" |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Wharfedale EVO5.2 costs roughly 1.8x what Wharfedale Denton 1S does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | Wharfedale EVO5.2 digs deeper - 44Hz against 50Hz. A subwoofer would even that out. |
| Amplifier needs | evenly matched | Similar sensitivity (88dB vs 88dB) - both want much the same power. |
| Amplifier match | A | Wharfedale Denton 1S is the easier load at 8 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | evenly matched | Similar power handling (100W vs 120W). |
| Size | depends | Wharfedale Denton 1S is easier to place; Wharfedale EVO5.2 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Neither adds bi-amping, a sub output or height drivers. Wharfedale EVO5.2 sits in a wider range (5 models), so a matched surround system is easier later. |
| Price | A | Wharfedale Denton 1S is cheaper - $999 against $1,799, about 44% less; arguably a different class. |
A Wharfedale Denton 1S B Wharfedale EVO5.2
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 50Hz anyway, which makes the cheaper Wharfedale Denton 1S much easier to justify. In a large or open-plan room, Wharfedale EVO5.2 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Wharfedale Denton 1S is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
