In this review, we will be comparing Debut 3.0 DF53 and A190, two Passive Floor-standing speakers from ELAC and JBL.
Let's have a brief look at the main features
of ELAC Debut 3.0 DF53 and JBL Stage A190 first before getting into our more
detailed comparison.
| Key Specs | ELAC Debut 3.0 DF53 | JBL Stage A190 |
|---|
| Brand | ELAC
Germany · founded 1926 | JBL
United States · founded 1946 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" HDI (High Definition Imaging) waveguide |
|---|
| Midrange | 5.25" | — |
|---|
| Woofer | 2 x 5.25" Aramid fiber | 2 x 8" Polycellulose |
|---|
| Frequency response | 38 to 38K Hz | 36-40k Hz |
|---|
| Sensitivity | 87.5 dB | 91 dB |
|---|
| Impedance | 4 ohms | 6 ohms |
|---|
| Power range | 30 - 150 watts | 20-225 watts |
|---|
| Weight | 15.73kg / 34.6lbs | 22.61kg / 49.7lbs |
|---|
| Dimensions (H x W x D) | 40-9/16" x 8-11/16" x 11-5/8"
1031.0 x 221.0 x 296.0mm | 43-15/16" x 13-1/4" x 17-1/2"
1117.0 x 337.0 x 445.0mm |
|---|
What size room are the ELAC Debut 3.0 DF53 and JBL Stage A190 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
ELAC Debut 3.0 DF53 |
JBL Stage A190 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Debut 3.0 DF53 is a 3-way design whereas the A190 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
ELAC Debut 3.0 DF53JBL Stage A190
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
ELAC Debut 3.0 DF53 |
JBL Stage A190 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 5.25-inch
|
2 x 8-inch
|
Debut 3.0 DF53 features a 1" Hard-Dome Tweeter, a 5.25" Midrange and 2 x 5.25" Aramid fiber Woofer with a Crossover frequency at 500Hz and 2100Hz. On the other hand, the A190 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 8" Polycellulose Woofer.
Frequency Response
Debut 3.0 DF53 has a frequency range of 38 to 38K Hz whereas A190 has a frequency range of 36-40k Hz. With a minimum frequency of 36Hz, the A190 can go slightly deeper then the Debut 3.0 DF53's min frequency of 38Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Debut 3.0 DF53 is a 4 ohms speaker compared to the A190 which has a nominal impedance of 6 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Debut 3.0 DF53 can provide this impedance level.
These two speakers also have different sensitivity levels. Debut 3.0 DF53 sensitivity is rated at 87.5 dB and the A190's is rated at 91 dB. This 3 dB difference makes the JBL Stage A190 a more sensitive speaker compared to ELAC Debut 3.0 DF53, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
A190 can handle a max power of 225 watts RMS, whereas Debut 3.0 DF53 has a max power handling value of 150 watts RMS, 75 watts less than the A190.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
A190 features 5-Way post posts which make bi-amping or bi-wiring possible. Debut 3.0 DF53 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
ELAC Debut 3.0 DF53's 5-Way post terminals
ELAC Debut 3.0 DF53 Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Debut 3.0 DF53's and JBL Stage A190's external dimensions. ELAC Debut 3.0 DF53 has external dimensions of 1031.0 x 221.0 x 296.0mm (40-9/16-inch x 8-11/16-inch x 11-5/8-inch) whereas JBL Stage A190 has external dimensions of 1117.0 x 337.0 x 445.0mm (43-15/16 x 13-1/4 x 17-1/2inch).
JBL Stage A190 is clearly the larger of the two speakers. Its body is 116mm wider, 86mm taller and 149mm deeper than ELAC Debut 3.0 DF53.

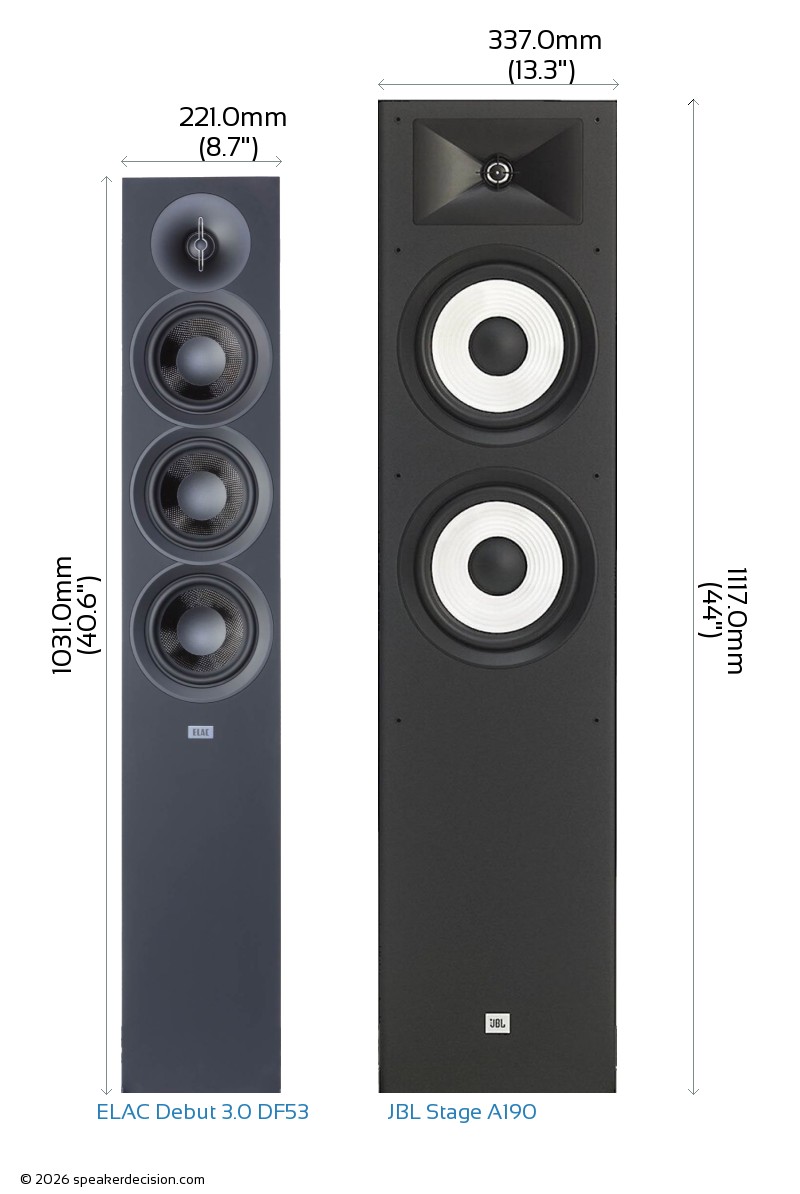

Below you can see the front view size comparison of ELAC Debut 3.0 DF53 and JBL Stage A190 in scale.
Comparison image of ELAC Debut 3.0 DF53 and JBL Stage A190 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the ELAC Debut 3.0 DF53 is approximately 654.2cm2 / 101.4inch2 and base area of the JBL Stage A190 is approximately 1499.7cm2 / 232.5inch2. The Debut 3.0 DF53 requires 56% less surface area than the A190 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The ELAC Debut 3.0 DF53 weighs 15.73kg / 34.6lbs and the JBL Stage A190 weighs 22.61kg / 49.7lbs. This makes the A190 44% heavier than the Debut 3.0 DF53.
Here is a comparison of how Debut 3.0 DF53 and A190's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of JBL Stage A190?
Here are the items that come with the A190:
- Floorstanding loudspeaker
- Grille
- 4 Outriggers
- 4 Rubber feet
- 4 Spikes
- 8 Screws
- 2 Terminal jumpers (pre-installed)
- Owners Manual
- Warranty Card
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Height |
1031mm
vs
1117mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
654cm2
vs
1499cm2
|
Takes less floor space |
 Price per pair* |
899USD
vs
1000USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
225 watts
vs
150 watts
|
Handle more power from your amplifier |
 Sensitivity |
91 dB
vs
88 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
6 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Woofer Size |
8 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
36 Hz
vs
38 Hz
|
Generates deeper bass |
 High Frequency Response |
40k Hz
vs
38k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
| General |
ELAC Debut 3.0 DF53 |
JBL Stage A190 |
| Brand |
ELAC |
JBL |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
30 - 150 watts |
20-225 watts |
| Sensitivity |
87.5 dB |
91 dB |
| Impedance |
4 ohms |
6 ohms |
| Impedance |
4.2 ohms |
n/a |
| Frequency Response |
38 to 38K Hz |
36-40k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
8" |
| Woofer Composition |
Aramid fiber |
Polycellulose |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
HDI (High Definition Imaging) waveguide |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
No |
| Crossover Frequency |
500Hz and 2100Hz |
n/a |
| Firing Direction |
rear |
n/a |
Physical Specs |
|
|
| Height |
1031.0mm (40.6") |
1117.0mm (44") |
| Width |
221.0mm (8.7") |
337.0mm (13.3") |
| Depth |
296.0mm (11.7") |
445.0mm (17.5") |
| Weight |
15.73kg (34.6lbs) |
22.61kg (49.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain Vinyl |
MDF, Vinyl |
| Available Colors |
Black,Walnut |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
3 Years |
5 Years |
| Labor Warranty |
3 Years |
5 Years |
A generation apart: ELAC Debut 3.0 DF53 is the newer design, against a 2018 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | evenly matched | Much the same reach (38Hz vs 36Hz). |
| Amplifier needs | B | JBL Stage A190 is more sensitive (91dB vs 88dB), so it goes louder on the same amplifier. |
| Amplifier match | B | JBL Stage A190 is the easier load at 6 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | B | JBL Stage A190 takes more power (225W vs 150W) - more in hand in a big room. |
| Size | depends | ELAC Debut 3.0 DF53 is easier to place; JBL Stage A190 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | B | JBL Stage A190: bi-amping. JBL Stage A190 sits in a wider range (10 models), so a matched surround system is easier later. |
| Price | A | ELAC Debut 3.0 DF53 is cheaper - $899 against $1,000, about 10% less. |
A ELAC Debut 3.0 DF53 B JBL Stage A190
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
JBL Stage A190 leads across most of the measured areas for a fairly modest premium, which makes it the easier pick if the budget stretches. ELAC Debut 3.0 DF53 is the one to take if it does not. In a large or open-plan room, JBL Stage A190 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, ELAC Debut 3.0 DF53 is the easier speaker to get right. If your amplifier is modest, vintage or valve-based, JBL Stage A190 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
