MartinLogan Dynamo IW-O vs MartinLogan Dynamo 600X Detailed Comparison

MartinLogan Dynamo IW-O vs MartinLogan Dynamo 600X Comparison

Subwoofer to replace

Change

MartinLogan Dynamo IW-O

Passive In-wall | 30-190Hz

Check price atAmazon›

Change

MartinLogan 600X

Powered Subwoofer | 27-200 Hz

Check price atAmazon›

MartinLogan Dynamo I...

Check price atAmazon›

MartinLogan 600X

Check price atAmazon›

MartinLogan Dynamo I...

See at AMAZON

MartinLogan 600X

See at AMAZON

MartinLogan Dynamo IW-O vs MartinLogan 600X Speaker Comparison

In this review, we will be comparing two different types of subwoofers by MartinLogan. MartinLogan Dynamo IW-O is a In-wall speaker whereas the Dynamo 600X is a Subwoofer speaker.

Let's have a brief look at the main features of MartinLogan Dynamo IW-O and MartinLogan 600X first before getting into our more detailed comparison.

Key Specs	MartinLogan Dynamo IW-O	MartinLogan 600X
Brand	MartinLogan United States · founded 1982	MartinLogan United States · founded 1982
Driver	2 x 8"	10" Polypropylene
Amplifier	—	120 watts RMS
Enclosure	—	Ported
Frequency response	30-190Hz	27-200 Hz
Impedance	8 ohms	—
App control	—	Yes
Weight	6.80kg / 15lbs	15.91kg / 35lbs
Dimensions (H x W x D)	19.11" x 10.73" x 4.1" 485.4 x 272.5 x 104.1mm	16-5/16" x 14-1/2" x 16-1/2" 415.0 x 369.0 x 420.0mm

MartinLogan Dynamo IW-O

MartinLogan 600X

Woofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.

Drivers

The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.MartinLogan Dynamo IW-O and MartinLogan 600X have a totally different setup: the MartinLogan Dynamo IW-O features 2 x 8-inch drivers whereas the Dynamo 600X features 1 x 10-inch drivers.

Frequency Response

Dynamo IW-O has a frequency range of 30-190Hz whereas Dynamo 600X has a frequency range of 27-200 Hz. With a minimum frequency of 27Hz, the Dynamo 600X can go slightly deeper then the Dynamo IW-O's min frequency of 30Hz.

Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

MartinLogan Dynamo IW-O

MartinLogan 600X

Min

Average

Max

High Frequency

In-wall Speakers

MartinLogan Dynamo IW-O

MartinLogan 600X

Min

Average

Max

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Dynamo IW-O's and MartinLogan 600X's external dimensions. MartinLogan Dynamo IW-O has external dimensions of 485.4 x 272.5 x 104.1mm () whereas MartinLogan 600X has external dimensions of 415.0 x 369.0 x 420.0mm (16-5/16 x 14-1/2 x 16-1/2inch).

MartinLogan Dynamo IW-O is 96.5mm narrower and 315.9mm less deeper than MartinLogan 600X but it is also 70.4mm taller.

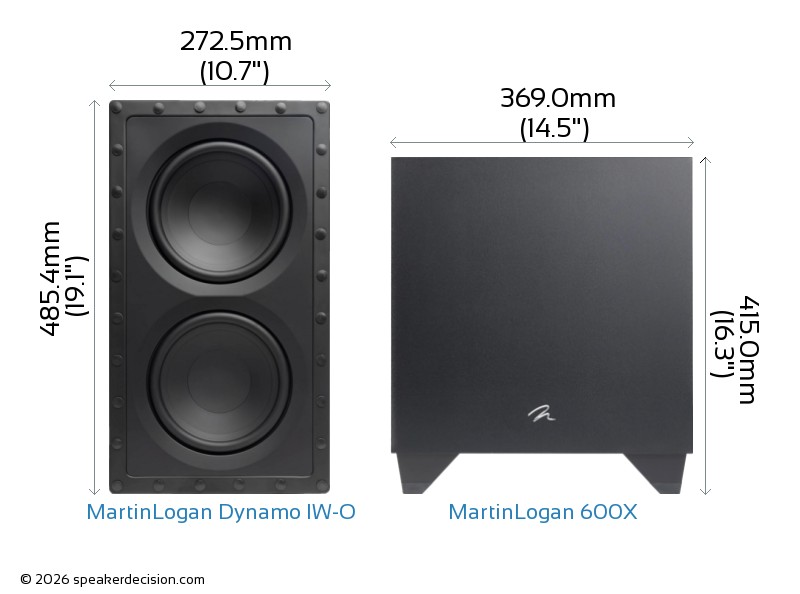

Below you can see the front view size comparison of MartinLogan Dynamo IW-O and MartinLogan 600X in scale.

Comparison image of MartinLogan Dynamo IW-O and MartinLogan 600X Size and External Dimensions

What's in the Box of MartinLogan Dynamo IW-O?

Here are the items that are included inside the box of Dynamo IW-O:

In-wall subwoofer
Grille
Cutout Template

What's in the Box of MartinLogan 600X?

Here are the items that come with the Dynamo 600X:

Powered subwoofer
6.5-feet AC power cord
User-feets Manual

Reasons to choose MartinLogan Dynamo IW-O over MartinLogan Dynamo 600X

Number of Woofers	2 vs 1	More woofers
Base Surface Area	283cm² vs 1549cm²	Takes less floor space

Reasons to choose MartinLogan Dynamo 600X over MartinLogan Dynamo IW-O

Speaker Type	Powered vs Passive	Built-in amplifier
Woofer Size	10 inches vs 8 inches	Larger woofer
Low Frequency Response	27 Hz vs 30 Hz	Generates deeper bass
High Frequency Response	200 Hz vs 190 Hz	Generates higher frequency
Height	415mm vs 485mm	Easier to fit in smaller spaces
Price per pair*	700USD vs 1398USD	costs less (*prices may change depending on the seller, location and time)

Size, drawn to scale

Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.

One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.

MartinLogan 600X needs about 446% more floor area. MartinLogan 600X stands 316mm further into the room. MartinLogan Dynamo IW-O is 70mm taller.

MartinLogan Dynamo IW-O vs MartinLogan 600X Specs Table

Detailed comparison of specifications

General	MartinLogan Dynamo IW-O	MartinLogan Dynamo 600X
Brand	MartinLogan	MartinLogan
Speaker Type	Passive Subwoofer	Powered Subwoofer
Impedance	8 ohms	n/a
Frequency Response	30-190Hz	27-200 Hz
Amplifier
Watts RMS (Continuous)	n/a	120-watt RMS
Drivers
Woofer Quantity	2	1
Woofer Size	8"	10"
Woofer Composition		Polypropylene
Woofer Surround Material	Thermal Plastic Rubber (TPR)	n/a
Tweeter Size	-	-
Aimable Tweeter	No	No
Midrange Driver	No	No
Firing Direction	n/a	bottom
Physical Specs
Height	485.4mm (19.1")	415.0mm (16.3")
Width	272.5mm (10.7")	369.0mm (14.5")
Depth	104.1mm (4.1")	420.0mm (16.5")
Weight	6.80kg (15lbs)	15.91kg (35lbs)
Enclosure		Bass reflex
Available Colors	n/a	Satin Black
Grille	n/a	Yes
Moisture Resistancy	No	No
Connections
Biamp Inputs	No	n/a
Other
Parts Warranty	5 Years	3 Yrs w/ Registration
Labor Warranty	5 Years	3 Yrs w/ Registration

Verdict

Different price classes - MartinLogan Dynamo IW-O costs roughly 2x what MartinLogan 600X does. Before paying it, read the note below about two smaller subwoofers.

Area	Better	Why
Bass depth	B	MartinLogan 600X goes deeper - 27Hz against 30Hz. A real difference, though most music has little content below 30Hz.
Driver area	A	MartinLogan Dynamo IW-O moves more air: 2 x 8" against 10" is 1.28x the cone area, not the 1.13x the diameters suggest. More area means the same output with less excursion, and less distortion with it.
Cabinet size	depends	MartinLogan Dynamo IW-O is about 79% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier.
Warranty	A	MartinLogan Dynamo IW-O carries 5 years on parts against 3 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line.
Price	B	MartinLogan 600X costs less - $700 against $1,398, about 50% less.

A MartinLogan Dynamo IW-O B MartinLogan 600X
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

MartinLogan Dynamo IW-O is ahead, but on only 1 of the measured areas, and it costs about 100% more. MartinLogan 600X is the sensible buy unless your room is large enough to need the extra. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $700 each, two MartinLogan 600X cost about $1,400 against $1,398 for one of the other, which is worth a thought. If placement is the constraint - a corner, behind a sofa, under a desk - MartinLogan Dynamo IW-O is the one that will actually go there, and a well-placed small subwoofer beats a badly-placed big one every time.

One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
