In this review, we will be comparing EVO4.1 and Reva 2, two Passive Bookshelf speakers by Wharfedale
Let's have a brief look at the main features
of Wharfedale EVO4.1 and Wharfedale Reva 2 first before getting into our more
detailed comparison.
Wharfedale EVO4.1 Key Specs
- 2-way Design
- 1.18x2.36" AMT (Ribbon) Tweeter
- 5" Kevlar Woofer
- 64-22k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-100watts
- Weight:7.80kg
- Dimensions (H x W x D): 335.0" x 8.2" x 11.6"( 335.0 x 210.0 x 295.0mm )
Wharfedale Reva 2 Key Specs
- 2-way Design
- 1" Dome Tweeter
- 5" Woven Glass Fiber Woofer
- 48-20k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-80watts
- Weight:7.82kg
- Dimensions (H x W x D): 358.0" x 7-7/8" x 12-13/16"( 358.0 x 201.0 x 326.0mm )
What size room are the Wharfedale EVO4.1 and Wharfedale Reva 2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO4.1 |
Wharfedale Reva 2 |
| Near-field |
Average |
Average |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
Bad |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO4.1 and Wharfedale Reva 2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both EVO4.1 and Reva 2 are 2-way speakers.
| Driver |
Wharfedale EVO4.1 |
Wharfedale Reva 2 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.18x2.36-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5-inch
|
1 x 5-inch
|
EVO4.1 features a 1.18x2.36" AMT (Ribbon) Tweeter and 1 x 5" Kevlar Woofer . On the other hand, the Reva 2 features a 1" woven textile Dome Tweeter and 1 x 5" Woven Glass Fiber Woofer .
Frequency Response
EVO4.1 has a frequency range of 64-22k Hz whereas Reva 2 has a frequency range of 48-20k Hz. With a minimum frequency of 48Hz, the Reva 2 can go significantly deeper on the low side and provide stronger bass compared to the EVO4.1's min frequency of 64Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO4.1 and Reva 2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. EVO4.1 sensitivity is rated at 87 dB and the Reva 2's is at 86 dB. This 1 dB difference makes the Wharfedale EVO4.1 a more sensitive speaker compared to Wharfedale Reva 2, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO4.1 can handle a max power of 100 watts RMS from the amp the whereas Reva 2 has a max power handling value of 80 watts RMS, 20 watts less than the EVO4.1.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both EVO4.1 and Reva 2 features dual binding post speaker terminals for bi-amping or bi-wiring.
Wharfedale EVO4.1's Post terminals allows Bi-amping or bi-wiring
Wharfedale Reva 2's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both EVO4.1 and Reva 2 have bottom firing ports.
Physical Specs

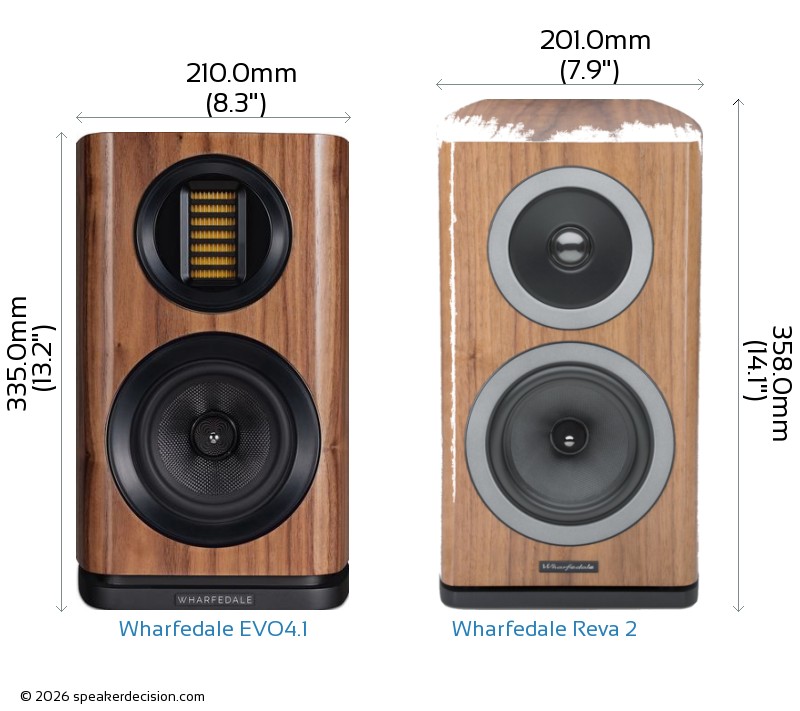

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO4.1's and Wharfedale Reva 2's external dimensions. Wharfedale EVO4.1 has external dimensions of 335.0 x 210.0 x 295.0mm ( 13.1 x 8.2 x 11.6inch) whereas Wharfedale Reva 2 has external dimensions of 358.0 x 201.0 x 326.0mm ( 14-1/16 x 7-7/8 x 12-13/16inch) .
Wharfedale EVO4.1 is 23mm shorter and 31mm less deeper than Wharfedale Reva 2 but it is also 9mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO4.1 is approximately 619.5cm2 / 96.0inch2 and base area of the Wharfedale Reva 2 is approximately 655.3cm2 / 101.6inch2. The EVO4.1 requires 5% less surface area than the Reva 2 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO4.1 weighs 7.80kg / 17.2lbs and the Wharfedale Reva 2 weighs 7.82kg / 17.2lbs. This makes the Reva 2 0% heavier than the EVO4.1.
Here is a comparison of how EVO4.1 and Reva 2's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO4.1?
Here are the items that are included inside the box of EVO4.1:
2 Bookshelf loudspeakers 2 Grilles 4 Jumper-bars (pre-installed) 8 Self-adhesive rubber feet Pair of white cloth gloves User Manual
What's in the Box of Wharfedale Reva 2?
Here are the items that come with the Reva 2:
2 Bookshelf loudspeakers2 Grilles (pre-installed)8 Self-adhesive rubber feet4 Jumper bars (pre-installed)Pair of white glovesUser-feets Manual
 Max Input Power |
100 watts
vs
80 watts
|
Handle more power from your amplifier |
 Sensitivity |
87 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 High Frequency Response |
22k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
335mm
vs
358mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
619cm2
vs
655cm2
|
Takes less floor space |
 Low Frequency Response |
48 Hz
vs
64 Hz
|
Generates deeper bass |
| General |
Wharfedale EVO4.1 |
Wharfedale Reva 2 |
| Brand |
Wharfedale |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-100 watts |
20-80 watts |
| Sensitivity |
87 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
3.5 ohms |
n/a |
| Frequency Response |
64-22k Hz |
48-20k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5" |
5" |
| Woofer Composition |
Kevlar |
Woven Glass Fiber |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.18x2.36" |
1" |
| Tweeter Type |
AMT (Ribbon) |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
bottom |
bottom |
Physical Specs |
|
|
| Height |
335.0mm (13.2") |
358.0mm (14.1") |
| Width |
210.0mm (8.3") |
201.0mm (7.9") |
| Depth |
295.0mm (11.6") |
326.0mm (12.8") |
| Weight |
7.80kg (17.2lbs) |
7.82kg (17.2lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
Wood composite laminate |
| Available Colors |
Walnut,Black,White |
Walnut, Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-26" |
24" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
