Wharfedale D310 vs Revel M126Be Comparison

x
Speaker to replace
Change

Wharfedale D310

Passive Bookshelf | 65-20k Hz

Wharfedale D310
CHECK PRICE
Change

Revel M126Be

Passive Bookshelf | 54-44k Hz

Revel PerformaBe M126Be
CHECK PRICE
Wharfedale D310 Wharfedale D310
See at AMAZON
Revel M126Be Revel M126Be
See at AMAZON
Wharfedale D310
See at AMAZON
Revel M126Be
See at AMAZON
Wharfedale D310 vs Revel M126Be Speaker Comparison

In this review, we will be comparing D310 and M126Be, two Passive Bookshelf speakers from Wharfedale and Revel.

Let's have a brief look at the main features of Wharfedale D310 and Revel M126Be first before getting into our more detailed comparison.

Wharfedale D310 Key Specs

  • 2-way Design
  • 1" Soft-Dome Tweeter
  • 4" Woven Kevlar Woofer
  • 65-20k Hz Frequency Response
  • 86 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:20-60watts
  • Weight:4.00kg
  • Dimensions (H x W x D): 266.0" x 6-1/8" x 8-13/16"( 266.0 x 156.0 x 224.0mm )

Revel M126Be Key Specs

  • 2-way Design
  • 1" Hard-Dome Tweeter
  • 6.5" DCC Aluminum Woofer
  • 54-44k Hz Frequency Response
  • 86 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:50-150watts
  • Weight:10.00kg
  • Dimensions (H x W x D): 388.0" x 8-5/16" x 10-5/16"( 388.0 x 212.0 x 262.0mm )

What size room are the Wharfedale D310 and Revel M126Be speakers good for?

The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:

Listening Environment* Wharfedale D310 Revel M126Be
Near-field Good Poor
Small Room Good Average
Mid-size Room Average Good
Large Room Poor Average
Very Large Room No way Poor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

In the following sections, we will get into more detail in order to better understand how the Wharfedale D310 and Revel M126Be compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.


Drivers

Both D310 and M126Be are 2-way speakers.

Driver Wharfedale D310 Revel M126Be
Driver Setup 2-way 2-way
Tweeter 1-inch 1-inch
Midrange - -
Woofer 1 x 4-inch 1 x 6.5-inch

D310 features a 1" Soft-Dome Tweeter and 1 x 4" Woven Kevlar Woofer . On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer .

Frequency Response

D310 has a frequency range of 65-20k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 54Hz, the M126Be can go significantly deeper on the low side and provide stronger bass compared to the D310's min frequency of 65Hz.

Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.

Low Frequency

Bookshelf Speakers

D310
M126Be
Min
Average
Max
High Frequency

Bookshelf Speakers

Wharfedale D310
Revel M126Be
Min
Average
Max

None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

D310 and M126Be have the same Impedance of 8 ohms and their sensitivity is also same at 86 dB.

Sensitivity

Bookshelf Speakers

D310
M126Be
Min
Average
Max

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.

D310 can handle a max power of 150 watts RMS from the amp the whereas D310 has a max power handling value of 60 watts RMS , 90 watts less than the M126Be.

Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters such as Impedance, sensitivity and system efficiencies.

Input Type and Bi-Amping / Bi-Wiring

D310 features Binding post type posts and M126Be has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.

Wharfedale D310 Terminals
Wharfedale D310's Post terminals

Cabinet Type and Port Position

D310 has a bottom firing port whereas M126Be has a rear firing ports. Wharfedale D310's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M126Be with its rear-firing port.

Physical Specs

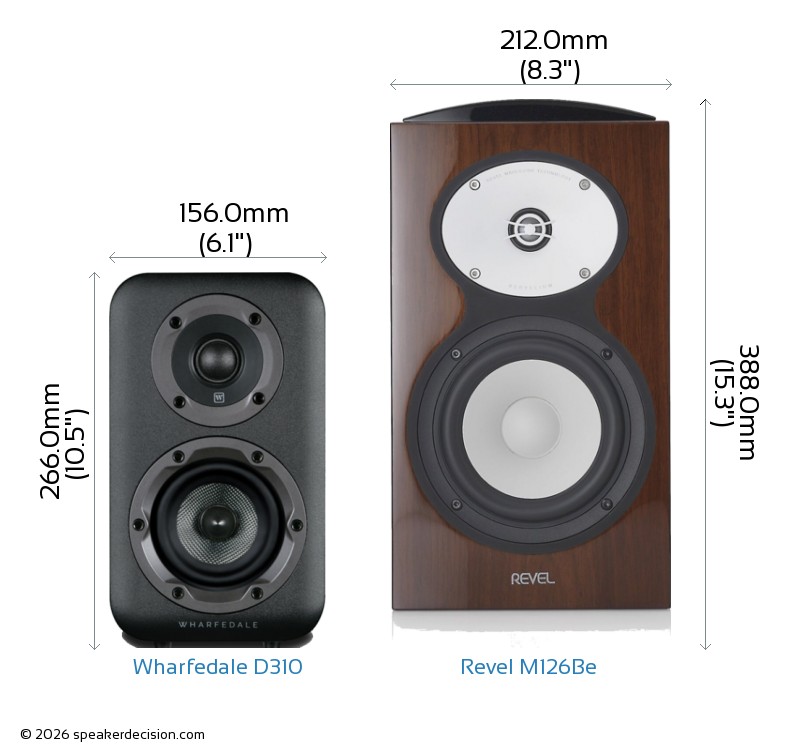

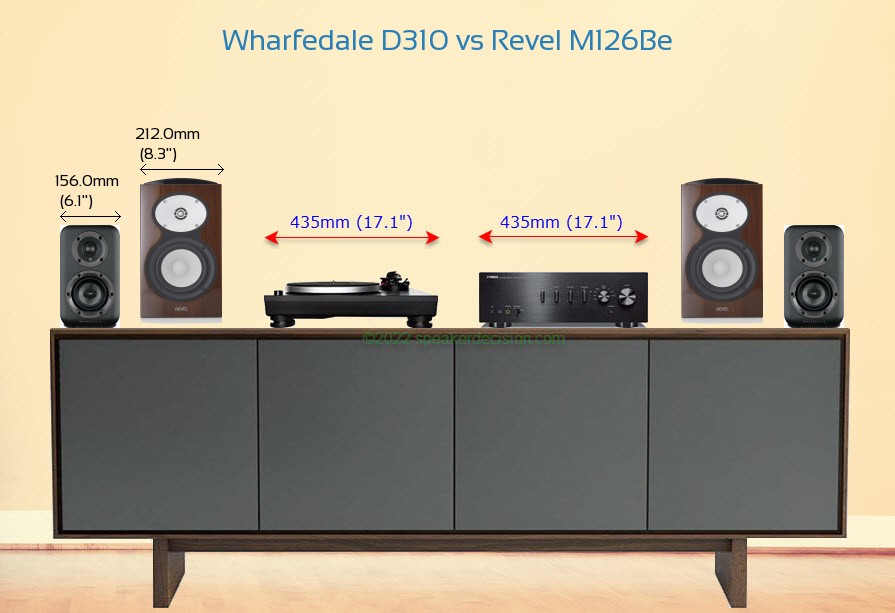

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale D310's and Revel M126Be's external dimensions. Wharfedale D310 has external dimensions of 266.0 x 156.0 x 224.0mm ( 10-7/16 x 6-1/8 x 8-13/16inch) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm ( 15-1/4 x 8-5/16 x 10-5/16inch) .

Revel M126Be is clearly the larger of the two speakers. Its body is 56mm wider, 122mm taller and 38mm deeper than Wharfedale D310.

Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base surface area of the Wharfedale D310 is approximately 349.4cm2 / 54.2inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The D310 requires 37% less surface area than the M126Be which gives it a small advantage on placement in tight spaces.

Weight Comparison

The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale D310 weighs 4.00kg / 8.8lbs and the Revel M126Be weighs 10.00kg / 22lbs. This makes the M126Be 150% heavier than the D310.

Here is a comparison of how D310 and M126Be's weights compare with the average, max and min weights in Passive Bookshelf class.

Weight
All Bookshelf Speakers
Wharfedale D310
Revel M126Be
Min
Average
Max

What's in the Box of Wharfedale D310?

Here are the items that are included inside the box of D310:
  • 2 Bookshelf loudspeakers
  • 2 Tweeter grilles (pre-installed)
  • 2 Woofer grilles (pre-installed)
  • User-feets Manual
  • Installation Guide
  • What's in the Box of Revel M126Be?

    Here are the items that come with the M126Be:
  • Bookshelf loudspeaker
  • Grille
  • Foam port plug
  • Owners Manual

  • Reasons to choose Wharfedale D310 over Revel PerformaBe M126Be
    Height 266mm vs 388mm Easier to fit in smaller spaces
    Base Surface Area 349cm2 vs 555cm2 Takes less floor space
    Price per pair* 199USD vs 4400USD costs less (*prices may change depending on the seller, location and time)

    Reasons to choose Revel PerformaBe M126Be over Wharfedale D310

    Max Input Power 150 watts vs 60 watts Handle more power from your amplifier
    Woofer Size 6.5 inches vs 4 inches Larger woofer
    Low Frequency Response 54 Hz vs 65 Hz Generates deeper bass
    High Frequency Response 44k Hz vs 20k Hz Generates higher frequency
    Wharfedale D310 vs Revel M126Be Specs Table
    Detailed comparison of specifications
    General Wharfedale D310 Revel PerformaBe M126Be
    Brand Wharfedale Revel
    Speaker Type Compact bookshelf speakers Bookshelf speakers
    Power Range 20-60 watts 50-150 watts
    Sensitivity 86 dB 86 dB
    Impedance 8 ohms 8 ohms
    Impedance 3.6 ohms n/a
    Frequency Response 65-20k Hz 54-44k Hz
    Drivers
    Woofer Quantity 1 1
    Woofer Size 4" 6.5"
    Woofer Composition Woven Kevlar DCC Aluminum
    Woofer Surround Material Foamed Polyether Rubber
    Tweeter Size 1" 1"
    Tweeter Type Soft-Dome Hard-Dome
    Aimable Tweeter No No
    Midrange Driver No No
    Firing Direction bottom rear
    Physical Specs
    Height 266.0mm (10.5") 388.0mm (15.3")
    Width 156.0mm (6.1") 212.0mm (8.3")
    Depth 224.0mm (8.8") 262.0mm (10.3")
    Weight 4.00kg (8.8lbs) 10.00kg (22lbs)
    Enclosure Bass Reflex Bass reflex
    Finish MDF/Wood-grain vinyl Wood/Lacquer
    Available Colors Rosewood, Black, White, Walnut Walnut,Black,White,Silver
    Mounting Bracket No No
    Recommended Stand Height 22-26" 22-26"
    Grille Yes Yes
    Moisture Resistancy No No
    Connections
    Biamp Inputs No No
    Other
    Parts Warranty 5 Years 5 Years
    Labor Warranty 5 Years 5 Years
